VSH XPress Carbon reduced T-piece (3 x press)

VSH XPress Carbon reduced T-piece (3 x press)

C1415

The VSH XPress C1415 is a carbon steel reduced T-piece with 3 press ends. By using VSH XPress in your piping installation you can install in a quick, easy and clean way. VSH XPress provides a complete piping system suitable for every conceivable application.

  • insert stop: stop edge for pipe end
  • provided with all relevant approvals
  • Leak Before Pressed-function
  • clear identification on fitting of material and dimension

applications

heating cooling compressed air solar energy sprinkler vacuum

solutions

building installations shipbuilding fire protection

approvals

ATG Bureau Veritas CNBOP DNV-GL Lloyds Register LPCB QB (CSTBat) RINA RISE SBSC SPF UL ULc VdS
item number size weight dimensions packaging gtin
6202768 12x12x15 0.05 kg 61x54x23 mm bag (10 pce) 08711985096774
6202561 15x15x12 0.06 kg 70x53x23 mm bag (10 pce) 08711985096378
6202781 15x15x22 0.08 kg 70x63x32 mm bag (10 pce) 08711985096811
6202570 18x18x12 0.07 kg 73x52x27 mm bag (10 pce) 08711985096392
6202581 18x18x15 0.08 kg 73x55x27 mm bag (10 pce) 08711985096415
6202779 15x15x18 0.07 kg 70x57x27 mm bag (10 pce) 08711985096798
6202790 18x18x22 0.09 kg 73x63x32 mm bag (10 pce) 08711985096835
6202592 22x22x12 0.09 kg 79x60x32 mm bag (10 pce) 08711985096439
6202603 22x22x15 0.1 kg 79x63x32 mm bag (10 pce) 08711985096453
6202614 22x22x18 0.1 kg 79x63x32 mm bag (10 pce) 08711985096477
6202801 22x22x28 0.12 kg 79x71x38 mm bag (5 pce) 08711985096859
6202625 28x28x15 0.13 kg 90x62x38 mm bag (5 pce) 08711985139778
6202636 28x28x18 0.13 kg 90x64x38 mm bag (5 pce) 08711985096514
6202647 28x28x22 0.14 kg 90x67x38 mm bag (5 pce) 08711985139761
6202658 35x35x15 0.17 kg 103x66x45 mm bag (5 pce) 08711985139327
6202669 35x35x18 0.18 kg 103x67x45 mm bag (5 pce) 08711985139334
6202671 35x35x22 0.18 kg 103x71x45 mm bag (5 pce) 08711985116526
6202680 35x35x28 0.2 kg 103x76x45 mm bag (5 pce) 08711985139341
6202691 42x42x22 0.25 kg 120x73x54 mm bag (4 pce) 08711985096637
6202702 42x42x28 0.26 kg 120x78x54 mm bag (4 pce) 08711985096651
6202713 42x42x35 0.27 kg 120x85x54 mm bag (4 pce) 08711985096675
6202724 54x54x22 0.35 kg 142x79x65 mm bag (2 pce) 08711985096699
6202735 54x54x28 0.37 kg 142x84x65 mm bag (2 pce) 08711985096712
6202746 54x54x35 0.38 kg 142x91x65 mm bag (2 pce) 08711985096736
6202757 54x54x42 0.39 kg 142x100x65 mm bag (2 pce) 08711985096750
6340345 66.7x66.7x28 0.66 kg 198x89x83 mm bag (1 pce) 08711985292343
6340356 66.7x66.7x35 0.67 kg 198x96x83 mm bag (1 pce) 08711985292350
6340367 66.7x66.7x42 0.69 kg 198x107x83 mm bag (1 pce) 08711985292367
6340378 66.7x66.7x54 0.72 kg 198x116x83 mm bag (1 pce) 08711985292374
6207047 76.1x76.1x22 0.96 kg 230x84x95 mm bag (2 pce) 08711985258929
6207058 76.1x76.1x28 0.97 kg 230x104x95 mm bag (2 pce) 08711985258936
6207069 76.1x76.1x35 0.98 kg 230x109x95 mm bag (2 pce) 08711985258943
6207071 76.1x76.1x42 0.99 kg 230x124x95 mm bag (2 pce) 08711985258950
6206475 76.1x76.1x54 1.07 kg 230x143x95 mm bag (2 pce) 08711985182071
6340389 76.1x76.1x66.7 1.16 kg 252x147x95 mm bag (1 pce) 08711985292381
6209654 88.9x88.9x22 1.27 kg 260x92x110 mm bag (2 pce) 08711985258967
6209665 88.9x88.9x28 1.26 kg 260x111x110 mm bag (2 pce) 08711985258974
6209676 88.9x88.9x35 1.28 kg 260x119x110 mm bag (2 pce) 08711985258981
6209687 88.9x88.9x42 1.28 kg 260x132x110 mm bag (2 pce) 08711985258998
6209698 88.9x88.9x54 1.31 kg 260x150x110 mm bag (2 pce) 08711985257069
6340391 88.9x88.9x66.7 1.32 kg 256x154x110 mm bag (1 pce) 08711985292398
6206486 88.9x88.9x76.1 1.5 kg 260x164x110 mm bag (2 pce) 08711985182125
6209711 108x108x22 1.93 kg 310x101x133 mm bag (2 pce) 08711985259001
6209720 108x108x28 1.95 kg 310x121x133 mm bag (2 pce) 08711985259018
6209731 108x108x35 1.97 kg 310x129x133 mm bag (2 pce) 08711985259025
6209742 108x108x42 1.9 kg 310x142x133 mm bag (2 pce) 08711985259032
6209753 108x108x54 1.97 kg 310x161x133 mm bag (2 pce) 08711985259049
6209764 108x108x76.1 2.15 kg 310x175x133 mm bag (2 pce) 08711985259056
6206497 108x108x88.9 2.19 kg 310x184x133 mm bag (2 pce) 08711985182088
item number size d1 l1 z1 DN1 d2 l2 z2 DN2 d3 l3 z3 DN3
6202768 12x12x15 12 (DN10) 31 14 DN10 15 (DN12) 43 23 DN12 12 (DN10) 31 14 DN10
6202561 15x15x12 15 (DN12) 35 15 DN12 12 (DN10) 41 24 DN10 15 (DN12) 35 15 DN12
6202781 15x15x22 15 (DN12) 35 15 DN12 22 (DN20) 48 27 DN20 15 (DN12) 35 15 DN12
6202570 18x18x12 18 (DN15) 37 17 DN15 12 (DN10) 43 26 DN10 18 (DN15) 37 17 DN15
6202581 18x18x15 18 (DN15) 37 17 DN15 15 (DN12) 46 26 DN12 18 (DN15) 37 17 DN15
6202779 15x15x18 15 (DN12) 35 15 DN12 18 (DN15) 44 24 DN15 15 (DN12) 35 15 DN12
6202790 18x18x22 18 (DN15) 37 17 DN15 22 (DN20) 47 26 DN20 18 (DN15) 37 17 DN15
6202592 22x22x12 22 (DN20) 40 19 DN20 12 (DN10) 45 28 DN10 22 (DN20) 40 19 DN20
6202603 22x22x15 22 (DN20) 40 19 DN20 15 (DN12) 48 28 DN12 22 (DN20) 40 19 DN20
6202614 22x22x18 22 (DN20) 40 19 DN20 18 (DN15) 48 28 DN15 22 (DN20) 40 19 DN20
6202801 22x22x28 22 (DN20) 40 19 DN20 28 (DN25) 52 29 DN25 22 (DN20) 40 19 DN20
6202625 28x28x15 28 (DN25) 45 22 DN25 15 (DN12) 51 31 DN12 28 (DN25) 45 22 DN25
6202636 28x28x18 28 (DN25) 45 22 DN25 18 (DN15) 51 31 DN15 28 (DN25) 45 22 DN25
6202647 28x28x22 28 (DN25) 45 22 DN25 22 (DN20) 52 31 DN20 28 (DN25) 45 22 DN25
6202658 35x35x15 35 (DN32) 52 26 DN32 15 (DN12) 54 34 DN12 35 (DN32) 52 26 DN32
6202669 35x35x18 35 (DN32) 52 26 DN32 18 (DN15) 54 34 DN15 35 (DN32) 52 26 DN32
6202671 35x35x22 35 (DN32) 52 26 DN32 22 (DN20) 55 34 DN20 35 (DN32) 52 26 DN32
6202680 35x35x28 35 (DN32) 52 26 DN32 28 (DN25) 57 34 DN25 35 (DN32) 52 26 DN32
6202691 42x42x22 42 (DN40) 60 30 DN40 22 (DN20) 58 37 DN20 42 (DN40) 60 30 DN40
6202702 42x42x28 42 (DN40) 60 30 DN40 28 (DN25) 60 37 DN25 42 (DN40) 60 30 DN40
6202713 42x42x35 42 (DN40) 60 30 DN40 35 (DN32) 63 37 DN32 42 (DN40) 60 30 DN40
6202724 54x54x22 54 (DN50) 71 36 DN50 22 (DN20) 64 43 DN20 54 (DN50) 71 36 DN50
6202735 54x54x28 54 (DN50) 71 36 DN50 28 (DN25) 66 43 DN25 54 (DN50) 71 36 DN50
6202746 54x54x35 54 (DN50) 71 36 DN50 35 (DN32) 69 43 DN32 54 (DN50) 71 36 DN50
6202757 54x54x42 54 (DN50) 71 36 DN50 42 (DN40) 73 43 DN40 54 (DN50) 71 36 DN50
6340345 66.7x66.7x28 66.7 (DN65) 99 49 DN65 28 (DN25) 73 50 DN25 66.7 (DN65) 99 49 DN65
6340356 66.7x66.7x35 66.7 (DN65) 99 49 DN65 35 (DN32) 76 50 DN32 66.7 (DN65) 99 49 DN65
6340367 66.7x66.7x42 66.7 (DN65) 99 49 DN65 42 (DN40) 80 50 DN40 66.7 (DN65) 99 49 DN65
6340378 66.7x66.7x54 66.7 (DN65) 99 49 DN65 54 (DN50) 85 50 DN50 66.7 (DN65) 99 49 DN65
6207047 76.1x76.1x22 76.1 (DN65) 115 60 DN65 22 (DN20) 68 47 DN20 76.1 (DN65) 115 60 DN65
6207058 76.1x76.1x28 76.1 (DN65) 115 60 DN65 28 (DN25) 85 62 DN25 76.1 (DN65) 115 60 DN65
6207069 76.1x76.1x35 76.1 (DN65) 115 60 DN65 35 (DN32) 87 61 DN32 76.1 (DN65) 115 60 DN65
6207071 76.1x76.1x42 76.1 (DN65) 115 60 DN65 42 (DN40) 97 67 DN40 76.1 (DN65) 115 60 DN65
6206475 76.1x76.1x54 76.1 (DN65) 115 60 DN65 54 (DN50) 110 75 DN50 76.1 (DN65) 115 60 DN65
6340389 76.1x76.1x66.7 76.1 (DN65) 115 60 DN65 66.7 (DN65) 104 54 DN65 76.1 (DN65) 115 60 DN65
6209654 88.9x88.9x22 88.9 (DN80) 130 67 DN80 22 (DN20) 76 55 DN20 88.9 (DN80) 130 67 DN80
6209665 88.9x88.9x28 88.9 (DN80) 130 67 DN80 28 (DN25) 92 69 DN25 88.9 (DN80) 130 67 DN80
6209676 88.9x88.9x35 88.9 (DN80) 130 67 DN80 35 (DN32) 97 71 DN32 88.9 (DN80) 130 67 DN80
6209687 88.9x88.9x42 88.9 (DN80) 130 67 DN80 42 (DN40) 105 75 DN40 88.9 (DN80) 130 67 DN80
6209698 88.9x88.9x54 88.9 (DN80) 130 67 DN80 54 (DN50) 117 82 DN50 88.9 (DN80) 130 67 DN80
6340391 88.9x88.9x66.7 88.9 (DN80) 130 67 DN80 66.7 (DN65) 111 61 DN65 88.9 (DN80) 130 67 DN80
6206486 88.9x88.9x76.1 88.9 (DN80) 130 67 DN80 76.1 (DN65) 117 62 DN65 88.9 (DN80) 130 67 DN80
6209711 108x108x22 108 (DN100) 155 78 DN100 22 (DN20) 85 64 DN20 108 (DN100) 155 78 DN100
6209720 108x108x28 108 (DN100) 155 78 DN100 28 (DN25) 102 79 DN25 108 (DN100) 155 78 DN100
6209731 108x108x35 108 (DN100) 155 78 DN100 35 (DN32) 107 81 DN32 108 (DN100) 155 78 DN100
6209742 108x108x42 108 (DN100) 155 78 DN100 42 (DN40) 115 85 DN40 108 (DN100) 155 78 DN100
6209753 108x108x54 108 (DN100) 155 78 DN100 54 (DN50) 128 93 DN50 108 (DN100) 155 78 DN100
6209764 108x108x76.1 108 (DN100) 155 78 DN100 76.1 (DN65) 128 73 DN65 108 (DN100) 155 78 DN100
6206497 108x108x88.9 108 (DN100) 155 78 DN100 88.9 (DN80) 137 82 DN80 108 (DN100) 155 78 DN100

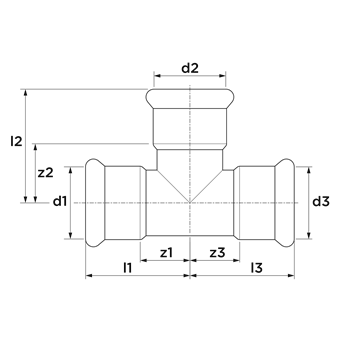

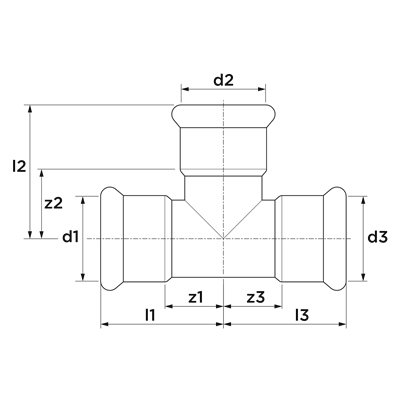

see above for the diagram related to these dimensions
color silver
materials steel (St 34.2 (1.0034))
finishing galvanised
manufacturer 8711985000009
shape T-piece, reducer (90º)
connection type press (M), Press (M)
sealing EPDM
product group fittings
ETIM class EC003025 Fitting with 3 connections
HS code 73079980
country of origin Netherlands
brand VSH
series XPress Carbon
type C1415
UNSPS 40174602
label value
ETIM class EC003025 Fitting with 3 connections
Material connection 1 Steel
Surface protection connection 1 Galvanic/electrolytic zinc plated
Material connection 2 Steel
Surface protection connection 2 Galvanic/electrolytic zinc plated
Material connection 3 Steel
Surface protection connection 3 Galvanic/electrolytic zinc plated
Model T-piece
Multi-part No
System-specific Yes
Connection 1 Press sleeve
Connection 2 Press sleeve
Connection 3 Press sleeve
Flange compression class PN 16
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
High tensile strength Yes
Max. operating pressure at 20 °C (imperial) 232.06psi
With sealing rings/gaskets No
With drain No
With de-aerator No
With thermal insulation No
With buffer stud Yes
Capped No
FM quality mark No
