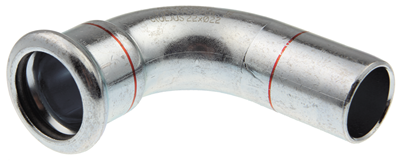

VSH XPress Carbon elbow 90° (press x male)

VSH XPress Carbon elbow 90° (press x male)

group: C1411

The VSH XPress C1411 is a carbon steel 90º elbow with a press and an tube end. By using VSH XPress in your piping installation you can install in a quick, easy and clean way. VSH XPress provides a complete piping system suitable for every conceivable application.

  • insert stop: stop edge for pipe end
  • provided with all relevant approvals
  • Leak Before Pressed-function
  • clear identification on fitting of material and dimension

applications

heating

heating

cooling

cooling

compressed air

compressed air

solar energy

solar energy

sprinkler

sprinkler

vacuum

vacuum

show all
show less

solutions

building installations

building installations

shipbuilding

shipbuilding

fire protection

fire protection

show all
show less

approvals

ATG

ATG

Bureau Veritas

Bureau Veritas

CNBOP

CNBOP

DNV-GL

DNV-GL

Lloyds Register

Lloyds Register

LPCB

LPCB

QB (CSTBat)

QB (CSTBat)

RINA

RINA

RISE

RISE

SBSC

SBSC

SPF

SPF

VdS

VdS

show all
show less
item number size weight dimensions packaging gtin
6201624 12xØ12 0.03 kg 41x52x20 mm bag (10 pce) 08711985095753
6201635 15xØ15 0.05 kg 49x60x23 mm bag (10 pce) 08711985095777
6201646 18xØ18 0.06 kg 54x65x27 mm bag (10 pce) 08711985095791
6201657 22xØ22 0.08 kg 62x74x32 mm bag (10 pce) 08711985095814
6201668 28xØ28 0.12 kg 75x84x38 mm bag (5 pce) 08711985140217
6201679 35xØ35 0.17 kg 89x98x45 mm bag (5 pce) 08711985139310
6201681 42xØ42 0.26 kg 108x119x54 mm bag (2 pce) 08711985095876
6201690 54xØ54 0.37 kg 132x143x65 mm bag (2 pce) 08711985095890
6340290 66.7xØ66.7 0.79 kg 178x199x83 mm bag (1 pce) 08711985292299
6208061 76.1xØ76.1 1.07 kg 193x215x95 mm bag (2 pce) 08711985162042
6208070 88.9xØ88.9 1.3 kg 223x248x110 mm bag (2 pce) 08711985162059
6208081 108xØ108 2 kg 270x299x133 mm bag (2 pce) 08711985162066
item number size d1 DN1 l1 z1 d2 DN2 l2 radius angle
6201624 12xØ12 12.0 DN10 35 18 12.0 DN10 42 15 90
6201635 15xØ15 15.0 DN12 41 21 15.0 DN12 49 18 90
6201646 18xØ18 18.0 DN15 45 25 18.0 DN15 51 22 90
6201657 22xØ22 22.0 DN20 51 30 22.0 DN20 58 27 90
6201668 28xØ28 28.0 DN25 61 38 28.0 DN25 66 34 90
6201679 35xØ35 35.0 DN32 72 46 35.0 DN32 76 42 90
6201681 42xØ42 42.0 DN40 87 57 42.0 DN40 93 51 90
6201690 54xØ54 54.0 DN50 105 70 54.0 DN50 111 65 90
6340290 66.7xØ66.7 66.7 DN65 145 95 66.7 DN65 157 80 90
6208061 76.1xØ76.1 76.1 DN65 155 100 76.1 DN65 168 92 90
6208070 88.9xØ88.9 88.9 DN80 179 116 88.9 DN80 193 107 90
6208081 108xØ108 108.0 DN100 216 139 108.0 DN100 233 130 90
drawing for product
color silver
materials steel (St 34.2 (1.0034))
finishing galvanised
manufacturer Aalberts integrated piping systems B.V. (VSH)
shape Bend (90º)
connection type press (M), tube end
sealing EPDM
product group fittings
ETIM class EC003024 Fitting with 2 connections
HS code 73079980
brand VSH
series XPress Carbon
type C1411
label value
ETIM class EC003024 Fitting with 2 connections
Material connection 1 Steel
Material quality connection 1 St 34.2 (1.0034)
Surface protection connection 1 Galvanic/electrolytic zinc plated
Material connection 2 Steel
Material quality connection 2 St 34.2 (1.0034)
Surface protection connection 2 Galvanic/electrolytic zinc plated
Shape Bend
Model 1-part
Bend angle 90°
Reducing No
Eccentric No
System specific Yes
Connection 1 Press sleeve
Contour code connection 1 M
Connection 2 Spigot/tube end
Main colour fitting Grey
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With buffer stud Yes
High tensile strength Yes
Medium temperature (continuous) -35°C - 135°C
Medium temperature (continuous) (imperial) -31°F - 275°F
Max. operating pressure at 20 °C 16bar
Max. operating pressure at 20 °C (imperial) 232.06psi
With thermal insulation No
With sealing rings/gaskets No
Capped No
With connection indicator No
With drain valve No
With de-aerator No
FM quality mark No
ULC quality mark No
UL quality mark No
DIN-CERTCO certificate No
With approval for TÜV No
DVGW quality mark for gas No
DVGW quality mark for water No
Certified according to NF 545 No
KIWA certified No
Gastec QA mark No
KOMO certified No
Gastec QA - AR 214 (H2) No
Type approval according to BBR/EKS No

accessories

item number description
6222205 VSH XPress Carbon+Stainless O-ring EPDM LBP 12
6212646 VSH XPress C+S insert depth marker 12-108
6211898 Deburrer for carbon and stainless steel tube 12-54
6206266 VSH SudoXPress Carbon galvanized tube 12x1.2 (l=3m)
6209929 VSH SudoXPress Carbon galvanized tube 12x1.2 (l=6m) small bundle
6205144 VSH SudoXPress Carbon galvanized tube 12x1.2 (l=6m)
6222216 VSH XPress Carbon+Stainless O-ring EPDM LBP 15
6119401 VSH XPress Carbon+Stainless O-ring FPM LBP 15
6340708 VSH SudoXPress Carbon galvanized tube+PP 15x1.2 small bundle
6204682 VSH SudoXPress Carbon galvanized tube+PP coating 15x1.2
6209931 VSH SudoXPress Carbon galvanized tube 15x1.2 (l=6m) small bundle
6206277 VSH SudoXPress Carbon galvanized tube 15x1.2 (l=3m)
6205155 VSH SudoXPress Carbon galvanized tube 15x1.2 (l=6m)
6119410 VSH XPress Carbon+Stainless O-ring FPM LBP 18
6222227 VSH XPress Carbon+Stainless O-ring EPDM LBP 18
6340719 VSH SudoXPress Carbon galvanized tube+PP 18x1.2 small bundle
6204693 VSH SudoXPress Carbon galvanized tube+PP coating 18x1.2
6205166 VSH SudoXPress Carbon galvanized tube 18x1.2 (l=6m)
6206288 VSH SudoXPress Carbon galvanized tube 18x1.2 (l=3m)
6209940 VSH SudoXPress Carbon galvanized tube 18x1.2 (l=6m) small bundle
6119421 VSH XPress Carbon+Stainless O-ring FPM LBP 22
6222238 VSH XPress Carbon+Stainless O-ring EPDM LBP 22
6340004 VSH XPress Carbon Sendzimir galvanized tube 22x1.5 small bundle
6241114 VSH XPress Carbon Sendzimir galvanized tube 22x1.5
6340721 VSH SudoXPress Carbon galvanized tube+PP 22x1.5 small bundle
6204704 VSH SudoXPress Carbon galvanized tube+PP coating 22x1.5
6205177 VSH SudoXPress Carbon galvanized tube 22x1.5 (l=6m)
6206299 VSH SudoXPress Carbon galvanized tube 22x1.5 (l=3m)
6209951 VSH SudoXPress Carbon galvanized tube 22x1.5 (l=6m) small bundle
6222249 VSH XPress Carbon+Stainless O-ring EPDM LBP 28
6119432 VSH XPress Carbon+Stainless O-ring FPM LBP 28
6340015 VSH XPress Carbon Sendzimir galvanized tube 28x1.5 small bundle
6241125 VSH XPress Carbon Sendzimir galvanized tube 28x1.5
6340730 VSH SudoXPress Carbon galvanized tube+PP 28x1.5 small bundle
6204715 VSH SudoXPress Carbon galvanized tube+PP coating 28x1.5
6205188 VSH SudoXPress Carbon galvanized tube 28x1.5 (l=6m)
6206301 VSH SudoXPress Carbon galvanized tube 28x1.5 (l=3m)
6209962 VSH SudoXPress Carbon galvanized tube 28x1.5 l=6m) small bundle
6222251 VSH XPress Carbon+Stainless O-ring EPDM LBP 35
6119443 VSH XPress Carbon+Stainless O-ring FPM LBP 35
6340026 VSH XPress Carbon Sendzimir galvanized tube 35x1.5 small bundle
6241136 VSH XPress Carbon Sendzimir galvanized tube 35x1.5
6340741 VSH SudoXPress Carbon galvanized tube+PP 35x1.5 small bundle
6204726 VSH SudoXPress Carbon galvanized tube+PP coating 35x1.5
6205199 VSH SudoXPress Carbon galvanized tube 35x1.5 (l=6m)
6206310 VSH SudoXPress Carbon galvanized tube 35x1.5 (l=3m)
6203923 VSH SudoXPress Carbon galvanized tube 35x1.5 (l=6m) small bundle
6119454 VSH XPress Carbon+Stainless O-ring FPM LBP 42
6222260 VSH XPress Carbon+Stainless O-ring EPDM LBP 42
6340037 VSH XPress Carbon Sendzimir galvanized tube 42x1.5 small bundle
6241147 VSH XPress Carbon Sendzimir galvanized tube 42x1.5
6340752 VSH SudoXPress Carbon galvanized tube+PP 42x1.5 small bundle
6204737 VSH SudoXPress Carbon galvanized tube+PP coating 42x1.5
6205201 VSH SudoXPress Carbon galvanized tube 42x1.5 (l=6m)
6206321 VSH SudoXPress Carbon galvanized tube 42x1.5 (l=3m)
6203934 VSH SudoXPress Carbon galvanized tube 42x1.5 (l=6m) small bundle
6119465 VSH XPress Carbon+Stainless O-ring FPM LBP 54
6222271 VSH XPress Carbon+Stainless O-ring EPDM LBP 54
6340048 VSH XPress Carbon Sendzimir galvanized tube 54x1.5 small bundle
6241158 VSH XPress Carbon Sendzimir galvanized tube 54x1.5
6340763 VSH SudoXPress Carbon galvanized tube+PP 54x1.5 small bundle
6204748 VSH SudoXPress Carbon galvanized tube+PP coating 54x1.5
6205221 VSH SudoXPress Carbon galvanized tube 54x1.5 (l=6m)
6206332 VSH SudoXPress Carbon galvanized tube 54x1.5 (l=3m)
6203945 VSH SudoXPress Carbon galvanized tube 54x1.5 (l=6m) small bundle
6208015 VSH XPress Carbon+Stainless O-ring EPDM 76.1
6119377 VSH XPress Carbon+Stainless O-ring FPM 76.1
6340059 VSH XPress Carbon Sendzimir galvanized tube 76.1x2.0 small bundle
6241378 VSH XPress Carbon Sendzimir galvanized tube 76.1x2.0
6204803 VSH SudoXPress Carbon galvanized tube 76.1x2.0 (l=6m)
6203956 VSH SudoXPress Carbon galvanized tube 76.1x2.0 (l=6m) small bundle
6208026 VSH XPress Carbon+Stainless O-ring EPDM 88.9
6119388 VSH XPress Carbon+Stainless O-ring FPM 88.9
6340061 VSH XPress Carbon Sendzimir galvanized tube 88.9x2.0 small bundle
6241389 VSH XPress Carbon Sendzimir galvanized tube 88.9x2.0
6204814 VSH SudoXPress Carbon galvanized tube 88.9x2.0 (l=6m)
6203967 VSH SudoXPress Carbon galvanized tube 88.9x2.0 (l=6m) small bundle
6208037 VSH XPress Carbon+Stainless O-ring EPDM 108
6119399 VSH XPress Carbon+Stainless O-ring FPM 108
6340070 VSH XPress Carbon Sendzimir galvanized tube 108x2.0 small bundle
6241391 VSH XPress Carbon Sendzimir galvanized tube 108x2.0
6204825 VSH SudoXPress Carbon galvanized tube 108x2.0 (l=6m)
6203978 VSH SudoXPress Carbon galvanized tube 108x2.0 (l=6m) small bundle
6204836 VSH SudoXPress Carbon galvanized tube 66.7x1.5 (l=6m)
6208972 VSH SudoXPress Carbon galvanized tube 66.7x1.5 (l=6m) small bundle

contains

item number description
6222205 VSH XPress Carbon+Stainless O-ring EPDM LBP 12 1
6222216 VSH XPress Carbon+Stainless O-ring EPDM LBP 15 1
6222227 VSH XPress Carbon+Stainless O-ring EPDM LBP 18 1
6222238 VSH XPress Carbon+Stainless O-ring EPDM LBP 22 1
6222249 VSH XPress Carbon+Stainless O-ring EPDM LBP 28 1
6222251 VSH XPress Carbon+Stainless O-ring EPDM LBP 35 1
6222260 VSH XPress Carbon+Stainless O-ring EPDM LBP 42 1
6222271 VSH XPress Carbon+Stainless O-ring EPDM LBP 54 1
6208015 VSH XPress Carbon+Stainless O-ring EPDM 76.1 1
6208026 VSH XPress Carbon+Stainless O-ring EPDM 88.9 1
6208037 VSH XPress Carbon+Stainless O-ring EPDM 108 1
6208180 VSH XPress Carbon O-ring EPDM 66.7 1
