VSH XPress Carbon reducer (press x male)

VSH XPress Carbon reducer (press x male)

C1407

The VSH XPress C1407 is a carbon steel reducer with a press and sliding end. By using VSH XPress in your piping installation you can install in a quick, easy and clean way. VSH XPress provides a complete piping system suitable for every conceivable application.

  • insert stop: stop edge for pipe end
  • provided with all relevant approvals
  • Leak Before Pressed-function
  • clear identification on fitting of material and dimension

applications

heating cooling compressed air solar energy sprinkler vacuum

solutions

building installations shipbuilding fire protection

approvals

ATG Bureau Veritas CNBOP DNV-GL Lloyds Register LPCB QB (CSTBat) RINA RISE SBSC SPF UL ULc VdS
item number size weight dimensions packaging gtin
6202119 Ø15x12 0.03 kg 56x20x20 mm bag (10 pce) 08711985095036
6202121 Ø18x12 0.03 kg 56x20x20 mm bag (10 pce) 08711985095050
6202130 Ø18x15 0.04 kg 59x23x23 mm bag (10 pce) 08711985095074
6202141 Ø22x12 0.04 kg 60x22x22 mm bag (10 pce) 08711985095098
6202152 Ø22x15 0.04 kg 61x23x23 mm bag (10 pce) 08711985095111
6202163 Ø22x18 0.05 kg 60x27x27 mm bag (10 pce) 08711985095135
6202174 Ø28x15 0.06 kg 68x28x28 mm bag (10 pce) 08711985095159
6202185 Ø28x18 0.06 kg 66x28x28 mm bag (10 pce) 08711985095173
6202196 Ø28x22 0.07 kg 66x32x32 mm bag (10 pce) 08711985095197
6202207 Ø35x22 0.08 kg 72x35x35 mm bag (5 pce) 08711985139273
6202218 Ø35x28 0.09 kg 70x38x38 mm bag (5 pce) 08711985139280
6206651 Ø42x22 0.11 kg 83x42x42 mm bag (4 pce) 08711985149593
6206662 Ø42x28 0.12 kg 83x42x42 mm bag (4 pce) 08711985173956
6202229 Ø42x35 0.12 kg 80x45x45 mm bag (4 pce) 08711985139297
6206673 Ø54x18 0.17 kg 97x54x54 mm bag (4 pce) 08711985149630
6202231 Ø54x22 0.18 kg 97x54x54 mm bag (4 pce) 08711985095272
6202240 Ø54x28 0.15 kg 92x54x54 mm bag (4 pce) 08711985095296
6206684 Ø54x35 0.17 kg 95x54x54 mm bag (4 pce) 08711985173970
6202251 Ø54x42 0.18 kg 96x54x54 mm bag (4 pce) 08711985095319
6340213 Ø66.7x28 0.35 kg 137x67x67 mm bag (2 pce) 08711985292213
6340224 Ø66.7x35 0.26 kg 122x67x67 mm bag (2 pce) 08711985292220
6340235 Ø66.7x42 0.26 kg 124x67x67 mm bag (2 pce) 08711985292237
6340246 Ø66.7x54 0.29 kg 120x67x67 mm bag (2 pce) 08711985292244
6206387 Ø76.1x42 0.46 kg 146x76x76 mm bag (4 pce) 08711985164688
6206398 Ø76.1x54 0.46 kg 140x76x76 mm bag (4 pce) 08711985182101
6340257 Ø76.1x66.7 0.47 kg 139x76x76 mm bag (2 pce) 08711985292251
6206409 Ø88.9x54 0.59 kg 155x89x89 mm bag (4 pce) 08711985173901
6340268 Ø88.9x66.7 0.56 kg 156x89x89 mm bag (2 pce) 08711985292268
6206411 Ø88.9x76.1 0.71 kg 158x95x95 mm bag (4 pce) 08711985186567
6340279 Ø108x66.7 0.85 kg 186x108x108 mm bag (2 pce) 08711985292275
6206420 Ø108x76.1 0.89 kg 188x108x108 mm bag (2 pce) 08711985186574
6206431 Ø108x88.9 1 kg 186x108x108 mm bag (2 pce) 08711985186581
item number size d1 DN1 l1 d2 DN2 l2 z2
6202119 Ø15x12 15.0 DN12 27 12.0 DN10 29 12
6202121 Ø18x12 18.0 DN15 29 12.0 DN10 27 10
6202130 Ø18x15 18.0 DN15 27 15.0 DN12 31 11
6202141 Ø22x12 22.0 DN20 33 12.0 DN10 27 10
6202152 Ø22x15 22.0 DN20 32 15.0 DN12 29 9
6202163 Ø22x18 22.0 DN20 29 18.0 DN15 32 12
6202174 Ø28x15 28.0 DN25 38 15.0 DN12 30 10
6202185 Ø28x18 28.0 DN25 36 18.0 DN15 30 10
6202196 Ø28x22 28.0 DN25 33 22.0 DN20 33 12
6202207 Ø35x22 35.0 DN32 41 22.0 DN20 30 9
6202218 Ø35x28 35.0 DN32 34 28.0 DN25 36 13
6206651 Ø42x22 42.0 DN40 51 22.0 DN20 32 11
6206662 Ø42x28 42.0 DN40 51 28.0 DN25 32 9
6202229 Ø42x35 42.0 DN40 41 35.0 DN32 39 13
6206673 Ø54x18 54.0 DN50 64 18.0 DN15 34 14
6202231 Ø54x22 54.0 DN50 63 22.0 DN20 34 13
6202240 Ø54x28 54.0 DN50 58 28.0 DN25 33 10
6206684 Ø54x35 54.0 DN50 57 35.0 DN32 38 12
6202251 Ø54x42 54.0 DN50 52 42.0 DN40 44 14
6340213 Ø66.7x28 66.7 DN65 96 28.0 DN25 41 18
6340224 Ø66.7x35 66.7 DN65 84 35.0 DN32 38 12
6340235 Ø66.7x42 66.7 DN65 81 42.0 DN40 44 14
6340246 Ø66.7x54 66.7 DN65 72 54.0 DN50 48 13
6206387 Ø76.1x42 76.1 DN65 97 42.0 DN40 50 20
6206398 Ø76.1x54 76.1 DN65 86 54.0 DN50 55 20
6340257 Ø76.1x66.7 76.1 DN65 75 66.7 DN65 64 14
6206409 Ø88.9x54 88.9 DN80 101 54.0 DN50 54 19
6340268 Ø88.9x66.7 88.9 DN80 92 66.7 DN65 65 15
6206411 Ø88.9x76.1 88.9 DN80 90 76.1 DN65 68 13
6340279 Ø108x66.7 108.0 DN100 122 66.7 DN65 65 15
6206420 Ø108x76.1 108.0 DN100 120 76.1 DN65 68 13
6206431 Ø108x88.9 108.0 DN100 110 88.9 DN80 77 14

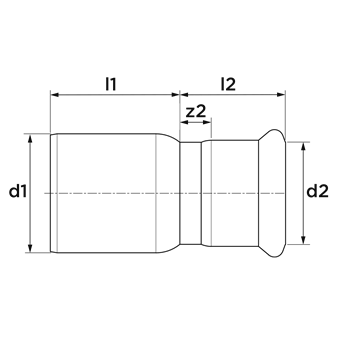

see above for the diagram related to these dimensions
color silver
materials steel (St 34.2 (1.0034))
finishing galvanised
manufacturer Aalberts integrated piping systems B.V. (VSH)
shape straight, reducer
connection type tube end, press (M)
sealing EPDM
product group fittings
ETIM class EC003024 Fitting with 2 connections
HS code 73079980
country of origin Netherlands
brand VSH
series XPress Carbon
type C1407
label value
ETIM class EC003024 Fitting with 2 connections
Material connection 1 Steel
Material quality connection 1 St 34.2 (1.0034)
Surface protection connection 1 Galvanic/electrolytic zinc plated
Material connection 2 Steel
Material quality connection 2 St 34.2 (1.0034)
Surface protection connection 2 Galvanic/electrolytic zinc plated
Shape Straight
Model 1-part
Reducing Yes
Eccentric No
System-specific Yes
Connection 1 Spigot / tube end
Connection 2 Press sleeve
Contour code connection 2 M
Main colour fitting Grey
Flange compression class PN 16
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With buffer stud Yes
High tensile strength Yes
Medium temperature (continuous) -35°C - 135°C
Medium temperature (continuous) (imperial) -31°F - 275°F
Max. operating pressure at 20 °C 16bar
Max. operating pressure at 20 °C (imperial) 232.06psi
With thermal insulation No
With sealing rings/gaskets No
Capped No
With connection indicator No
With drain valve No
With de-aerator No
FM quality mark No
DIN-CERTCO certificate No
With approval for TÜV No
DVGW quality mark for gas No
DVGW quality mark for water No
Certified according to NF 545 No
KIWA certified No
Gastec QA mark No
KOMO certified No
Type approval according to BBR/EKS No
