VSH XPress Stainless T-piece reduced (3 x press)

VSH XPress Stainless T-piece reduced (3 x press)

R2715

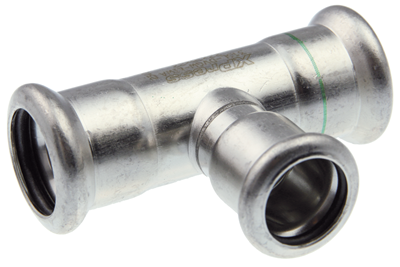

The VSH XPress R2715 is a stainless steel reduced T-piece with 3 press ends. By using VSH XPress in your piping installation you can install in a quick, easy and clean way. VSH XPress provides a complete piping system suitable for every conceivable application.

  • insert stop: stop edge for pipe end
  • provided with all relevant approvals
  • Leak Before Pressed-function
  • clear identification on fitting of material and dimension

applications

potable water heating cooling steam compressed air solar energy sprinkler dry fire main vacuum

solutions

building installations shipbuilding fire protection industry

approvals

ACS ATG CNBOP DVGW Wasser FM FG KIWA Lloyds Register LPCB ÖVGW Wasser PZH QB (CSTBat) RINA RISE SBSC SETSCO SINTEF SPF SVGW Wasser TA-Luft UL ÜA ULc VA (ETA) VdS WRAS
item number size weight dimensions packaging gtin
6191361 18x18x15 0.08 kg 73x52x27 mm bag (10 pce) 08711985155709
6191383 22x22x15 0.1 kg 79x54x32 mm bag (10 pce) 08711985155747
6191394 22x22x18 0.1 kg 79x56x38 mm bag (10 pce) 08711985155761
6191416 28x28x15 0.13 kg 89x57x38 mm bag (5 pce) 08711985155808
6191427 28x28x18 0.13 kg 89x59x38 mm bag (10 pce) 08711985155822
6191438 28x28x22 0.14 kg 89x62x38 mm bag (5 pce) 08711985155846
6191451 35x35x15 0.17 kg 102x61x45 mm bag (5 pce) 08711985155884
6191460 35x35x18 0.17 kg 102x62x45 mm bag (5 pce) 08711985155907
6191471 35x35x22 0.18 kg 102x66x45 mm bag (5 pce) 08711985155921
6191482 35x35x28 0.19 kg 102x71x45 mm bag (5 pce) 08711985155945
6191504 42x42x22 0.24 kg 119x68x54 mm bag (4 pce) 08711985155983
6191515 42x42x28 0.25 kg 119x73x54 mm bag (4 pce) 08711985162929
6191526 42x42x35 0.26 kg 119x80x54 mm bag (4 pce) 08711985156027
6191548 54x54x22 0.35 kg 141x74x65 mm bag (2 pce) 08711985156065
6191559 54x54x28 0.36 kg 141x79x65 mm bag (2 pce) 08711985156089
6191561 54x54x35 0.37 kg 141x86x65 mm bag (2 pce) 08711985156102
6191570 54x54x42 0.39 kg 141x84x65 mm bag (2 pce) 08711985156126
6204341 76.1x76.1x22 0.95 kg 232x83x94 mm bag (2 pce) 08711985249460
6204352 76.1x76.1x28 1.02 kg 232x95x94 mm bag (2 pce) 08711985249477
6204363 76.1x76.1x35 1.03 kg 232x110x94 mm bag (2 pce) 08711985249484
6204374 76.1x76.1x42 0.99 kg 232x133x94 mm bag (2 pce) 08711985249491
6204385 76.1x76.1x54 1.08 kg 232x83x94 mm bag (2 pce) 08711985249507
6204396 88.9x88.9x22 1.34 kg 262x92x109 mm bag (2 pce) 08711985249514
6204407 88.9x88.9x28 1.35 kg 262x95x109 mm bag (2 pce) 08711985249521
6204418 88.9x88.9x35 1.36 kg 262x105x109 mm bag (2 pce) 08711985249538
6204429 88.9x88.9x42 1.38 kg 262x112x109 mm bag (2 pce) 08711985249545
6204431 88.9x88.9x54 1.39 kg 262x126x109 mm bag (2 pce) 08711985249552
6204440 88.9x88.9x76.1 1.6 kg 262x163x109 mm bag (2 pce) 08711985249569
6204451 108x108x22 1.93 kg 312x101x133 mm bag (2 pce) 08711985249576
6204462 108x108x28 1.95 kg 312x107x133 mm bag (2 pce) 08711985249583
6204473 108x108x35 1.97 kg 312x116x133 mm bag (2 pce) 08711985249590
6204484 108x108x42 1.9 kg 312x123x133 mm bag (2 pce) 08711985249606
6204495 108x108x54 1.97 kg 312x135x133 mm bag (2 pce) 08711985249613
6204506 108x108x76.1 2.15 kg 312x172x133 mm bag (2 pce) 08711985249620
6204517 108x108x88.9 2.26 kg 312x190x133 mm bag (2 pce) 08711985249637
item number size d1 l1 z1 DN1 d2 l2 z2 DN2 d3 l3 z3 DN3
6191361 18x18x15 18 (DN15) 37 17 DN15 15 (DN12) 41 21 DN12 18 (DN15) 37 17 DN15
6191383 22x22x15 22 (DN20) 40 19 DN20 15 (DN12) 43 23 DN12 22 (DN20) 40 19 DN20
6191394 22x22x18 22 (DN20) 40 17 DN20 18 (DN15) 43 23 DN15 22 (DN20) 40 17 DN20
6191416 28x28x15 28 (DN25) 45 22 DN25 15 (DN12) 46 26 DN12 28 (DN25) 45 22 DN25
6191427 28x28x18 28 (DN25) 45 22 DN25 18 (DN15) 46 26 DN15 28 (DN25) 45 22 DN25
6191438 28x28x22 28 (DN25) 45 22 DN25 22 (DN20) 47 26 DN20 28 (DN25) 45 22 DN25
6191451 35x35x15 35 (DN32) 51 25 DN32 15 (DN12) 49 29 DN12 35 (DN32) 51 25 DN32
6191460 35x35x18 35 (DN32) 51 25 DN32 18 (DN15) 49 29 DN15 35 (DN32) 51 25 DN32
6191471 35x35x22 35 (DN32) 51 25 DN32 22 (DN20) 50 29 DN20 35 (DN32) 51 25 DN32
6191482 35x35x28 35 (DN32) 51 25 DN32 28 (DN25) 52 29 DN25 35 (DN32) 51 25 DN32
6191504 42x42x22 42 (DN40) 60 30 DN40 22 (DN20) 53 32 DN20 42 (DN40) 60 30 DN40
6191515 42x42x28 42 (DN40) 60 30 DN40 28 (DN25) 55 32 DN25 42 (DN40) 60 30 DN40
6191526 42x42x35 42 (DN40) 60 30 DN40 35 (DN32) 58 32 DN32 42 (DN40) 60 30 DN40
6191548 54x54x22 54 (DN50) 71 36 DN50 22 (DN20) 59 38 DN20 54 (DN50) 71 36 DN50
6191559 54x54x28 54 (DN50) 71 36 DN50 28 (DN25) 61 38 DN25 54 (DN50) 71 36 DN50
6191561 54x54x35 54 (DN50) 71 36 DN50 35 (DN32) 64 38 DN32 54 (DN50) 71 36 DN50
6191570 54x54x42 54 (DN50) 71 36 DN50 42 (DN40) 58 28 DN40 54 (DN50) 71 36 DN50
6204341 76.1x76.1x22 76.1 (DN65) 116 61 DN65 22 (DN20) 68 45 DN20 76.1 (DN65) 116 61 DN65
6204352 76.1x76.1x28 76.1 (DN65) 116 61 DN65 28 (DN25) 71 47 DN25 76.1 (DN65) 116 61 DN65
6204363 76.1x76.1x35 76.1 (DN65) 116 61 DN65 35 (DN32) 75 48 DN32 76.1 (DN65) 116 61 DN65
6204374 76.1x76.1x42 76.1 (DN65) 116 61 DN65 42 (DN40) 79 47 DN40 76.1 (DN65) 116 61 DN65
6204385 76.1x76.1x54 76.1 (DN65) 116 61 DN65 54 (DN50) 80 43 DN50 76.1 (DN65) 116 61 DN65
6204396 88.9x88.9x22 88.9 (DN80) 131 68 DN80 22 (DN20) 76 53 DN20 88.9 (DN80) 131 68 DN80
6204407 88.9x88.9x28 88.9 (DN80) 131 68 DN80 28 (DN25) 76 52 DN25 88.9 (DN80) 131 68 DN80
6204418 88.9x88.9x35 88.9 (DN80) 131 68 DN80 35 (DN32) 83 56 DN32 88.9 (DN80) 131 68 DN80
6204429 88.9x88.9x42 88.9 (DN80) 131 68 DN80 42 (DN40) 85 53 DN40 88.9 (DN80) 131 68 DN80
6204431 88.9x88.9x54 88.9 (DN80) 131 68 DN80 54 (DN50) 93 56 DN50 88.9 (DN80) 131 68 DN80
6204440 88.9x88.9x76.1 88.9 (DN80) 131 68 DN80 76.1 (DN65) 116 61 DN65 88.9 (DN80) 131 68 DN80
6204451 108x108x22 108 (DN100) 156 79 DN100 22 (DN20) 85 62 DN20 108 (DN100) 156 79 DN100
6204462 108x108x28 108 (DN100) 156 79 DN100 28 (DN25) 88 64 DN25 108 (DN100) 156 79 DN100
6204473 108x108x35 108 (DN100) 156 79 DN100 35 (DN32) 94 67 DN32 108 (DN100) 156 79 DN100
6204484 108x108x42 108 (DN100) 156 79 DN100 42 (DN40) 96 64 DN40 108 (DN100) 156 79 DN100
6204495 108x108x54 108 (DN100) 156 79 DN100 54 (DN50) 102 65 DN50 108 (DN100) 156 79 DN100
6204506 108x108x76.1 108 (DN100) 156 79 DN100 76.1 (DN65) 125 70 DN65 108 (DN100) 156 79 DN100
6204517 108x108x88.9 108 (DN100) 156 79 DN100 88.9 (DN80) 135 72 DN80 108 (DN100) 156 79 DN100

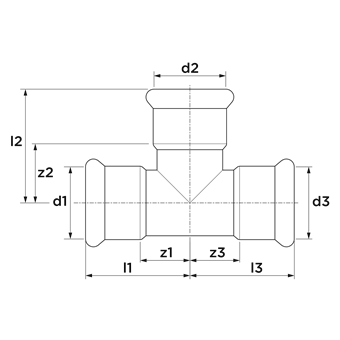

see above for the diagram related to these dimensions
color silver
materials stainless steel (Stainless steel 316L (1.4404))
finishing none
manufacturer 8711985000009
shape T-piece, reducer (90º)
connection type press (M), Press (M)
sealing EPDM
product group fittings
ETIM class EC003025 Fitting with 3 connections
HS code 73072980
country of origin Netherlands
brand VSH
series XPress Stainless
type R2715
UNSPS 40174607
label value
ETIM class EC003025 Fitting with 3 connections
Material connection 1 Stainless steel
Material quality connection 1 Stainless steel 316 L (1.4404)
Surface protection connection 1 Untreated
Surface treatment connection 1 Untreated
Material connection 2 Stainless steel
Material quality connection 2 Stainless steel 316 L (1.4404)
Surface protection connection 2 Untreated
Surface treatment connection 2 Untreated
Material connection 3 Stainless steel
Material quality connection 3 Stainless steel 316 L (1.4404)
Surface protection connection 3 Untreated
Surface treatment connection 3 Untreated
Model T-piece
Angle 90°
Swept entry type (with inner radius) No
Reducing Yes
Multi-part No
System-specific Yes
Connection 1 Press sleeve
Contour code connection 1 M
Connection 2 Press sleeve
Contour code connection 2 M
Connection 3 Press sleeve
Contour code connection 3 M
Flange compression class PN 16
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
Main colour fitting Grey
High tensile strength Yes
Medium temperature (continuous) -35°C - 135°C
Medium temperature (continuous) (imperial) -31°F - 275°F
Max. operating pressure at 20 °C 16bar
Max. operating pressure at 20 °C (imperial) 232.06psi
With sealing rings/gaskets No
With drain No
With de-aerator No
With thermal insulation No
With buffer stud Yes
Capped No
Connection indicator No
DIN-CERTCO certificate No
With approval for TÜV No
DVGW quality mark for gas No
DVGW quality mark for water Yes
KIWA certified Yes
Gastec QA mark No
KOMO certified No
Type approval according to BBR/EKS No
