group: R2713
The VSH XPress R2713 is a stainless steel 45º elbow with 2 press ends. By using VSH XPress in your piping installation you can install in a quick, easy and clean way. VSH XPress provides a complete piping system suitable for every conceivable application.
potable water
heating
cooling
steam
compressed air
solar energy
sprinkler
dry fire main
vacuum
building installations
shipbuilding
fire protection
industry
ACS
ATG
Bureau Veritas
CNBOP
DVGW Wasser
FG
FM
KIWA
Lloyds Register
LPCB
ÖVGW Wasser
PZH
QB (CSTBat)
RINA
RISE
SBSC
SETSCO
SINTEF
SPF
SVGW Wasser
TA-Luft
ÜA
VA (ETA)
VdS
WRAS
| item number | size | weight | dimensions | packaging | gtin |
|---|---|---|---|---|---|
| 6190041 | 15 | 0.04 kg | 60x23x42 mm | bag (10 pce) | 08711985151824 |
| 6190052 | 18 | 0.05 kg | 64x27x45 mm | bag (10 pce) | 08711985151848 |
| 6190063 | 22 | 0.07 kg | 71x32x52 mm | bag (10 pce) | 08711985151862 |
| 6190074 | 28 | 0.09 kg | 82x38x60 mm | bag (10 pce) | 08711985151886 |
| 6190085 | 35 | 0.13 kg | 95x45x71 mm | bag (5 pce) | 08711985151909 |
| 6190096 | 42 | 0.21 kg | 115x54x86 mm | bag (2 pce) | 08711985151923 |
| 6190107 | 54 | 0.3 kg | 137x65x103 mm | bag (2 pce) | 08711985151947 |
| 6230061 | 76.1 | 0.79 kg | 201x94x150 mm | bag (2 pce) | 08711985249408 |
| 6230070 | 88.9 | 1.11 kg | 230x109x172 mm | bag (2 pce) | 08711985249415 |
| 6230081 | 108 | 1.6 kg | 282x133x211 mm | bag (2 pce) | 08711985249422 |

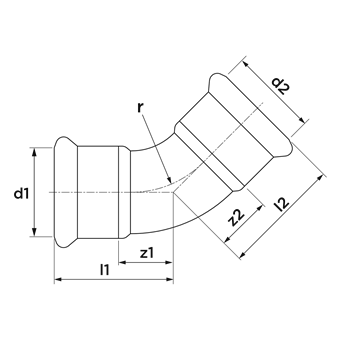

| item number | size | d1 | DN1 | l1 | z1 | d2 | DN2 | l2 | z2 | radius | angle |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 6190041 | 15 | 15.0 | DN12 | 31 | 11 | 15.0 | DN12 | 31 | 11 | 18 | 45 |
| 6190052 | 18 | 18.0 | DN15 | 32 | 12 | 18.0 | DN15 | 32 | 12 | 22 | 45 |
| 6190063 | 22 | 22.0 | DN20 | 35 | 14 | 22.0 | DN20 | 35 | 14 | 27 | 45 |
| 6190074 | 28 | 28.0 | DN25 | 40 | 17 | 28.0 | DN25 | 40 | 17 | 34 | 45 |
| 6190085 | 35 | 35.0 | DN32 | 47 | 21 | 35.0 | DN32 | 47 | 21 | 42 | 45 |
| 6190096 | 42 | 42.0 | DN40 | 56 | 26 | 42.0 | DN40 | 56 | 26 | 51 | 45 |
| 6190107 | 54 | 54.0 | DN50 | 67 | 32 | 54.0 | DN50 | 67 | 32 | 65 | 45 |
| 6230061 | 76.1 | 76.1 | DN65 | 98 | 43 | 76.1 | DN65 | 98 | 43 | 91 | 45 |
| 6230070 | 88.9 | 88.9 | DN80 | 112 | 49 | 88.9 | DN80 | 112 | 49 | 107 | 45 |
| 6230081 | 108 | 108.0 | DN100 | 138 | 61 | 108.0 | DN100 | 138 | 61 | 130 | 45 |
| color | silver |
|---|---|
| materials | stainless steel (Stainless steel 316L (1.4404)) |
| finishing | none |
| manufacturer | Aalberts integrated piping systems B.V. (VSH) |
| shape | Bend (45º) |
| connection type | press (M) |
| sealing | EPDM |
| product group | fittings |
|---|---|
| ETIM class | EC003024 Fitting with 2 connections |
| HS code | 73072980 |
| brand | VSH |
| series | XPress Stainless |
| type | R2713 |
| UNSPS | 40172107 |
