VSH XPress Stainless straight coupling (2 x press)

group: R2701

The VSH XPress R2701 is a straight stainless steel coupling with 2 press ends. By using VSH XPress in your piping installation you can install in a quick, easy and clean way. VSH XPress provides a complete piping system suitable for every conceivable application.

  • insert stop: stop edge for pipe end
  • provided with all relevant approvals
  • Leak Before Pressed-function
  • clear identification on fitting of material and dimension
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

heating

heating

cooling

cooling

steam

steam

compressed air

compressed air

solar energy

solar energy

sprinkler

sprinkler

dry fire main

dry fire main

vacuum

vacuum

segments

fire protection

fire protection

commercial building

commercial building

industry

industry

shipbuilding

shipbuilding

approvals

ACS

ACS

ATG

ATG

Bureau Veritas

Bureau Veritas

CNBOP

CNBOP

DVGW Wasser

DVGW Wasser

FG

FG

FM

FM

KIWA

KIWA

Lloyds Register

Lloyds Register

LPCB

LPCB

ÖVGW Wasser

ÖVGW Wasser

PZH

PZH

QB (CSTBat)

QB (CSTBat)

RINA

RINA

RISE

RISE

SBSC

SBSC

SETSCO

SETSCO

SINTEF

SINTEF

SPF

SPF

SVGW Wasser

SVGW Wasser

TA-Luft

TA-Luft

ÜA

ÜA

VA (ETA)

VA (ETA)

VdS

VdS

WRAS

WRAS

item number

size

d1

DN1

l1

z1

d2

DN2

l2

z2

item number

6198874

size

12

d1

12.0

DN1

DN10

l1

21

z1

4

d2

12.0

DN2

DN10

l2

21

z2

4

item number

6190943

size

15

d1

15.0

DN1

DN12

l1

25

z1

5

d2

15.0

DN2

DN12

l2

25

z2

5

item number

6190954

size

18

d1

18.0

DN1

DN15

l1

25

z1

5

d2

18.0

DN2

DN15

l2

25

z2

5

item number

6190965

size

22

d1

22.0

DN1

DN20

l1

26

z1

5

d2

22.0

DN2

DN20

l2

26

z2

5

item number

6190976

size

28

d1

28.0

DN1

DN25

l1

28

z1

5

d2

28.0

DN2

DN25

l2

28

z2

5

item number

6190987

size

35

d1

35.0

DN1

DN32

l1

31

z1

5

d2

35.0

DN2

DN32

l2

31

z2

5

item number

6190998

size

42

d1

42.0

DN1

DN40

l1

36

z1

6

d2

42.0

DN2

DN40

l2

36

z2

6

item number

6191009

size

54

d1

54.0

DN1

DN50

l1

41

z1

6

d2

54.0

DN2

DN50

l2

41

z2

6

item number

6204154

size

76.1

d1

76.1

DN1

DN65

l1

71

z1

16

d2

76.1

DN2

DN65

l2

71

z2

16

item number

6204165

size

88.9

d1

88.9

DN1

DN80

l1

82

z1

19

d2

88.9

DN2

DN80

l2

82

z2

19

item number

6204176

size

108

d1

108.0

DN1

DN100

l1

96

z1

19

d2

108.0

DN2

DN100

l2

96

z2

19

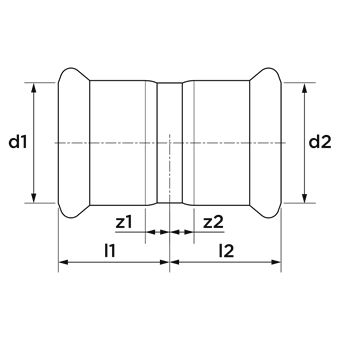

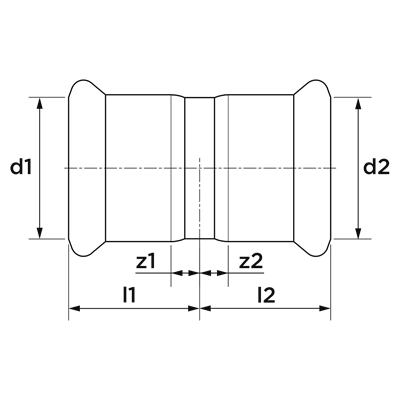

technical drawing for product

characteristics

color

silver

materials

stainless steel (Stainless steel 316L (1.4404))

finishing

none

manufacturer

Aalberts integrated piping systems B.V. (VSH)

shape

straight

connection type

press (M)

sealing

EPDM

general

product group

fittings

ETIM class

EC003024 Fitting with 2 connections

HS code

73072980

brand

VSH

series

XPress Stainless

type

R2701

UNSPS

40172607

label

value

label

Material connection 1

value

Stainless steel

label

Material quality connection 1

value

Stainless steel 316 L (1.4404)

label

Surface protection connection 1

value

Untreated

label

Surface treatment connection 1

value

Untreated

label

Material connection 2

value

Stainless steel

label

Material quality connection 2

value

Stainless steel 316 L (1.4404)

label

Surface protection connection 2

value

Untreated

label

Surface treatment connection 2

value

Untreated

label

Shape

value

Straight

label

Model

value

1-part

label

Reducing

value

No

label

Eccentric

value

No

label

System specific

value

Yes

label

Connection 1

value

Press sleeve

label

Contour code connection 1

value

M

label

Connection 2

value

Press sleeve

label

Contour code connection 2

value

M

label

Main colour fitting

value

Grey

label

Flange compression class (PN)

value

PN 16

label

Material sealing

value

Ethylene-propylene diene monomer rubber (EPDM)

label

With buffer stud

value

Yes

label

High tensile strength

value

Yes

label

Medium temperature (continuous)

value

-35°C - 135°C

label

Medium temperature (continuous) (imperial)

value

-31°F - 275°F

label

Max. operating pressure at 20 °C

value

16bar

label

Max. operating pressure at 20 °C (imperial)

value

232.06psi

label

With thermal insulation

value

No

label

With sealing rings/gaskets

value

No

label

Capped

value

No

label

With connection indicator

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

DIN-CERTCO certificate

value

No

label

With approval for TÜV

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

Yes

label

Certified according to NF 545

value

No

label

KIWA certified

value

Yes

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No

label

Type approval according to BBR/EKS

value

No
