SP4270V
The VSH SudoPress SP4270V is a bronze straight coupling with 2 press ends that can be used on copper, carbon ans stainless steel tubes. The coupling can be used for connecting pipes in different materials. By using VSH SudoPress in your piping installation you can install in a quick, easy and clean way. VSH SudoPress provides a piping system that can be used in the most diverse situations.
applications
solutions
approvals
item number | size | weight | dimensions | packaging | gtin |
---|---|---|---|---|---|
6672272 | 12 | 0.05 kg | 45x20x20 mm | bag (5 pce) | 03430651408783 |
6672274 | 15 | 0.07 kg | 55x20x20 mm | bag (5 pce) | 03430651408806 |
6672276 | 18 | 0.08 kg | 55x30x25 mm | bag (5 pce) | 03430651408820 |
6672278 | 22 | 0.1 kg | 57x30x30 mm | bag (5 pce) | 03430651408837 |
6672280 | 28 | 0.12 kg | 57x35x35 mm | bag (5 pce) | 03430651408844 |
6672282 | 35 | 0.16 kg | 62x40x40 mm | bag (5 pce) | 03430651408851 |
6672284 | 42 | 0.27 kg | 76x55x45 mm | bag (1 pce) | 03430652408867 |
6672286 | 54 | 0.34 kg | 85x65x65 mm | bag (1 pce) | 03430650408876 |

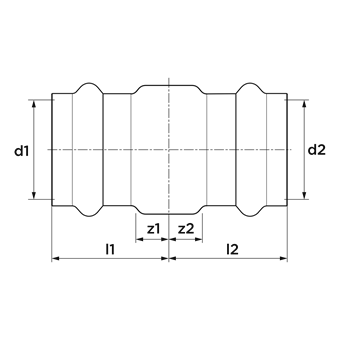

item number | size | d1 | DN1 | l1 | z1 | d2 | DN2 | l2 | z2 |
---|---|---|---|---|---|---|---|---|---|
6672272 | 12 | 12.0 | DN10 | 22 | 4 | 12.0 | DN10 | 22 | 4 |
6672274 | 15 | 15.0 | DN12 | 28 | 6 | 15.0 | DN12 | 28 | 6 |
6672276 | 18 | 18.0 | DN15 | 28 | 6 | 18.0 | DN15 | 28 | 6 |
6672278 | 22 | 22.0 | DN20 | 28 | 5 | 22.0 | DN20 | 28 | 5 |
6672280 | 28 | 28.0 | DN25 | 28 | 4 | 28.0 | DN25 | 28 | 4 |
6672282 | 35 | 35.0 | DN32 | 31 | 6 | 35.0 | DN32 | 31 | 6 |
6672284 | 42 | 42.0 | DN40 | 38 | 2 | 42.0 | DN40 | 38 | 2 |
6672286 | 54 | 54.0 | DN50 | 43 | 2 | 54.0 | DN50 | 43 | 2 |
color | bronze |
---|---|
materials | bronze (EN CC499K) |
finishing | none |
manufacturer | Aalberts integrated piping systems B.V. (VSH) |
shape | straight |
connection type | press (V) |
sealing | EPDM |
product group | fittings |
---|---|
ETIM class | EC003024 Fitting with 2 connections |
HS code | 74122000 |
brand | VSH |
series | SudoPress Copper |
type | SP4270V |
UNSPS | 40172607 |
SCIP | 9c667905-838e-436f-9f23-94980e0c8c97 |
SDS-VSH_SudoPress_Copper_gunmetal link to sheet |
download | |
SP4270V image |
png | download |
SudoPress Copper WRAS certifications |
download | |
VSH SudoPress Copper 15-54mm RISE ENG certifications |
download | |
VSH SudoPress Copper Avis Technique certifications |
download | |
VSH SudoPress Copper-ACS certifications |
download | |
Diagram diagram |
png | download |
VSH SudoPress Copper 15-54mm RISE SE certifications |
download | |
VSH SudoPress instructions installation- & maintenance document |
download |
