group: SP4130GV

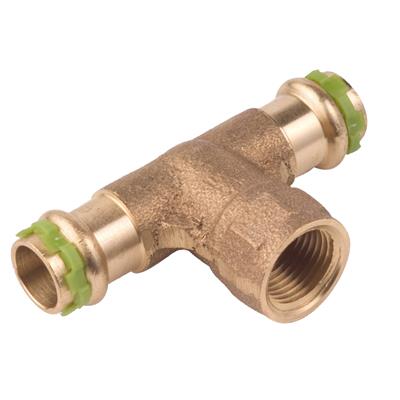

The VSH SudoPress SP4130GV is a T-piece with 2 press ends and a female thread end. By using VSH SudoPress in your piping installation you can install in a quick, easy and clean way. VSH SudoPress provides a piping system that can be used in the most diverse situations.
potable water
heating
cooling
compressed air
solar energy
vacuum
building installations
shipbuilding
industry
ACS
DVGW Wasser
KIWA
QB (CSTBat)
RISE
SVGW Wasser
TSU
WRAS
| item number | size | weight | dimensions | packaging | gtin |
|---|---|---|---|---|---|
| 6671764 | 12x12xRp1/2 | 0.11 kg | 82x31x24 mm | bag (5 pce) | 03430651359030 |
| 6671766 | 14x14xRp1/2 | 0.12 kg | 87x33x22 mm | bag (5 pce) | 03430651359047 |
| 6671775 | 15x15xRp1/2 | 0.12 kg | 88x34x23 mm | bag (5 pce) | 03430651359061 |
| 6671777 | 16x16xRp1/2 | 0.11 kg | 87x34x24 mm | bag (5 pce) | 03430651359078 |
| 6671786 | 18x18xRp1/2 | 0.12 kg | 88x37x26 mm | bag (5 pce) | 03430651359092 |
| 6671797 | 22x22xRp1/2 | 0.17 kg | 88x42x31 mm | bag (5 pce) | 03430651359108 |
| 6671808 | 22x22xRp3/4 | 0.18 kg | 94x44x31 mm | bag (5 pce) | 03430651359122 |
| 6671819 | 28x28xRp1/2 | 0.2 kg | 88x48x37 mm | bag (5 pce) | 03430651359146 |
| 6671821 | 28x28xRp3/4 | 0.23 kg | 94x50x37 mm | bag (5 pce) | 03430651359153 |
| 6671830 | 35x35xRp1/2 | 0.21 kg | 88x55x44 mm | bag (5 pce) | 03430651359160 |
| 6671841 | 42x42xRp1/2 | 0.36 kg | 108x63x54 mm | bag (1 pce) | 03430650359178 |
| 6671852 | 54x54xRp1/2 | 0.46 kg | 114x75x66 mm | bag (1 pce) | 03430650359185 |

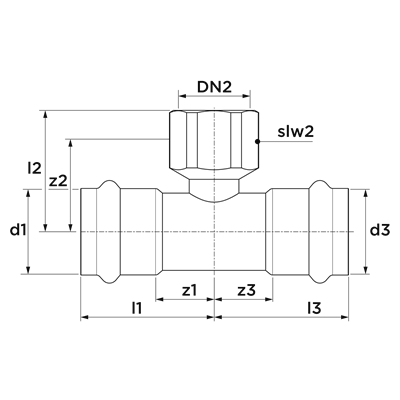

| item number | size | d1 | DN1 | l1 | z1 | d2 | DN2 | l2 | z2 | slw2 | d3 | DN3 | l3 | z3 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6671764 | 12x12xRp1/2 | 12.0 | DN10 | 41 | 23 | 21.3 | 1/2" (DN15) | 21 | 8 | 23 | 12.0 | DN10 | 41 | 23 |
| 6671766 | 14x14xRp1/2 | 14.0 | DN12 | 44 | 20 | 21.3 | 1/2" (DN15) | 22 | 9 | 23 | 14.0 | DN12 | 44 | 20 |
| 6671775 | 15x15xRp1/2 | 15.0 | DN12 | 44 | 22 | 21.3 | 1/2" (DN15) | 22 | 9 | 24 | 15.0 | DN12 | 44 | 22 |
| 6671777 | 16x16xRp1/2 | 16.0 | DN12 | 44 | 20 | 21.3 | 1/2" (DN15) | 22 | 9 | 23 | 16.0 | DN12 | 44 | 20 |
| 6671786 | 18x18xRp1/2 | 18.0 | DN15 | 44 | 22 | 21.3 | 1/2" (DN15) | 24 | 11 | 23 | 18.0 | DN15 | 44 | 22 |
| 6671797 | 22x22xRp1/2 | 22.0 | DN20 | 44 | 21 | 21.3 | 1/2" (DN15) | 26 | 13 | 23 | 22.0 | DN20 | 44 | 21 |
| 6671808 | 22x22xRp3/4 | 22.0 | DN20 | 47 | 24 | 26.9 | 3/4" (DN20) | 29 | 14 | 29 | 22.0 | DN20 | 47 | 24 |
| 6671819 | 28x28xRp1/2 | 28.0 | DN25 | 44 | 20 | 21.3 | 1/2" (DN15) | 29 | 16 | 23 | 28.0 | DN25 | 44 | 20 |
| 6671821 | 28x28xRp3/4 | 28.0 | DN25 | 47 | 23 | 26.9 | 3/4" (DN20) | 32 | 17 | 29 | 28.0 | DN25 | 47 | 23 |
| 6671830 | 35x35xRp1/2 | 35.0 | DN32 | 44 | 19 | 21.3 | 1/2" (DN15) | 33 | 19 | 23 | 35.0 | DN32 | 44 | 19 |
| 6671841 | 42x42xRp1/2 | 42.0 | DN40 | 54 | 18 | 21.3 | 1/2" (DN15) | 36 | 23 | 24 | 42.0 | DN40 | 54 | 18 |
| 6671852 | 54x54xRp1/2 | 54.0 | DN50 | 57 | 16 | 21.3 | 1/2" (DN15) | 42 | 29 | 24 | 54.0 | DN50 | 57 | 16 |
| color | brass, bronze |
|---|---|
| materials | bronze, brass (CW617N, EN CC499K) |
| finishing | none |
| manufacturer | Aalberts integrated piping systems B.V. (VSH) |
| shape | T-piece, reducer (90Āŗ) |
| connection type | press (V), Rp - female thread cylindrical (BSPT), Press (V) |
| sealing | EPDM |
| product group | fittings |
|---|---|
| ETIM class | EC003025 Fitting with 3 connections |
| HS code | 74122000 |
| brand | VSH |
| series | SudoPress Copper |
| type | SP4130GV |
| UNSPS | 40172507 |
SDS-VSH_SudoPress_Copper_brass link to sheet |
download | |
SDS-VSH_SudoPress_Copper_gunmetal link to sheet |
download | |
 SP4130GV image |
jpg | download |
SudoPress Copper DVGW Water certifications |
download | |
SudoPress Copper WRAS certifications |
download | |
SudoPress Koper KIWA certifications |
download | |
VSH SudoPress Copper 15-54mm RISE ENG certifications |
download | |
VSH SudoPress Copper Avis Technique certifications |
download | |
VSH SudoPress Copper-ACS certifications |
download | |
VSH SudoPress TSU certifications |
download | |
VSHSudoPressRVS-RG_SVGW_W15-54D certifications |
download | |
 Diagram diagram |
png | download |
VSH SudoPress Copper 15-54mm RISE SE certifications |
download | |
VSH SudoPress RVS-bronze SVGW Water 15-54mm (FR) certifications |
download | |
VSH SudoPress instructions installation- & maintenance document |
download |
| label | value |
|---|---|
| ETIM class | EC003025 Fitting with 3 connections |
| Surface protection connection 1 | Untreated |
| Surface treatment connection 1 | Untreated |
| Surface protection connection 2 | Untreated |
| Surface treatment connection 2 | Untreated |
| Surface protection connection 3 | Untreated |
| Surface treatment connection 3 | Untreated |
| Model | T-piece |
| Angle | 90Ā° |
| Multi-part | No |
| System specific | Yes |
| Connection 1 | Press sleeve |
| Contour code connection 1 | V |
| Connection 2 | Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1) |
| Connection 3 | Press sleeve |
| Contour code connection 3 | V |
| Flange compression class | PN 16 |
| Material sealing | Ethylene-propylene diene monomer rubber (EPDM) |
| High tensile strength | Yes |
| Max. operating pressure at 20 Ā°C | 16bar |
| Max. operating pressure at 20 Ā°C (imperial) | 232.06psi |
| Medium temperature (continuous) | -20Ā°C - 110Ā°C |
| Medium temperature (continuous) (imperial) | -4Ā°F - 230Ā°F |
| With sealing rings/gaskets | No |
| With drain valve | No |
| With de-aerator | No |
| With buffer stud | Yes |
| Capped | No |
| With connection indicator | Yes |
| FM quality mark | No |
| LPCB quality mark | No |
| ULC quality mark | No |
| UL quality mark | No |
| VdS quality mark | No |
| DVGW quality mark for gas | No |
| Gastec QA mark | No |
| KOMO certified | No |
| Gastec QA - AR 214 (H2) | No |
