group: SP4090GV

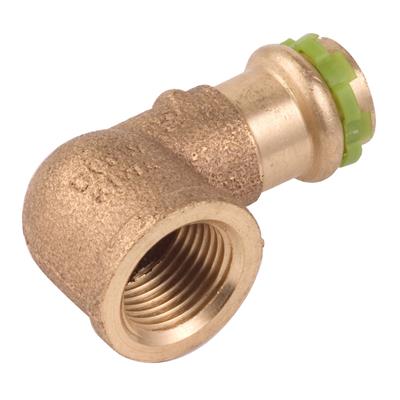

The VSH SudoPress SP4090GV is a 90° angle adapter with a press and a female thread end. By using VSH SudoPress in your piping installation you can install in a quick, easy and clean way. VSH SudoPress provides a piping system that can be used in the most diverse situations.
potable water
heating
cooling
compressed air
solar energy
vacuum
commercial building
industry
shipbuilding
ACS
Bureau Veritas
DVGW Wasser
KIWA
QB (CSTBat)
RISE
SVGW Wasser
TSU
WRAS
item number
size
dimensions
weight
packaging
gtin
item number
size
12xRp1/2"
dimensions
33x55x26 mm
weight
0.08 kg
packaging
bag (5 pce)
gtin
03430651358729
item number
size
14xRp1/2
dimensions
33x56x26 mm
weight
0.07 kg
packaging
bag (5 pce)
gtin
03430651358743
item number
size
15xRp3/8"
dimensions
31x53x26 mm
weight
0.08 kg
packaging
bag (5 pce)
gtin
03430651358781
item number
size
15xRp1/2"
dimensions
34x58x26 mm
weight
0.08 kg
packaging
bag (5 pce)
gtin
03430651358767
item number
size
15xRp3/4"
dimensions
12x60x26 mm
weight
0.13 kg
packaging
bag (5 pce)
gtin
03430651358774
item number
size
16xRp1/2
dimensions
34x56x26 mm
weight
0.08 kg
packaging
bag (5 pce)
gtin
03430651358798
item number
size
16xRp3/4
dimensions
38x61x26 mm
weight
0.11 kg
packaging
bag (5 pce)
gtin
03430651358804
item number
size
18xRp1/2"
dimensions
37x58x26 mm
weight
0.11 kg
packaging
bag (5 pce)
gtin
03430651358811
item number
size
18xRp3/4"
dimensions
39x64x26 mm
weight
0.13 kg
packaging
bag (5 pce)
gtin
03430651358828
item number
size
22xRp1/2"
dimensions
42x58x26 mm
weight
0.12 kg
packaging
bag (5 pce)
gtin
03430651358842
item number
size
22xRp3/4"
dimensions
42x68x26 mm
weight
0.12 kg
packaging
bag (5 pce)
gtin
03430651358859
item number
size
28xRp1"
dimensions
53x75x26 mm
weight
0.23 kg
packaging
bag (5 pce)
gtin
03430651358866
item number
size
d1
DN1
l1
z1
d2
DN2
l2
z2
slw2
radius
angle
item number
6671599size
12xRp1/2"
d1
12.0
DN1
DN10
l1
41
z1
23
d2
21.3
DN2
1/2" (DN15)
l2
23
z2
9
slw2
23
radius
20
angle
90
item number
6671602size
14xRp1/2
d1
14.0
DN1
DN12
l1
44
z1
20
d2
21.3
DN2
1/2" (DN15)
l2
22
z2
9
slw2
22
radius
19
angle
90
item number
6671601size
15xRp3/8"
d1
15.0
DN1
DN12
l1
42
z1
20
d2
17.2
DN2
3/8" (DN10)
l2
19
z2
8
slw2
18
radius
19
angle
90
item number
6671610size
15xRp1/2"
d1
15.0
DN1
DN12
l1
46
z1
24
d2
21.3
DN2
1/2" (DN15)
l2
23
z2
9
slw2
22
radius
19
angle
90
item number
6671621size
15xRp3/4"
d1
15.0
DN1
DN12
l1
46
z1
24
d2
26.9
DN2
3/4" (DN20)
l2
26
z2
12
slw2
25
radius
20
angle
90
item number
6671603size
16xRp1/2
d1
16.0
DN1
DN12
l1
44
z1
20
d2
21.3
DN2
1/2" (DN15)
l2
22
z2
9
slw2
22
radius
19
angle
90
item number
6671605size
16xRp3/4
d1
16.0
DN1
DN12
l1
47
z1
23
d2
26.9
DN2
3/4" (DN20)
l2
26
z2
10
slw2
25
radius
24
angle
90
item number
6671632size
18xRp1/2"
d1
18.0
DN1
DN15
l1
44
z1
22
d2
21.3
DN2
1/2" (DN15)
l2
24
z2
10
slw2
24
radius
9
angle
90
item number
6671643size
18xRp3/4"
d1
18.0
DN1
DN15
l1
47
z1
25
d2
26.9
DN2
3/4" (DN20)
l2
26
z2
12
slw2
29
radius
9
angle
90
item number
6671654size
22xRp1/2"
d1
22.0
DN1
DN20
l1
44
z1
21
d2
21.3
DN2
1/2" (DN15)
l2
26
z2
13
slw2
24
radius
29
angle
90
item number
6671665size
22xRp3/4"
d1
22.0
DN1
DN20
l1
52
z1
29
d2
26.9
DN2
3/4" (DN20)
l2
27
z2
12
slw2
29
radius
24
angle
90
item number
6671687size
28xRp1"
d1
28.0
DN1
DN25
l1
51
z1
27
d2
33.7
DN2
1" (DN25)
l2
34
z2
17
slw2
41
radius
29
angle
90
color
brass, bronze
materials
bronze, brass (CW617N, EN CC499K)
finishing
none
shape
Bend, reducer (90º)
connection type
press (V), Rp - female thread cylindrical (BSPT)
sealing
EPDM
product group
fittings
ETIM class
EC003024 Fitting with 2 connections
HS code
74122000
brand
VSH
series
SudoPress Copper
type
SP4090GV
UNSPS
40172807
max operating pressure liquid
16 bar
min. medium temperature
-20 °C
max medium temperature
110 °C
peak medium temperature
135 °C
image | jpg
SP4090GV
diagram | png
Diagram
Environmental Product Declaration | pdf
EPD VSH SudoPress Copper
link to sheet | pdf
SDS-VSH_SudoPress_Copper_brass
link to sheet | pdf
SDS-VSH_SudoPress_Copper_gunmetal
certifications | pdf
SudoPress Copper DVGW Water
certifications | pdf
SudoPress Copper WRAS
certifications | pdf
SudoPress Koper KIWA
certifications | pdf
VSH SudoPress Copper 15-54mm RISE ENG
certifications | pdf
VSH SudoPress Copper Avis Technique
certifications | pdf
VSH SudoPress Copper-ACS
certifications | pdf
VSH SudoPress TSU
certifications | pdf
VSHSudoPressRVS-RG_SVGW_W15-54D
certifications | pdf
VSH SudoPress Copper 15-54mm RISE SE
certifications | pdf
VSH SudoPress RVS-bronze SVGW Water 15-54mm (FR)
installation- & maintenance document | pdf
VSH SudoPress instructions
label
value
label
ETIM class
label
Surface protection connection 1
value
Untreated
label
Surface treatment connection 1
value
Untreated
label
Surface protection connection 2
value
Untreated
label
Surface treatment connection 2
value
Untreated
label
Shape
value
Bend
label
Model
value
1-part
label
Bend angle
value
90°
label
Eccentric
value
No
label
System specific
value
Yes
label
Connection 1
value
Press sleeve
label
Contour code connection 1
value
V
label
Connection 2
value
Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1)
label
Flange compression class (PN)
value
PN 16
label
Material sealing
value
Ethylene-propylene diene monomer rubber (EPDM)
label
With buffer stud
value
Yes
label
High tensile strength
value
Yes
label
Medium temperature (continuous)
value
-20°C - 110°C
label
Medium temperature (continuous) (imperial)
value
-4°F - 230°F
label
Max. operating pressure at 20 °C
value
16bar
label
Max. operating pressure at 20 °C (imperial)
value
232.06psi
label
With sealing rings/gaskets
value
No
label
Capped
value
No
label
With connection indicator
value
Yes
label
With drain valve
value
No
label
With de-aerator
value
No
label
FM quality mark
value
No
label
LPCB quality mark
value
No
label
ULC quality mark
value
No
label
UL quality mark
value
No
label
VdS quality mark
value
No
label
DVGW quality mark for gas
value
No
label
Certified according to NF 545
value
No
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
