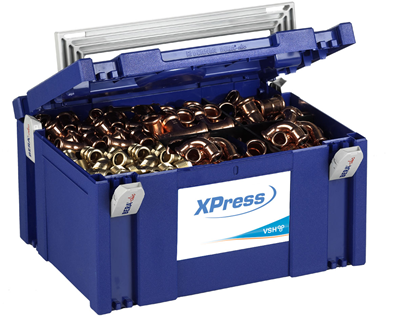

VSH XPress Copper starter kit

VSH XPress Copper starter kit

group: CU2499

The VSH XPress CU2499 is a starter case with a diversity of XPress copper fittings. By using XPress in your piping installation you can install in a quick, easy and clean way. VSH XPress provides a complete piping system suitable for every conceivable application.

applications

potable water

potable water

heating

heating

cooling

cooling

compressed air

compressed air

vacuum

vacuum

show all
show less

solutions

building installations

building installations

shipbuilding

shipbuilding

industry

industry

show all
show less

approvals

BSI Kitemark

BSI Kitemark

CSN

CSN

DNV-GL

DNV-GL

DVGW Wasser

DVGW Wasser

EMI

EMI

KIWA

KIWA

QB (CSTBat)

QB (CSTBat)

SINTEF

SINTEF

WRAS

WRAS

show all
show less
item number size weight dimensions packaging gtin
4809961 Starter kit 15-22 16.07 kg 400x300x220 mm box (1 pce) 08711985264029
4809992 Starter kit 15-22 (B) 9.99 kg 400x300x220 mm box (1 pce) 08711985161694
color blue
materials copper (CW024A (UNS C12200))
manufacturer Aalberts integrated piping systems B.V. (VSH)
sealing EPDM
product group fittings (action kit)
ETIM class EC000524 Assortment box for installation- and connection material
HS code 74122000
brand VSH
series XPress Copper
type CU2499
label value
ETIM class EC000524 Assortment box for installation- and connection material
Housing material Plastic
Insulated cable end sleeves No
Insulated cable connections No
Non-insulated cable end sleeves No
Non-isolated cable connections No
Crimp cable lug for Cu-conductors No
Tube cable lug for Cu-conductors No
With ty-rap No
Cable screw glands No
With tool No

accessories

item number description
6115912 VSH XPress Copper O-ring EPDM 15
4805218 VSH XPress Copper O-ring FPM 15
6115934 VSH XPress Copper O-ring EPDM 22
4805231 VSH XPress Copper O-ring FPM 22
6212657 VSH XPress Copper insert depth marker 12-108
6115923 VSH XPress Copper O-ring EPDM 18
4805229 VSH XPress Copper O-ring FPM 18

contains

item number description
4800015 VSH XPress Copper straight coupling FF 15 50
4800037 VSH XPress Copper straight coupling FF 22 30
4800312 VSH XPress Copper elbow 90° FF 15 50
4800334 VSH XPress Copper elbow 90° FF 22 30
4801060 VSH XPress Copper straight connector FM 15xR1/2" 50
4801115 VSH XPress Copper straight connector FM 22xR3/4" 30
4801601 VSH XPress Copper T-piece FFF 15 30
4801621 VSH XPress Copper T-piece FFF 22 30
