C1402
The VSH XPress C1402 is a straight carbon steel connector with a press and female thread end. By using VSH XPress in your piping installation you can install in a quick, easy and clean way. VSH XPress provides a complete piping system suitable for every conceivable application.
applications
solutions
approvals
| item number | size | weight | dimensions | packaging | gtin |
|---|---|---|---|---|---|
| 6202361 | 12xRp1/2" | 0.04 kg | 39x28x28 mm | bag (10 pce) | 08711985094916 |
| 6202372 | 15xRp1/2" | 0.05 kg | 41x28x28 mm | bag (10 pce) | 08711985094930 |
| 6202383 | 18xRp1/2" | 0.07 kg | 40x31x31 mm | bag (10 pce) | 08711985094954 |
| 6202394 | 18xRp3/4" | 0.07 kg | 43x35x35 mm | bag (10 pce) | 08711985094978 |
| 6340202 | 22xRp1/2" | 0.09 kg | 37x37x37 mm | bag (10 pce) | 08711985256031 |
| 6202405 | 22xRp3/4" | 0.09 kg | 43x37x37 mm | bag (10 pce) | 08711985094992 |
| 6341984 | 22xRp1" | 0.1 kg | 44x44x44 mm | bag (10 pce) | 08711985337273 |
| 6207806 | 28xRp1/2" | 0.16 kg | 38x47x47 mm | bag (10 pce) | 08711985132090 |
| 6209830 | 28xRp3/4" | 0.11 kg | 41x44x44 mm | bag (10 pce) | 08711985164084 |
| 6202416 | 28xRp1" | 0.16 kg | 49x47x47 mm | bag (10 pce) | 08711985095012 |
| 6340917 | 35xRp1/2" | 0.21 kg | 42x53x53 mm | bag (10 pce) | 08711985263466 |
| 6340928 | 35xRp3/4" | 0.2 kg | 43x53x53 mm | bag (10 pce) | 08711985263480 |
| 6340939 | 35xRp1" | 0.21 kg | 46x53x53 mm | bag (10 pce) | 08711985263503 |
| 6206695 | 35xRp1 1/4" | 0.14 kg | 50x53x53 mm | bag (10 pce) | 08711985149678 |
| 6341192 | 42xRp1 1/2" | 0.22 kg | 54x62x62 mm | bag (4 pce) | 08711985281217 |
| 6341203 | 54xRp2" | 0.36 kg | 63x77x77 mm | bag (4 pce) | 08711985281248 |

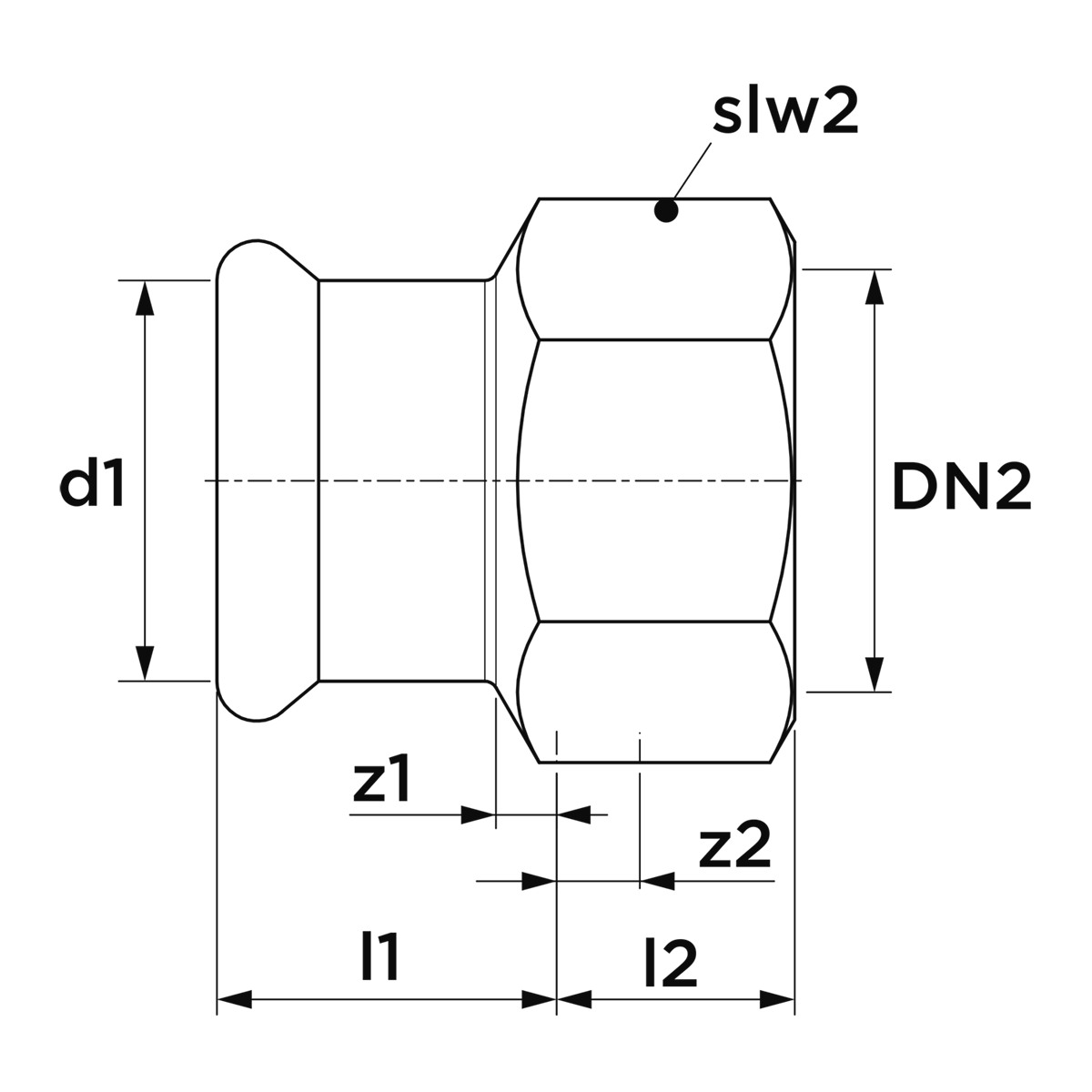

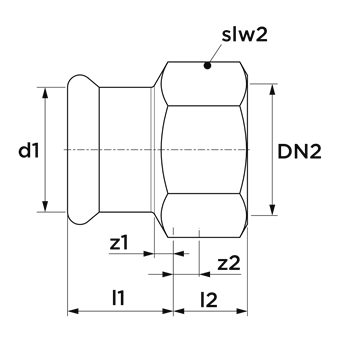

| item number | size | d1 | DN1 | l1 | z1 | d2 | DN2 | l2 | z2 | slw2 |
|---|---|---|---|---|---|---|---|---|---|---|
| 6202361 | 12xRp1/2" | 12.0 | DN10 | 20 | 3 | 21.3 | 1/2" (DN15) | 19 | 4 | 24 |
| 6202372 | 15xRp1/2" | 15.0 | DN12 | 22 | 2 | 21.3 | 1/2" (DN15) | 19 | 4 | 24 |
| 6202383 | 18xRp1/2" | 18.0 | DN15 | 21 | 1 | 21.3 | 1/2" (DN15) | 19 | 4 | 27 |
| 6202394 | 18xRp3/4" | 18.0 | DN15 | 23 | 3 | 26.9 | 3/4" (DN20) | 20 | 4 | 30 |
| 6340202 | 22xRp1/2" | 22.0 | DN20 | 22 | 1 | 21.3 | 1/2" (DN15) | 14 | 0 | 32 |
| 6202405 | 22xRp3/4" | 22.0 | DN20 | 23 | 2 | 26.9 | 3/4" (DN20) | 20 | 4 | 32 |
| 6341984 | 22xRp1" | 22.0 | DN20 | 24 | 3 | 33.7 | 1" (DN25) | 20 | 5 | 38 |
| 6207806 | 28xRp1/2" | 28.0 | DN25 | 24 | 1 | 21.3 | 1/2" (DN15) | 14 | 1 | 41 |
| 6209830 | 28xRp3/4" | 28.0 | DN25 | 24 | 1 | 26.9 | 3/4" (DN20) | 17 | 0 | 38 |
| 6202416 | 28xRp1" | 28.0 | DN25 | 26 | 3 | 33.7 | 1" (DN25) | 23 | 4 | 41 |
| 6340917 | 35xRp1/2" | 35.0 | DN32 | 30 | 4 | 21.3 | 1/2" (DN15) | 12 | 1 | 46 |
| 6340928 | 35xRp3/4" | 35.0 | DN32 | 28 | 2 | 26.9 | 3/4" (DN20) | 15 | 3 | 46 |
| 6340939 | 35xRp1" | 35.0 | DN32 | 33 | 7 | 33.7 | 1" (DN25) | 13 | 0 | 46 |
| 6206695 | 35xRp1 1/4" | 35.0 | DN32 | 28 | 2 | 42.4 | 1 1/4" (DN32) | 22 | 7 | 46 |
| 6341192 | 42xRp1 1/2" | 42.0 | DN40 | 32 | 2 | 48.3 | 1 1/2" (DN40) | 22 | 6 | 54 |
| 6341203 | 54xRp2" | 54.0 | DN50 | 37 | 2 | 60.3 | 2" (DN50) | 26 | 8 | 67 |
| color | silver |
|---|---|
| materials | steel (St 34.2 (1.0034)) |
| finishing | galvanised |
| manufacturer | Aalberts integrated piping systems B.V. (VSH) |
| shape | straight |
| connection type | press (M), Rp - female thread cylindrical (BSPT) |
| sealing | EPDM |
| product group | fittings |
|---|---|
| ETIM class | EC003024 Fitting with 2 connections |
| HS code | 73079980 |
| brand | VSH |
| series | XPress Carbon |
| type | C1402 |
| UNSPS | 40172502 |
| SCIP | 233056dc-cd46-44db-9410-a4845109c0f6 |
ATG3056_XPress_Carbon_F certifications |
download | |
 C1402 image |
png | download |
EPD-VSH-XPress-Carbon Environmental Product Declaration |
download | |
SDS VSH XPress Carbon link to sheet |
download | |
VSH XPress Carbon LPCB certifications |
download | |
VSH XPress Carbon Lloyds Register certifications |
download | |
VSH XPress Carbon SBSC certifications |
download | |
VSH XPress QB certifications |
download | |
VSH _XPress_VdS certifications |
download | |
VSH_XPress_Carbon-SPF certifications |
download | |
VSH_XPress_Galvanized_RINA certifications |
download | |
VSH_XPress_carbon_RISE certifications |
download | |
ATG3056_XPress_Carbon certifications |
download | |
 Diagram diagram |
png | download |
VSH XPress Carbon&Stainless Bureau Veritas certifications |
download | |
VSH XPress installation instructions installation- & maintenance document |
download |
| label | value |
|---|---|
| ETIM class | EC003024 Fitting with 2 connections |
| Material connection 1 | Steel |
| Material quality connection 1 | St 34.2 (1.0034) |
| Surface protection connection 1 | Galvanic/electrolytic zinc plated |
| Material connection 2 | Steel |
| Material quality connection 2 | St 34.2 (1.0034) |
| Surface protection connection 2 | Galvanic/electrolytic zinc plated |
| Shape | Straight |
| Model | 1-part |
| Reducing | No |
| Eccentric | No |
| System specific | Yes |
| Wall thickness, connection 1 | 1.5mm |
| Connection 1 | Press sleeve |
| Contour code connection 1 | M |
| Connection 2 | Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1) |
| Main colour fitting | Grey |
| Flange compression class | PN 16 |
| Material sealing | Ethylene-propylene diene monomer rubber (EPDM) |
| With buffer stud | Yes |
| High tensile strength | Yes |
| Medium temperature (continuous) | -35°C - 135°C |
| Medium temperature (continuous) (imperial) | -31°F - 275°F |
| Max. operating pressure at 20 °C | 16bar |
| Max. operating pressure at 20 °C (imperial) | 232.06psi |
| With thermal insulation | No |
| With sealing rings/gaskets | No |
| Capped | No |
| With connection indicator | No |
| With drain valve | No |
| With de-aerator | No |
| FM quality mark | No |
| ULC quality mark | No |
| UL quality mark | No |
| DIN-CERTCO certificate | No |
| With approval for TÜV | No |
| DVGW quality mark for gas | No |
| DVGW quality mark for water | No |
| Certified according to NF 545 | No |
| KIWA certified | No |
| Gastec QA mark | No |
| KOMO certified | No |
| Type approval according to BBR/EKS | No |
