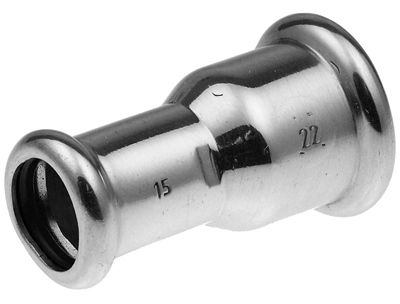

VSH XPress Copper reducer Chrome Plated (2 x press)

group: 7240C

The VSH XPress 7240C is a chrome plated copper reducer with a 2 press ends. By using VSH XPress in your piping installation you can install in a quick, easy and clean way. VSH XPress provides a complete piping system suitable for every conceivable application.

  • insert stop: stop edge for pipe end
  • provided with all relevant approvals
  • Leak Before Pressed-function
  • clear identification on fitting of material and dimension
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

heating

heating

cooling

cooling

compressed air

compressed air

vacuum

vacuum

segments

residential

residential

commercial building

commercial building

industry

industry

shipbuilding

shipbuilding

approvals

BSI Kitemark

BSI Kitemark

RISE

RISE

WRAS

WRAS

item number

size

d1

DN1

l1

d2

DN2

l2

z2

item number

4809442

size

15x12 Cr

d1

15.0

DN1

DN12

l1

23

d2

12.0

DN2

DN10

l2

21

z2

4

item number

4809453

size

22x15 Cr

d1

22.0

DN1

DN20

l1

28

d2

15.0

DN2

DN12

l2

24

z2

4

technical drawing for product

characteristics

color

copper

materials

copper (CW024A (UNS C12200))

finishing

chromed

manufacturer

Aalberts integrated piping systems B.V. (VSH)

shape

straight, reducer

connection type

press (M)

sealing

EPDM

general

product group

fittings

ETIM class

EC003024 Fitting with 2 connections

HS code

74121000

brand

VSH

series

XPress Copper

type

7240C

label

value

label

Material connection 1

value

Copper

label

Material quality connection 1

value

Cu-DHP (CW024A)

label

Surface protection connection 1

value

Chromium-plated

label

Material connection 2

value

Copper

label

Surface protection connection 2

value

Chromium-plated

label

Shape

value

Straight

label

Model

value

1-part

label

Reducing

value

Yes

label

Eccentric

value

No

label

System specific

value

Yes

label

Connection 1

value

Press sleeve

label

Contour code connection 1

value

M

label

Wall thickness, connection 2

value

1.3mm

label

Connection 2

value

Press sleeve

label

Contour code connection 2

value

M

label

Main colour fitting

value

Copper

label

Flange compression class (PN)

value

PN 16

label

Material sealing

value

Ethylene-propylene diene monomer rubber (EPDM)

label

With buffer stud

value

Yes

label

High tensile strength

value

Yes

label

Length

value

20mm

label

Working length connection 2

value

4mm

label

Working length connection 2 (imperial)

value

0.16"

label

Medium temperature (continuous)

value

-20°C - 110°C

label

Medium temperature (continuous) (imperial)

value

-4°F - 230°F

label

Max. operating pressure at 20 °C

value

16bar

label

Max. operating pressure at 20 °C (imperial)

value

232.06psi

label

With thermal insulation

value

No

label

With sealing rings/gaskets

value

No

label

Capped

value

No

label

With connection indicator

value

No

label

With de-aerator

value

No

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

DIN-CERTCO certificate

value

No

label

VdS quality mark

value

No

label

With approval for TÜV

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

Certified according to NF 545

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No

label

Type approval according to BBR/EKS

value

No
