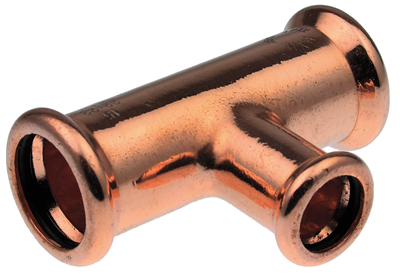

The VSH XPress 7128 is a copper reduced T-piece with 3 press ends. By using VSH XPress in your piping installation you can install in a quick, easy and clean way. VSH XPress provides a complete piping system suitable for every conceivable application.
applications
solutions
approvals
| item number | size | weight | dimensions | packaging | gtin |
|---|---|---|---|---|---|
| 4805669 | 12x12x15 | 0.08 kg | 23x42x102 mm | bag (10 pce) | 05022050229700 |
| 4801742 | 15x15x18 | 0.09 kg | 25x45x70 mm | bag (10 pce) | 05022050194756 |
| 4801753 | 15x15x22 | 0.11 kg | 30x45x75 mm | bag (10 pce) | 05022050385468 |
| 4802050 | 22x22x28 | 0.19 kg | 35x60x90 mm | bag (5 pce) | 05022050144324 |
| 4800191 | 28x28x35 | 0.32 kg | 70x136x70 mm | bag (5 pce) | 05022050385673 |
| item number | size | d1 | DN1 | l1 | z1 | d2 | DN2 | l2 | z2 | d3 | DN3 | l3 | z3 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4805669 | 12x12x15 | 12.0 | DN10 | 36 | 19 | 15.0 | DN12 | 32 | 15 | 12.0 | DN10 | 36 | 19 |
| 4801742 | 15x15x18 | 15.0 | DN12 | 35 | 15 | 18.0 | DN15 | 32 | 12 | 15.0 | DN12 | 35 | 15 |
| 4801753 | 15x15x22 | 15.0 | DN12 | 38 | 18 | 22.0 | DN20 | 34 | 13 | 15.0 | DN12 | 38 | 18 |
| 4802050 | 22x22x28 | 22.0 | DN20 | 52 | 31 | 28.0 | DN25 | 42 | 19 | 22.0 | DN20 | 52 | 31 |
| 4800191 | 28x28x35 | 28.0 | DN25 | 68 | 45 | 35.0 | DN32 | 50 | 24 | 28.0 | DN25 | 68 | 45 |
| color | copper |
|---|---|
| materials | copper (CW024A (UNS C12200)) |
| finishing | none |
| manufacturer | Aalberts integrated piping systems B.V. (VSH) |
| shape | T-piece, reducer (90º) |
| connection type | press (M), Press (M) |
| sealing | EPDM |
| product group | fittings |
|---|---|
| ETIM class | EC003025 Fitting with 3 connections |
| HS code | 74122000 |
| brand | VSH |
| series | XPress Copper |
| type | 7128 |
| UNSPS | 40174612 |
 7128 image |
png | download |
VSH XPress Copper RISE 12-108 mm SE certifications |
download | |
VSH_XPress_Copper_WRAS certifications |
download | |
XPress Copper BSI certifications |
download | |
XPress Copper DVGW Water certifications |
download | |
XPress Copper KIWA certifications |
download | |
XPress_Copper_ATG certifications |
download | |
XPress_Copper_QB certifications |
download | |
XPress_Copper_SINTEF certifications |
download | |
XPress_Copper_Water_OVGW certifications |
download | |
XPress_DNV certifications |
download | |
 Diagram diagram |
png | download |
VSH XPress Copper RISE 12-108 mm EN certifications |
download | |
VSH XPress installation instructions installation- & maintenance document |
download |
| label | value |
|---|---|
| ETIM class | EC003025 Fitting with 3 connections |
| Material connection 1 | Copper |
| Material quality connection 1 | Cu-DHP (CW024A) |
| Surface protection connection 1 | Untreated |
| Surface treatment connection 1 | Untreated |
| Material connection 2 | Copper |
| Surface protection connection 2 | Untreated |
| Surface treatment connection 2 | Untreated |
| Material connection 3 | Copper |
| Material quality connection 3 | Cu-DHP (CW024A) |
| Surface protection connection 3 | Untreated |
| Surface treatment connection 3 | Untreated |
| Model | T-piece |
| Angle | 90° |
| Reducing | Yes |
| Multi-part | No |
| System specific | Yes |
| Connection 1 | Press sleeve |
| Contour code connection 1 | M |
| Connection 2 | Press sleeve |
| Contour code connection 2 | M |
| Connection 3 | Press sleeve |
| Contour code connection 3 | M |
| Flange compression class | PN 16 |
| Material sealing | Ethylene-propylene diene monomer rubber (EPDM) |
| High tensile strength | Yes |
| Max. operating pressure at 20 °C | 16bar |
| Max. operating pressure at 20 °C (imperial) | 232.06psi |
| Medium temperature (continuous) | -20°C - 110°C |
| Medium temperature (continuous) (imperial) | -4°F - 230°F |
| With sealing rings/gaskets | No |
| With de-aerator | No |
| With thermal insulation | No |
| With buffer stud | Yes |
| Capped | No |
| With connection indicator | No |
| FM quality mark | No |
| LPCB quality mark | No |
| ULC quality mark | No |
| UL quality mark | No |
| DIN-CERTCO certificate | No |
| VdS quality mark | No |
| With approval for TÜV | No |
| DVGW quality mark for gas | No |
| DVGW quality mark for water | Yes |
| KIWA certified | Yes |
| Gastec QA mark | No |
| KOMO certified | No |
| Type approval according to BBR/EKS | No |
| item number | description | |
|---|---|---|
 |
6115945 | VSH XPress Copper O-ring EPDM 28 |
 |
4805240 | VSH XPress Copper O-ring FPM 28 |
|
4805251 | VSH XPress Copper O-ring FPM 35 |
|
6115956 | VSH XPress Copper O-ring EPDM 35 |
 |
6212657 | VSH XPress Copper insert depth marker 12-108 |
|
6115912 | VSH XPress Copper O-ring EPDM 15 |
|
4805218 | VSH XPress Copper O-ring FPM 15 |
|
6115923 | VSH XPress Copper O-ring EPDM 18 |
|
4805229 | VSH XPress Copper O-ring FPM 18 |
|
6115934 | VSH XPress Copper O-ring EPDM 22 |
|
4805231 | VSH XPress Copper O-ring FPM 22 |
|
4805207 | VSH XPress Copper O-ring FPM 12 |
|
6115901 | VSH XPress Copper O-ring EPDM 12 |
| item number | description | ||
|---|---|---|---|
|
6115901 | VSH XPress Copper O-ring EPDM 12 | 2 |
|
6115912 | VSH XPress Copper O-ring EPDM 15 | 2 |
|
6115923 | VSH XPress Copper O-ring EPDM 18 | 1 |
|
6115934 | VSH XPress Copper O-ring EPDM 22 | 1 |
|
6115945 | VSH XPress Copper O-ring EPDM 28 | 2 |
|
6115956 | VSH XPress Copper O-ring EPDM 35 | 1 |
