VSH XPress Copper elbow 90° reduced (2 x press)

group: 7002R

The VSH XPress 7002R is a copper 90° elbow reduced with 2 press ends. By using VSH XPress in your piping installation you can install in a quick, easy and clean way. VSH XPress provides a complete piping system suitable for every conceivable application.

  • insert stop: stop edge for pipe end
  • provided with all relevant approvals
  • Leak Before Pressed-function
  • clear identification on fitting of material and dimension
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

heating

heating

cooling

cooling

compressed air

compressed air

vacuum

vacuum

segments

residential

residential

commercial building

commercial building

industry

industry

shipbuilding

shipbuilding

approvals

ATG

ATG

DNV-GL

DNV-GL

SINTEF

SINTEF

item number

size

d1

DN1

l1

z1

DN2

l2

z2

radius

angle

item number

4804987

size

22x15

d1

22.0

DN1

DN20

l1

48

z1

27

DN2

DN12

l2

53

z2

33

radius

90

angle

90

technical drawing for product

characteristics

color

copper

materials

copper (CW024A (UNS C12200))

finishing

none

shape

Bend, reducer (90º)

connection type

press (M)

sealing

EPDM

general

product group

fittings

ETIM class

EC003024 Fitting with 2 connections

HS code

74122000

brand

VSH

series

XPress Copper

type

7002R

technical

max operating pressure liquid

16 bar

min. medium temperature

-20 °C

max medium temperature

110 °C

peak medium temperature

135 °C

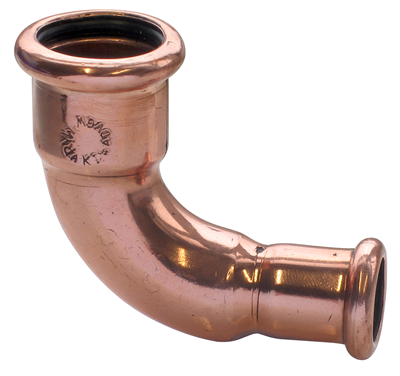

image for 7002R

image | png

7002R

image for Diagram

diagram | png

Diagram

installation- & maintenance document | pdf

VSH XPress installation instructions

certifications | pdf

XPress_Copper_ATG

certifications | pdf

XPress_Copper_SINTEF

certifications | pdf

XPress_Copper_Water_OVGW

certifications | pdf

XPress_DNV

label

value

label

Material connection 1

value

Copper

label

Material quality connection 1

value

Cu-DHP (CW024A)

label

Surface protection connection 1

value

Untreated

label

Surface treatment connection 1

value

Untreated

label

Material connection 2

value

Copper

label

Surface protection connection 2

value

Untreated

label

Surface treatment connection 2

value

Untreated

label

Shape

value

Bend

label

Model

value

1-part

label

Bend angle

value

90°

label

Bend radius

value

90mm

label

Bend radius (imperial)

value

3.54"

label

Reducing

value

Yes

label

Eccentric

value

No

label

System specific

value

Yes

label

Nominal diameter connection 1

value

DN 20

label

Outer pipe diameter connection 1

value

22mm

label

Outer pipe diameter connection 1 (imperial)

value

0.87"

label

Wall thickness, connection 1

value

1.4mm

label

Wall thickness, connection 1 (imperial)

value

0.06"

label

Connection 1

value

Press sleeve

label

Contour code connection 1

value

M

label

Nominal diameter connection 2

value

DN 12

label

Connection 2

value

Press sleeve

label

Contour code connection 2

value

M

label

Main colour fitting

value

Copper

label

Flange compression class (PN)

value

PN 16

label

Material sealing

value

Ethylene-propylene diene monomer rubber (EPDM)

label

With buffer stud

value

Yes

label

High tensile strength

value

Yes

label

Length

value

30mm

label

Length of connection 1

value

48mm

label

Length of connection 1 (imperial)

value

1.89"

label

Working length connection 1

value

27mm

label

Working length connection 1 (imperial)

value

1.06"

label

Length of connection 2

value

53mm

label

Length of connection 2 (imperial)

value

2.09"

label

Working length connection 2

value

33mm

label

Working length connection 2 (imperial)

value

1.3"

label

Medium temperature (continuous)

value

-20°C - 110°C

label

Medium temperature (continuous) (imperial)

value

-4°F - 230°F

label

Max. operating pressure at 20 °C

value

16bar

label

Max. operating pressure at 20 °C (imperial)

value

232.06psi

label

With thermal insulation

value

No

label

With sealing rings/gaskets

value

No

label

Capped

value

No

label

With connection indicator

value

No

label

With de-aerator

value

No

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

DIN-CERTCO certificate

value

No

label

VdS quality mark

value

No

label

With approval for TÜV

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

Certified according to NF 545

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No

label

Type approval according to BBR/EKS

value

No

item number

carbon footprint (A-C) embodied carbon

data source

item number

4804987

carbon footprint (A-C) embodied carbon

0.33kgCO2e

data source

TM65
