VSH XPress Copper straight union (press x male thread)

group: 6331G

The VSH XPress 6331G is a gunmetal straight union connector with a press and a male thread end. By using VSH XPress in your piping installation you can install in a quick, easy and clean way. VSH XPress provides a complete piping system suitable for every conceivable application.
  • insert stop: stop edge for pipe end
  • provided with all relevant approvals
  • Leak Before Pressed-function
  • clear identification on fitting of material and dimension
Union couplings should be combined with male threaded counterparts with appropriate support for the seal.
  1. check the quality and integrity of theflat sealing. Sealing and support flats must be clean and free of indentations
  2. mount the union on the male thread until hand tight
  3. apply 1/8 to 1/4 turn, using a matching spanner. Over-turning might cause damage to the sealing ring
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

heating

heating

cooling

cooling

compressed air

compressed air

vacuum

vacuum

segments

residential

residential

commercial building

commercial building

industry

industry

shipbuilding

shipbuilding

approvals

ATG

ATG

BSI Kitemark

BSI Kitemark

DNV-GL

DNV-GL

DVGW Wasser

DVGW Wasser

KIWA

KIWA

ÖVGW Wasser

ÖVGW Wasser

QB (CSTBat)

QB (CSTBat)

RISE

RISE

SINTEF

SINTEF

ÜA

ÜA

WRAS

WRAS

item number

size

d1

DN1

l1

z1

slw1

d2

DN2

l2

z2

slw2

item number

4802578

size

12xR3/8"

d1

12.0

DN1

DN10

l1

21

z1

3

slw1

24

d2

17.2

DN2

3/8" (DN10)

l2

27

z2

21

slw2

19

item number

4802589

size

12xR1/2"

d1

12.0

DN1

DN10

l1

22

z1

5

slw1

27

d2

21.3

DN2

1/2" (DN15)

l2

32

z2

23

slw2

25

item number

4802591

size

15xR1/2"

d1

15.0

DN1

DN12

l1

30

z1

10

slw1

30

d2

21.3

DN2

1/2" (DN15)

l2

32

z2

24

slw2

25

item number

4802600

size

15xR3/4"

d1

15.0

DN1

DN12

l1

25

z1

5

slw1

30

d2

26.9

DN2

3/4" (DN20)

l2

33

z2

23

slw2

25

item number

4802611

size

18xR1/2"

d1

18.0

DN1

DN15

l1

28

z1

8

slw1

30

d2

21.3

DN2

1/2" (DN15)

l2

31

z2

23

slw2

25

item number

4802622

size

18xR3/4"

d1

18.0

DN1

DN15

l1

28

z1

8

slw1

30

d2

26.9

DN2

3/4" (DN20)

l2

33

z2

24

slw2

25

item number

4802633

size

22xR1/2"

d1

22.0

DN1

DN20

l1

29

z1

8

slw1

36

d2

21.3

DN2

1/2" (DN15)

l2

37

z2

28

slw2

32

item number

4802644

size

22xR3/4"

d1

22.0

DN1

DN20

l1

36

z1

15

slw1

36

d2

26.9

DN2

3/4" (DN20)

l2

38

z2

28

slw2

32

item number

4802655

size

22xR1"

d1

22.0

DN1

DN20

l1

29

z1

8

slw1

36

d2

33.7

DN2

1" (DN25)

l2

39

z2

28

slw2

32

item number

4805561

size

28xR3/4"

d1

28.0

DN1

DN25

l1

36

z1

13

slw1

46

d2

26.9

DN2

3/4" (DN20)

l2

39

z2

30

slw2

40

item number

4802666

size

28xR1"

d1

28.0

DN1

DN25

l1

36

z1

13

slw1

46

d2

33.7

DN2

1" (DN25)

l2

40

z2

30

slw2

40

item number

4802677

size

35xR1 1/4"

d1

35.0

DN1

DN32

l1

36

z1

10

slw1

52

d2

42.4

DN2

1 1/4" (DN32)

l2

43

z2

24

slw2

46

item number

4802688

size

42xR1 1/2"

d1

42.0

DN1

DN40

l1

44

z1

14

slw1

58

d2

48.3

DN2

1 1/2" (DN40)

l2

44

z2

31

slw2

51

item number

4802699

size

54xR2"

d1

54.0

DN1

DN50

l1

52

z1

17

slw1

75

d2

60.3

DN2

2" (DN50)

l2

49

z2

33

slw2

65

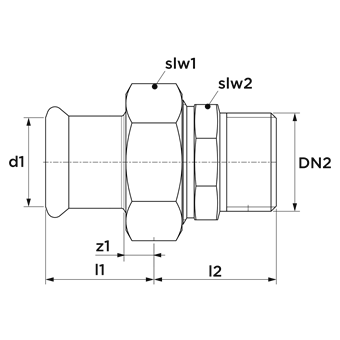

technical drawing for product

characteristics

color

copper

materials

bronze (EN CC499K)

finishing

none

shape

straight, reducer

connection type

press (M), R - male thread gas conical (BSPT)

sealing

EPDM

general

product group

fittings (unions)

ETIM class

EC003024 Fitting with 2 connections

HS code

74122000

brand

VSH

series

XPress Copper

type

6331G

SCIP

966cd6bc-74ae-47a8-951b-016935a13ff8

technical

max operating pressure liquid

16 bar

min. medium temperature

-20 °C

max medium temperature

110 °C

peak medium temperature

135 °C

image for 6331G

image | png

6331G

image for Diagram

diagram | png

Diagram

link to sheet | pdf

MSDS_VSH_XPress_Copper

certifications | pdf

VSH XPress Copper RISE 12-108 mm SE

certifications | pdf

VSH_XPress_Copper_WRAS

certifications | pdf

XPress Copper BSI

certifications | pdf

XPress Copper DVGW Water

certifications | pdf

XPress Copper KIWA

certifications | pdf

XPress_Copper_ATG

certifications | pdf

XPress_Copper_QB

certifications | pdf

XPress_Copper_SINTEF

certifications | pdf

XPress_Copper_Water_OVGW

certifications | pdf

XPress_DNV

certifications | pdf

VSH XPress Copper RISE 12-108 mm EN

installation- & maintenance document | pdf

VSH XPress installation instructions

label

value

label

Material connection 1

value

Bronze

label

Material quality connection 1

value

CuSn5Zn5Pb2

label

Surface protection connection 1

value

Untreated

label

Surface treatment connection 1

value

Untreated

label

Material connection 2

value

Bronze

label

Material quality connection 2

value

CuSn5Zn5Pb2

label

Surface protection connection 2

value

Untreated

label

Surface treatment connection 2

value

Untreated

label

Shape

value

Straight

label

Model

value

3-part

label

Eccentric

value

No

label

System specific

value

Yes

label

Connection 1

value

Press sleeve

label

Contour code connection 1

value

M

label

Connection 2

value

External thread conical BSPT-R (ISO 7-1 / EN 10226-1)

label

Main colour fitting

value

Copper

label

Flange compression class (PN)

value

PN 16

label

Material sealing

value

Ethylene-propylene diene monomer rubber (EPDM)

label

With buffer stud

value

Yes

label

High tensile strength

value

Yes

label

Medium temperature (continuous)

value

-20°C - 110°C

label

Medium temperature (continuous) (imperial)

value

-4°F - 230°F

label

Max. operating pressure at 20 °C

value

16bar

label

Max. operating pressure at 20 °C (imperial)

value

232.06psi

label

With thermal insulation

value

No

label

With sealing rings/gaskets

value

Yes

label

Capped

value

No

label

With connection indicator

value

No

label

With de-aerator

value

No

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

DIN-CERTCO certificate

value

No

label

VdS quality mark

value

No

label

With approval for TÜV

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

Yes

label

Certified according to NF 545

value

No

label

KIWA certified

value

Yes

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No

label

Type approval according to BBR/EKS

value

No

item number

carbon footprint (A-C) embodied carbon

data source

item number

4802578

carbon footprint (A-C) embodied carbon

0.37kgCO2e

data source

TM65

item number

4802589

carbon footprint (A-C) embodied carbon

0.63kgCO2e

data source

TM65

item number

4802591

carbon footprint (A-C) embodied carbon

0.66kgCO2e

data source

TM65

item number

4802600

carbon footprint (A-C) embodied carbon

0.77kgCO2e

data source

TM65

item number

4802611

carbon footprint (A-C) embodied carbon

0.67kgCO2e

data source

TM65

item number

4802622

carbon footprint (A-C) embodied carbon

0.78kgCO2e

data source

TM65

item number

4802633

carbon footprint (A-C) embodied carbon

1.05kgCO2e

data source

TM65

item number

4802644

carbon footprint (A-C) embodied carbon

1.1kgCO2e

data source

TM65

item number

4802655

carbon footprint (A-C) embodied carbon

1.37kgCO2e

data source

TM65

item number

4805561

carbon footprint (A-C) embodied carbon

1.73kgCO2e

data source

TM65

item number

4802666

carbon footprint (A-C) embodied carbon

1.82kgCO2e

data source

TM65

item number

4802677

carbon footprint (A-C) embodied carbon

2.26kgCO2e

data source

TM65

item number

4802688

carbon footprint (A-C) embodied carbon

3.13kgCO2e

data source

TM65

item number

4802699

carbon footprint (A-C) embodied carbon

4.91kgCO2e

data source

TM65
