VSH XPress Copper angle adapter 90° (press x female thread)

group: 6090G

The VSH XPress 6090G is a gunmetal 90° angle adapter with a press and a female thread end. By using VSH XPress in your piping installation you can install in a quick, easy and clean way. VSH XPress provides a complete piping system suitable for every conceivable application.

  • insert stop: stop edge for pipe end
  • provided with all relevant approvals
  • Leak Before Pressed-function
  • clear identification on fitting of material and dimension
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

heating

heating

cooling

cooling

compressed air

compressed air

vacuum

vacuum

segments

residential

residential

commercial building

commercial building

industry

industry

shipbuilding

shipbuilding

approvals

ATG

ATG

BSI Kitemark

BSI Kitemark

DNV-GL

DNV-GL

DVGW Wasser

DVGW Wasser

KIWA

KIWA

ÖVGW Wasser

ÖVGW Wasser

QB (CSTBat)

QB (CSTBat)

RISE

RISE

SINTEF

SINTEF

ÜA

ÜA

WRAS

WRAS

item number

size

dimensions

weight

packaging

gtin

item number

4801478

size

12xRp3/8"

dimensions

24x27x52 mm

weight

0.06 kg

packaging

bag (5 pce)

gtin

05022050124975

item number

4801489

size

12xRp1/2"

dimensions

28x30x50 mm

weight

0.07 kg

packaging

bag (5 pce)

gtin

05022050124814

item number

4801491

size

15xRp3/8"

dimensions

24x30x57 mm

weight

0.07 kg

packaging

bag (5 pce)

gtin

05022050125132

item number

4801500

size

15xRp1/2"

dimensions

28x35x55 mm

weight

0.1 kg

packaging

bag (10 pce)

gtin

05022050014122

item number

4805570

size

15xRp3/4"

dimensions

15x45x60 mm

weight

0.11 kg

packaging

bag (10 pce)

gtin

05022050183521

item number

4801511

size

18xRp1/2"

dimensions

28x35x55 mm

weight

0.09 kg

packaging

bag (5 pce)

gtin

05022050125378

item number

4801522

size

18xRp3/4"

dimensions

33x35x70 mm

weight

0.12 kg

packaging

bag (5 pce)

gtin

05022050125651

item number

4801533

size

22xRp1/2"

dimensions

30x48x53 mm

weight

0.13 kg

packaging

bag (5 pce)

gtin

05022050125811

item number

4801544

size

22xRp3/4"

dimensions

35x45x65 mm

weight

0.12 kg

packaging

bag (5 pce)

gtin

05022050014139

item number

4801555

size

28xRp1"

dimensions

40x50x70 mm

weight

0.21 kg

packaging

bag (5 pce)

gtin

05022050014146

item number

4801566

size

35xRp1 1/4"

dimensions

53x70x85 mm

weight

0.36 kg

packaging

bag (5 pce)

gtin

05022050014153

item number

4801577

size

42xRp1 1/2"

dimensions

55x85x95 mm

weight

0.49 kg

packaging

bag (1 pce)

gtin

05022050383563

item number

4801588

size

54xRp2"

dimensions

70x85x135 mm

weight

0.77 kg

packaging

bag (1 pce)

gtin

05022050383570

item number

size

d1

DN1

l1

z1

d2

DN2

l2

z2

slw0

item number

4801478

size

12xRp3/8"

d1

12.0

DN1

DN10

l1

39

z1

22

d2

17.2

DN2

3/8" (DN10)

l2

18

z2

10

slw0

15

item number

4801489

size

12xRp1/2"

d1

12.0

DN1

DN10

l1

39

z1

22

d2

21.3

DN2

1/2" (DN15)

l2

20

z2

7

slw0

26

item number

4801491

size

15xRp3/8"

d1

15.0

DN1

DN12

l1

43

z1

23

d2

17.2

DN2

3/8" (DN10)

l2

18

z2

11

slw0

18

item number

4801500

size

15xRp1/2"

d1

15.0

DN1

DN12

l1

41

z1

21

d2

21.3

DN2

1/2" (DN15)

l2

23

z2

12

slw0

18

item number

4805570

size

15xRp3/4"

d1

15.0

DN1

DN12

l1

36

z1

16

d2

26.9

DN2

3/4" (DN20)

l2

29

z2

13

slw0

31

item number

4801511

size

18xRp1/2"

d1

18.0

DN1

DN15

l1

41

z1

21

d2

21.3

DN2

1/2" (DN15)

l2

24

z2

14

slw0

21

item number

4801522

size

18xRp3/4"

d1

18.0

DN1

DN15

l1

52

z1

32

d2

26.9

DN2

3/4" (DN20)

l2

25

z2

12

slw0

21

item number

4801533

size

22xRp1/2"

d1

22.0

DN1

DN20

l1

37

z1

16

d2

21.3

DN2

1/2" (DN15)

l2

32

z2

13

slw0

25

item number

4801544

size

22xRp3/4"

d1

22.0

DN1

DN20

l1

45

z1

24

d2

26.9

DN2

3/4" (DN20)

l2

27

z2

11

slw0

25

item number

4801555

size

28xRp1"

d1

28.0

DN1

DN25

l1

51

z1

28

d2

33.7

DN2

1" (DN25)

l2

33

z2

14

slw0

33

item number

4801566

size

35xRp1 1/4"

d1

35.0

DN1

DN32

l1

55

z1

29

d2

42.4

DN2

1 1/4" (DN32)

l2

45

z2

21

slw0

46

item number

4801577

size

42xRp1 1/2"

d1

42.0

DN1

DN40

l1

63

z1

35

d2

48.3

DN2

1 1/2" (DN40)

l2

52

z2

26

slw0

53

item number

4801588

size

54xRp2"

d1

54.0

DN1

DN50

l1

74

z1

42

d2

60.3

DN2

2" (DN50)

l2

60

z2

33

slw0

65

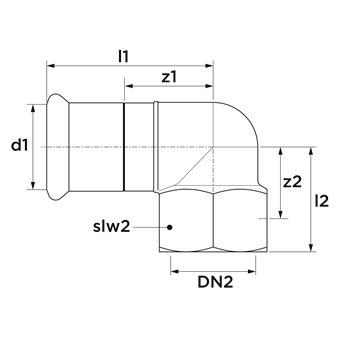

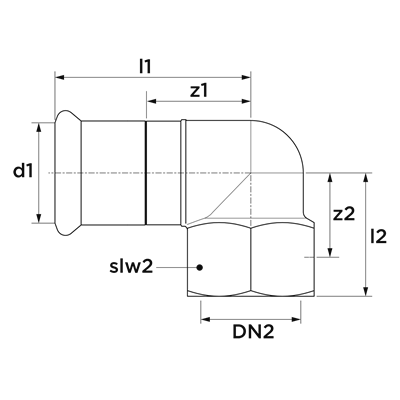

technical drawing for product

characteristics

color

copper

materials

bronze (EN CC499K)

finishing

none

shape

Elbow, reducer (90º)

connection type

press (M), Rp - female thread cylindrical (BSPT)

sealing

EPDM

general

product group

fittings

ETIM class

EC003024 Fitting with 2 connections

HS code

74122000

brand

VSH

series

XPress Copper

type

6090G

SCIP

966cd6bc-74ae-47a8-951b-016935a13ff8

technical

max operating pressure liquid

16 bar

min. medium temperature

-20 °C

max medium temperature

110 °C

peak medium temperature

135 °C

image for Diagram

diagram | png

Diagram

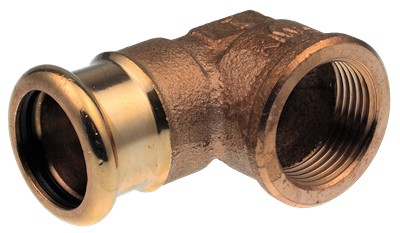

image for 6090G

image | png

6090G

installation- & maintenance document | pdf

VSH XPress installation instructions

certifications | pdf

EPD-VSH-XPress-Copper_12-28

certifications | pdf

EPD-VSH-XPress-Copper_35-108

link to sheet | pdf

MSDS_VSH_XPress_Copper

certifications | pdf

Reach declaration

certifications | pdf

VSH XPress Copper BSI Kitemark

certifications | pdf

VSH XPress Copper RISE 12-108 mm SE

certifications | pdf

VSH_XPress_Copper_WRAS

certifications | pdf

XPress Copper BSI

certifications | pdf

XPress Copper DVGW Water

certifications | pdf

XPress Copper KIWA

certifications | pdf

XPress_Copper_ATG

certifications | pdf

XPress_Copper_QB

certifications | pdf

XPress_Copper_SINTEF

certifications | pdf

XPress_Copper_Water_OVGW

certifications | pdf

XPress_DNV

certifications | pdf

VSH XPress Copper RISE 12-108 mm EN

image for 4801489

image | png

4801489

image for 4801522

image | png

4801522

label

value

label

Material connection 1

value

Bronze

label

Material quality connection 1

value

CuSn5Zn5Pb2

label

Surface protection connection 1

value

Untreated

label

Surface treatment connection 1

value

Untreated

label

Material connection 2

value

Bronze

label

Material quality connection 2

value

CuSn5Zn5Pb2

label

Surface protection connection 2

value

Untreated

label

Surface treatment connection 2

value

Untreated

label

Shape

value

Bend

label

Model

value

1-part

label

Bend angle

value

90°

label

Eccentric

value

No

label

System specific

value

Yes

label

Connection 1

value

Press sleeve

label

Contour code connection 1

value

M

label

Connection 2

value

Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1)

label

Main colour fitting

value

Copper

label

Flange compression class (PN)

value

PN 16

label

Material sealing

value

Ethylene-propylene diene monomer rubber (EPDM)

label

With buffer stud

value

Yes

label

High tensile strength

value

Yes

label

Medium temperature (continuous)

value

-20°C - 110°C

label

Medium temperature (continuous) (imperial)

value

-4°F - 230°F

label

Max. operating pressure at 20 °C

value

16bar

label

Max. operating pressure at 20 °C (imperial)

value

232.06psi

label

With thermal insulation

value

No

label

With sealing rings/gaskets

value

No

label

Capped

value

No

label

With connection indicator

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

DIN-CERTCO certificate

value

No

label

VdS quality mark

value

No

label

With approval for TÜV

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

Yes

label

Certified according to NF 545

value

No

label

KIWA certified

value

Yes

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No

label

Type approval according to BBR/EKS

value

No

item number

carbon footprint (A1-A3) cradle-to-gate

carbon footprint (A-C) embodied carbon

carbon footprint (A-D) cradle-to-cradle

data source

item number

4801478

carbon footprint (A1-A3) cradle-to-gate

0.19kgCO2e

carbon footprint (A-C) embodied carbon

0.22kgCO2e

carbon footprint (A-D) cradle-to-cradle

0.11kgCO2e

data source

EPD

item number

4801489

carbon footprint (A1-A3) cradle-to-gate

0.21kgCO2e

carbon footprint (A-C) embodied carbon

0.24kgCO2e

carbon footprint (A-D) cradle-to-cradle

0.13kgCO2e

data source

EPD

item number

4801491

carbon footprint (A1-A3) cradle-to-gate

0.21kgCO2e

carbon footprint (A-C) embodied carbon

0.24kgCO2e

carbon footprint (A-D) cradle-to-cradle

0.13kgCO2e

data source

EPD

item number

4801500

carbon footprint (A1-A3) cradle-to-gate

0.29kgCO2e

carbon footprint (A-C) embodied carbon

0.34kgCO2e

carbon footprint (A-D) cradle-to-cradle

0.18kgCO2e

data source

EPD

item number

4805570

carbon footprint (A1-A3) cradle-to-gate

0.33kgCO2e

carbon footprint (A-C) embodied carbon

0.38kgCO2e

carbon footprint (A-D) cradle-to-cradle

0.2kgCO2e

data source

EPD

item number

4801511

carbon footprint (A1-A3) cradle-to-gate

0.28kgCO2e

carbon footprint (A-C) embodied carbon

0.32kgCO2e

carbon footprint (A-D) cradle-to-cradle

0.17kgCO2e

data source

EPD

item number

4801522

carbon footprint (A1-A3) cradle-to-gate

0.37kgCO2e

carbon footprint (A-C) embodied carbon

0.42kgCO2e

carbon footprint (A-D) cradle-to-cradle

0.22kgCO2e

data source

EPD

item number

4801533

carbon footprint (A1-A3) cradle-to-gate

0.4kgCO2e

carbon footprint (A-C) embodied carbon

0.46kgCO2e

carbon footprint (A-D) cradle-to-cradle

0.24kgCO2e

data source

EPD

item number

4801544

carbon footprint (A1-A3) cradle-to-gate

0.35kgCO2e

carbon footprint (A-C) embodied carbon

0.4kgCO2e

carbon footprint (A-D) cradle-to-cradle

0.21kgCO2e

data source

EPD

item number

4801555

carbon footprint (A1-A3) cradle-to-gate

0.63kgCO2e

carbon footprint (A-C) embodied carbon

0.72kgCO2e

carbon footprint (A-D) cradle-to-cradle

0.38kgCO2e

data source

EPD

item number

4801566

carbon footprint (A1-A3) cradle-to-gate

1.45kgCO2e

carbon footprint (A-C) embodied carbon

1.65kgCO2e

carbon footprint (A-D) cradle-to-cradle

1.04kgCO2e

data source

EPD

item number

4801577

carbon footprint (A1-A3) cradle-to-gate

1.98kgCO2e

carbon footprint (A-C) embodied carbon

2.25kgCO2e

carbon footprint (A-D) cradle-to-cradle

1.42kgCO2e

data source

EPD

item number

4801588

carbon footprint (A1-A3) cradle-to-gate

3.13kgCO2e

carbon footprint (A-C) embodied carbon

3.55kgCO2e

carbon footprint (A-D) cradle-to-cradle

2.23kgCO2e

data source

EPD

have any questions?

feel free to contact us

product selected products selected

you can compare up to 2 products

you can compare up to 4 products

[saving downloads] requires an account

requires an account

send by email

optional
optional
optional

NEW: myIPS including submittal package builder

streamline your projects effortlessly with our new submittal package builder! Compile, customize, and download our comprehensive product data sheets.
