VSH Clamp straight connector (clamp x male thread)

group: 106

The VSH Clamp 106 is a galvanized brass straight connector, with a clamp and male thread end. Easy installation and high quality are the top priorities of the VSH Clamp product range.
  • simple installation with standard tools
  • quick connection technology allowing reassembly
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

heating

heating

segments

commercial building

commercial building

industry

industry

approvals

no approvals available

item number

size

dimensions

weight

packaging

gtin

item number

6321381

size

15xR3/8"

dimensions

40x26x28 mm

weight

0.07 kg

packaging

bag (10 pce)

gtin

08711985132410

item number

6321251

size

15xR1/2"

dimensions

45x26x28 mm

weight

0.07 kg

packaging

bag (10 pce)

gtin

08711985132434

item number

6321348

size

15xR3/4"

dimensions

44x28x32 mm

weight

0.09 kg

packaging

bag (10 pce)

gtin

08711985132472

item number

6321282

size

22xR1/2"

dimensions

45x35x38 mm

weight

0.12 kg

packaging

bag (10 pce)

gtin

08711985132458

item number

6321359

size

22xR3/4"

dimensions

46x35x38 mm

weight

0.12 kg

packaging

bag (10 pce)

gtin

08711985132496

item number

6321271

size

22xR1"

dimensions

51x42x37 mm

weight

0.17 kg

packaging

bag (10 pce)

gtin

08711985135848

item number

6321361

size

28xR3/4"

dimensions

49x42x46 mm

weight

0.17 kg

packaging

bag (10 pce)

gtin

08711985135886

item number

6321304

size

28xR1"

dimensions

52x42x46 mm

weight

0.18 kg

packaging

bag (10 pce)

gtin

08711985135862

item number

6321315

size

35xR1"

dimensions

60x54x54 mm

weight

0.28 kg

packaging

bag (5 pce)

gtin

08711985132519

item number

size

d1

DN1

l1

slw1

d2

DN2

z2

slw2

slw0

h

item number

6321381

size

15xR3/8"

d1

15.0

DN1

DN12

l1

22

slw1

24

d2

17.2

DN2

3/8" (DN10)

z2

18

slw2

22

slw0

22

h

6.5

item number

6321251

size

15xR1/2"

d1

15.0

DN1

DN12

l1

22

slw1

24

d2

21.3

DN2

1/2" (DN15)

z2

23

slw2

22

slw0

22

h

7

item number

6321348

size

15xR3/4"

d1

15.0

DN1

DN12

l1

22

slw1

24

d2

26.9

DN2

3/4" (DN20)

z2

22

slw2

27

slw0

27

h

5.6

item number

6321282

size

22xR1/2"

d1

22.0

DN1

DN20

l1

23

slw1

32

d2

21.3

DN2

1/2" (DN15)

z2

23

slw2

30

slw0

30

h

7

item number

6321359

size

22xR3/4"

d1

22.0

DN1

DN20

l1

23

slw1

32

d2

26.9

DN2

3/4" (DN20)

z2

23

slw2

30

slw0

30

h

6.5

item number

6321271

size

22xR1"

d1

22.0

DN1

DN20

l1

23

slw1

32

d2

33.7

DN2

1" (DN25)

z2

28

slw2

36

slw0

36

h

7.5

item number

6321361

size

28xR3/4"

d1

28.0

DN1

DN25

l1

24

slw1

39

d2

26.9

DN2

3/4" (DN20)

z2

25

slw2

36

slw0

36

h

7

item number

6321304

size

28xR1"

d1

28.0

DN1

DN25

l1

23

slw1

39

d2

33.7

DN2

1" (DN25)

z2

29

slw2

36

slw0

36

h

7.5

item number

6321315

size

35xR1"

d1

35.0

DN1

DN32

l1

30

slw1

46

d2

33.7

DN2

1" (DN25)

z2

30

slw2

42

slw0

46

h

9

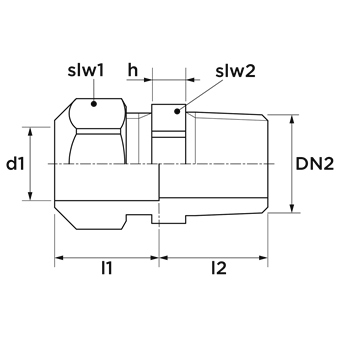

technical drawing for product

characteristics

color

silver

materials

brass (CW617N)

finishing

galvanised

shape

straight, reducer

connection type

clamp, R - male thread gas conical (BSPT)

sealing

Plastic sealing

general

product group

fittings (demountable)

ETIM class

EC003024 Fitting with 2 connections

HS code

74122000

brand

VSH

series

Clamp

type

106

UNSPS

40172501

SCIP

98ab3390-1a8e-4560-943d-8a0d9c101b3e

technical

max operating pressure liquid

6 bar

max medium temperature

90 °C

peak medium temperature

120 °C

image for 106

image | png

106

image for Diagram

diagram | png

Diagram

link to sheet | pdf

MSDS_VSH_Klem

certifications | pdf

Reach declaration

certifications | pdf

TM65 Embodied Carbon Declaration

label

value

label

Material connection 1

value

Brass

label

Material quality connection 1

value

CuZn40Pb2 (CW617N)

label

Surface protection connection 1

value

Galvanic/electrolytic zinc plated

label

Material connection 2

value

Brass

label

Material quality connection 2

value

CuZn40Pb2 (CW617N)

label

Surface protection connection 2

value

Galvanic/electrolytic zinc plated

label

Shape

value

Straight

label

Model

value

3-part

label

Eccentric

value

No

label

System specific

value

No

label

Connection 1

value

Clamp connection

label

Connection 2

value

External thread conical BSPT-R (ISO 7-1 / EN 10226-1)

label

Main colour fitting

value

Grey

label

Flange compression class (PN)

value

PN 10

label

With buffer stud

value

No

label

High tensile strength

value

Yes

label

Medium temperature (continuous)

value

0°C - 90°C

label

Medium temperature (continuous) (imperial)

value

32°F - 194°F

label

Max. operating pressure at 20 °C

value

6bar

label

Max. operating pressure at 20 °C (imperial)

value

87.02psi

label

With thermal insulation

value

No

label

With sealing rings/gaskets

value

No

label

Capped

value

No

label

With connection indicator

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

DIN-CERTCO certificate

value

No

label

VdS quality mark

value

No

label

With approval for TÜV

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

Certified according to NF 545

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No

label

Type approval according to BBR/EKS

value

No

item number

carbon footprint (A-C) embodied carbon

data source

item number

6321381

carbon footprint (A-C) embodied carbon

0.3kgCO2e

data source

TM65

item number

6321251

carbon footprint (A-C) embodied carbon

0.34kgCO2e

data source

TM65

item number

6321348

carbon footprint (A-C) embodied carbon

0.4kgCO2e

data source

TM65

item number

6321282

carbon footprint (A-C) embodied carbon

0.53kgCO2e

data source

TM65

item number

6321359

carbon footprint (A-C) embodied carbon

0.54kgCO2e

data source

TM65

item number

6321271

carbon footprint (A-C) embodied carbon

0.77kgCO2e

data source

TM65

item number

6321361

carbon footprint (A-C) embodied carbon

0.76kgCO2e

data source

TM65

item number

6321304

carbon footprint (A-C) embodied carbon

0.83kgCO2e

data source

TM65

item number

6321315

carbon footprint (A-C) embodied carbon

1.29kgCO2e

data source

TM65
