VSH Clamp elbow 90° (2 x clamp)

VSH Clamp elbow 90° (2 x clamp)

105

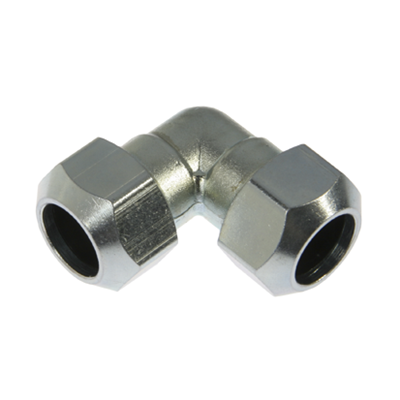

The VSH Clamp 105 is a galvanized brass 90° elbow with 2 clamp ends. Easy installation and high quality are the top priorities of the VSH Clamp product range.

  • simple installation with standard tools
  • quick connection technology allowing reassembly

applications

heating

solutions

building installations industry
item number size weight dimensions packaging gtin
6321095 15 0.09 kg 45x27x45 mm bag (10 pce) 08711985132755
6321141 22 0.15 kg 55x36x55 mm bag (10 pce) 08711985132793
6321172 28 0.23 kg 63x44x44 mm bag (10 pce) 08711985132830
6321194 35 0.35 kg 75x53x53 mm bag (5 pce) 08711985132854

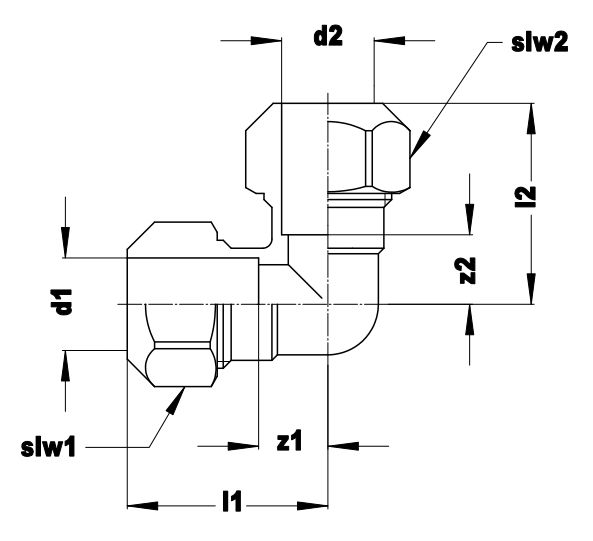

item number size d1 DN1 l1 z1 slw1 d2 DN2 l2 z2 slw2
6321095 15 15.0 DN12 33 11 24 15.0 DN12 33 11 24
6321141 22 22.0 DN20 38 15 32 22.0 DN20 38 15 32
6321172 28 28.0 DN25 42 18 39 28.0 DN25 42 18 39
6321194 35 35.0 DN32 49 19 46 35.0 DN32 49 19 46
see above for the diagram related to these dimensions
color silver
materials brass (CW617N)
finishing galvanised
manufacturer Aalberts integrated piping systems B.V. (VSH)
shape Elbow (90º)
connection type clamp
sealing Plastic sealing
product group fittings (demountable)
ETIM class EC003024 Fitting with 2 connections
HS code 74122000
brand VSH
series Clamp
type 105
UNSPS 40172801
SCIP 98ab3390-1a8e-4560-943d-8a0d9c101b3e
label value
ETIM class EC003024 Fitting with 2 connections
Material connection 1 Brass
Material quality connection 1 CuZn40Pb2 (CW617N)
Surface protection connection 1 Galvanic/electrolytic zinc plated
Material connection 2 Brass
Material quality connection 2 CuZn40Pb2 (CW617N)
Surface protection connection 2 Galvanic/electrolytic zinc plated
Shape Bend
Model 3-part
Bend angle 90°
Reducing No
Eccentric No
System specific No
Connection 1 Clamp connection
Connection 2 Clamp connection
Main colour fitting Grey
Flange compression class PN 10
With buffer stud Yes
High tensile strength Yes
Medium temperature (continuous) 0°C - 90°C
Medium temperature (continuous) (imperial) 32°F - 194°F
Max. operating pressure at 20 °C 6bar
Max. operating pressure at 20 °C (imperial) 87.02psi
With thermal insulation No
With sealing rings/gaskets No
Capped No
With connection indicator No
With drain valve No
With de-aerator No
FM quality mark No
LPCB quality mark No
ULC quality mark No
UL quality mark No
DIN-CERTCO certificate No
VdS quality mark No
With approval for TÜV No
DVGW quality mark for gas No
DVGW quality mark for water No
Certified according to NF 545 No
KIWA certified No
Gastec QA mark No
KOMO certified No
Type approval according to BBR/EKS No

accessories

item number description
6323251 VSH Clamp one piece reducer MF 15x12
6323451 VSH Clamp blanking plug M 15
6323548 VSH Clamp blanking plug & air release M 15
6323746 VSH Clamp ring 15
6323570 VSH Clamp nut F 15
6323295 VSH Clamp one piece reducer MF 22x15
6323328 VSH Clamp one piece reducer MF 22x18
6323339 VSH Clamp one piece reducer MF 22x20
6323482 VSH Clamp blanking plug M 22
6323669 VSH Clamp nut F 22
6323878 VSH Clamp ring 22
6323999 VSH Clamp stop end F 22
6323559 VSH Clamp blanking plug & air release M 22
6323341 VSH Clamp one piece reducer MF 28x15
6323350 VSH Clamp one piece reducer MF 28x22
6323493 VSH Clamp blanking plug M 28
6323680 VSH Clamp nut F 28
6323891 VSH Clamp ring 28
6324001 VSH Clamp stop end F 28
6323372 VSH Clamp one piece reducer MF 35x22
6323383 VSH Clamp one piece reducer MF 35x28
6323911 VSH Clamp ring 35
6324010 VSH Clamp stop end F 35

contains

item number description
6323570 VSH Clamp nut F 15 2
6323669 VSH Clamp nut F 22 2
6323680 VSH Clamp nut F 28 2
6323746 VSH Clamp ring 15 2
6323878 VSH Clamp ring 22 2
6323891 VSH Clamp ring 28 2
6323911 VSH Clamp ring 35 2
