VSH Clamp reducer (2 x clamp)

group: 104V

The VSH Clamp 104V is a galvanized brass reducing coupling, with 2 clamp ends. Easy installation and high quality are the top priorities of the VSH Clamp product range.
  • simple installation with standard tools
  • quick connection technology allowing reassembly
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

heating

heating

segments

commercial building

commercial building

industry

industry

approvals

no approvals available

item number

size

d1

DN1

l1

z1

slw1

d2

DN2

l2

z2

slw2

slw0

h

item number

6320974

size

22x15

d1

22.0

DN1

DN20

l1

26

z1

2

slw1

32

d2

15.0

DN2

DN12

l2

24

z2

2

slw2

24

slw0

30

h

6.7

item number

6321018

size

28x22

d1

28.0

DN1

DN25

l1

27

z1

3

slw1

39

d2

22.0

DN2

DN20

l2

26

z2

3

slw2

32

slw0

36

h

7

item number

6321040

size

35x28

d1

35.0

DN1

DN32

l1

35

z1

4

slw1

46

d2

28.0

DN2

DN25

l2

28

z2

4

slw2

39

slw0

46

h

8

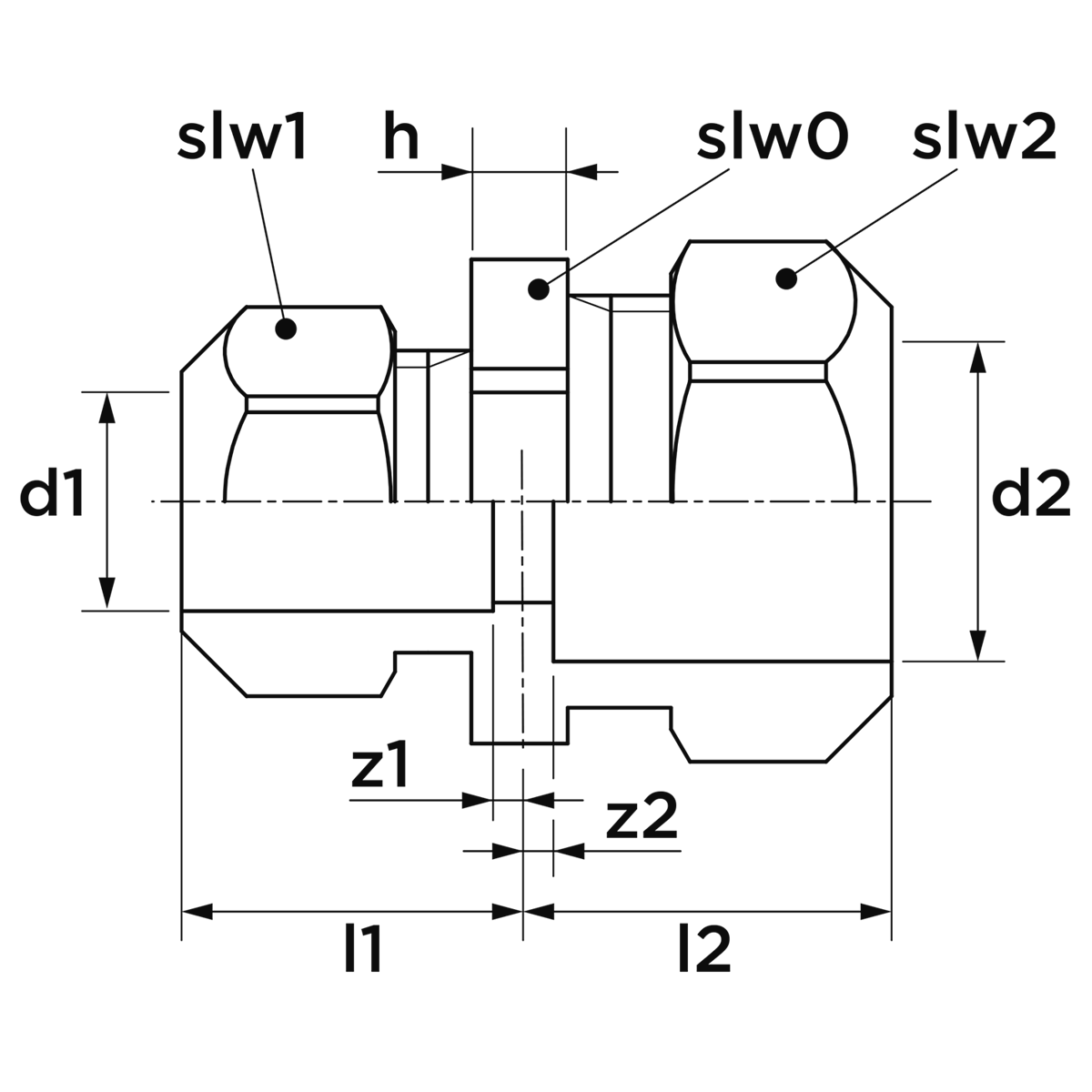

technical drawing for product

characteristics

color

silver

materials

brass (CW617N)

finishing

galvanised

shape

straight, reducer

connection type

clamp

sealing

Plastic sealing

general

product group

fittings (demountable)

ETIM class

EC003024 Fitting with 2 connections

HS code

74122000

brand

VSH

series

Clamp

type

104V

UNSPS

40173601

SCIP

98ab3390-1a8e-4560-943d-8a0d9c101b3e

technical

max operating pressure liquid

6 bar

max medium temperature

90 °C

peak medium temperature

120 °C

image for 104

image | png

104

image for Diagram

diagram | png

Diagram

link to sheet | pdf

MSDS_VSH_Klem

label

value

label

Material connection 1

value

Brass

label

Material quality connection 1

value

CuZn40Pb2 (CW617N)

label

Surface protection connection 1

value

Galvanic/electrolytic zinc plated

label

Material connection 2

value

Brass

label

Material quality connection 2

value

CuZn40Pb2 (CW617N)

label

Surface protection connection 2

value

Galvanic/electrolytic zinc plated

label

Shape

value

Straight

label

Model

value

3-part

label

Reducing

value

Yes

label

Eccentric

value

No

label

System specific

value

Yes

label

Connection 1

value

Clamp connection

label

Connection 2

value

Clamp connection

label

Main colour fitting

value

Grey

label

Flange compression class (PN)

value

PN 10

label

With buffer stud

value

No

label

High tensile strength

value

Yes

label

Medium temperature (continuous)

value

0°C - 90°C

label

Medium temperature (continuous) (imperial)

value

32°F - 194°F

label

Max. operating pressure at 20 °C

value

6bar

label

Max. operating pressure at 20 °C (imperial)

value

87.02psi

label

With thermal insulation

value

No

label

With sealing rings/gaskets

value

No

label

Capped

value

No

label

With connection indicator

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

DIN-CERTCO certificate

value

No

label

VdS quality mark

value

No

label

With approval for TÜV

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

Certified according to NF 545

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No

label

Type approval according to BBR/EKS

value

No
