VSH SudoPress Carbon T-piece (3 x press)

group: SP8130VM

The VSH SudoPress SP8130VM is a T-piece with 3 press ends. By using VSH SudoPress in your piping installation you can install in a quick, easy and clean way. VSH SudoPress provides a piping system that can be used in the most diverse situations.

  • Leak Before Pressed function
  • provided with all relevant approvals
  • clear identification on fitting of material and dimension
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

heating

heating

cooling

cooling

compressed air

compressed air

solar energy

solar energy

vacuum

vacuum

segments

commercial building

commercial building

industry

industry

approvals

no approvals available

item number

size

d1

DN1

l1

z1

d2

DN2

l2

z2

d3

DN3

l3

z3

item number

6562413

size

66.7

d1

66.7

DN1

DN65

l1

99

z1

49

d2

66.7

DN2

DN65

l2

101

z2

51

d3

66.7

DN3

DN65

l3

99

z3

49

item number

6562424

size

76.1

d1

76.1

DN1

DN65

l1

115

z1

60

d2

76.1

DN2

DN65

l2

110

z2

55

d3

76.1

DN3

DN65

l3

115

z3

60

item number

6562435

size

88.9

d1

88.9

DN1

DN80

l1

130

z1

67

d2

88.9

DN2

DN80

l2

128

z2

65

d3

88.9

DN3

DN80

l3

130

z3

67

item number

6562446

size

108

d1

108.0

DN1

DN100

l1

155

z1

78

d2

108.0

DN2

DN100

l2

153

z2

76

d3

108.0

DN3

DN100

l3

155

z3

78

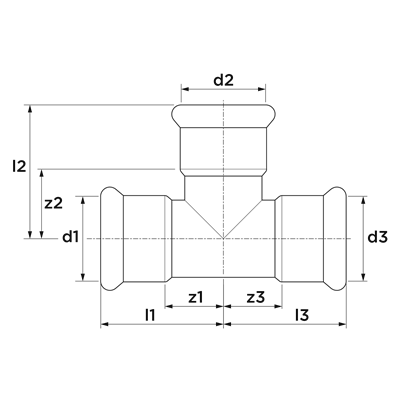

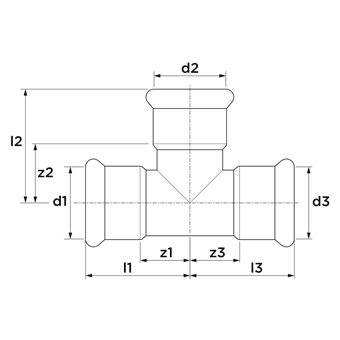

technical drawing for product

characteristics

color

silver

materials

steel (St 34.2 (1.0034))

finishing

galvanised

manufacturer

Aalberts integrated piping systems B.V. (VSH)

shape

T-piece (90º)

connection type

press (M), Press (M)

sealing

EPDM

general

product group

fittings

ETIM class

EC003025 Fitting with 3 connections

HS code

73079980

brand

VSH

series

SudoPress Carbon

type

SP8130VM

UNSPS

40174602

label

value

label

Material connection 1

value

Steel

label

Material quality connection 1

value

St 34.2 (1.0034)

label

Surface protection connection 1

value

Galvanic/electrolytic zinc plated

label

Material connection 2

value

Steel

label

Material quality connection 2

value

St 34.2 (1.0034)

label

Surface protection connection 2

value

Galvanic/electrolytic zinc plated

label

Material connection 3

value

Steel

label

Material quality connection 3

value

St 34.2 (1.0034)

label

Surface protection connection 3

value

Galvanic/electrolytic zinc plated

label

Model

value

T-piece

label

Angle

value

90°

label

Reducing

value

No

label

Multi-part

value

No

label

System specific

value

Yes

label

Connection 1

value

Press sleeve

label

Contour code connection 1

value

M

label

Connection 2

value

Press sleeve

label

Contour code connection 2

value

M

label

Connection 3

value

Press sleeve

label

Contour code connection 3

value

M

label

Flange compression class

value

PN 16

label

Material sealing

value

Ethylene-propylene diene monomer rubber (EPDM)

label

Main colour fitting

value

Grey

label

High tensile strength

value

Yes

label

Max. operating pressure at 20 °C

value

16bar

label

Max. operating pressure at 20 °C (imperial)

value

232.06psi

label

Medium temperature (continuous)

value

-35°C - 135°C

label

Medium temperature (continuous) (imperial)

value

-31°F - 275°F

label

With sealing rings/gaskets

value

No

label

With drain valve

value

No

label

With de-aerator

value

No

label

With buffer stud

value

Yes

label

Capped

value

No

label

With connection indicator

value

No

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No
