VSH XPress Copper elbow 45° Chrome Plated (press x male)

VSH XPress Copper elbow 45° Chrome Plated (press x male)

group: 7040C

The VSH XPress 7040C is a chrome plated copper 45º elbow with a press and tube end. By using VSH XPress in your piping installation you can install in a quick, easy and clean way. VSH XPress provides a complete piping system suitable for every conceivable application.

  • insert stop: stop edge for pipe end
  • provided with all relevant approvals
  • Leak Before Pressed-function
  • clear identification on fitting of material and dimension

applications

potable water

potable water

heating

heating

cooling

cooling

compressed air

compressed air

vacuum

vacuum

show all
show less

solutions

building installations

building installations

shipbuilding

shipbuilding

industry

industry

show all
show less

approvals

BSI Kitemark

BSI Kitemark

RISE

RISE

WRAS

WRAS

show all
show less
item number size weight dimensions packaging gtin
4809662 12xØ12 Cr 0.03 kg 18x18x55 mm bag (10 pce) 05022050257154
4809673 15xØ15 Cr 0.04 kg 20x20x60 mm 05022050257307
item number size d1 DN1 l1 z1 d2 DN2 l2 z2 radius angle
4809662 12xØ12 Cr 12.0 DN10 23 6 12.0 DN10 32 15 14 45
4809673 15xØ15 Cr 15.0 DN12 28 8 15.0 DN12 37 17 18 45

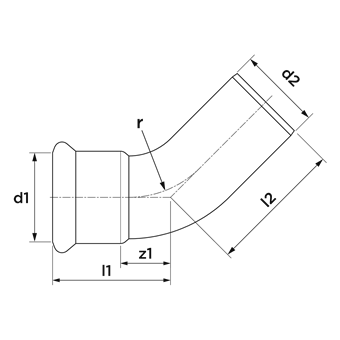

drawing for product
color copper
materials copper (CW024A (UNS C12200))
finishing chromed
manufacturer Aalberts integrated piping systems B.V. (VSH)
shape Bend (45º)
connection type press (M), tube end
sealing EPDM
product group fittings
ETIM class EC003024 Fitting with 2 connections
HS code 74121000
brand VSH
series XPress Copper
type 7040C
label value
ETIM class EC003024 Fitting with 2 connections
Material connection 1 Copper
Material quality connection 1 Cu-DHP (CW024A)
Surface protection connection 1 Chromium-plated
Material connection 2 Copper
Surface protection connection 2 Chromium-plated
Shape Bend
Model 1-part
Bend angle 45°
Reducing No
Eccentric No
System specific Yes
Wall thickness, connection 1 1.3mm
Connection 1 Press sleeve
Contour code connection 1 M
Connection 2 Spigot/tube end
Main colour fitting Copper
Material sealing Ethylene-propylene diene monomer rubber (EPDM)
With buffer stud Yes
High tensile strength Yes
Medium temperature (continuous) -20°C - 110°C
Medium temperature (continuous) (imperial) -4°F - 230°F
Max. operating pressure at 20 °C 16bar
Max. operating pressure at 20 °C (imperial) 232.06psi
With thermal insulation No
With sealing rings/gaskets No
Capped No
With de-aerator No
FM quality mark No
LPCB quality mark No
ULC quality mark No
UL quality mark No
DIN-CERTCO certificate No
VdS quality mark No
With approval for TÜV No
DVGW quality mark for gas No
DVGW quality mark for water No
Certified according to NF 545 No
KIWA certified No
Gastec QA mark No
KOMO certified No
Gastec QA - AR 214 (H2) No
Type approval according to BBR/EKS No

accessories

item number description
6115912 VSH XPress Copper O-ring EPDM 15
4805218 VSH XPress Copper O-ring FPM 15
6212657 VSH XPress Copper insert depth marker 12-108
4805207 VSH XPress Copper O-ring FPM 12
6115901 VSH XPress Copper O-ring EPDM 12

contains

item number description
6115901 VSH XPress Copper O-ring EPDM 12 1
6115912 VSH XPress Copper O-ring EPDM 15 1

send by email
