group: 6490

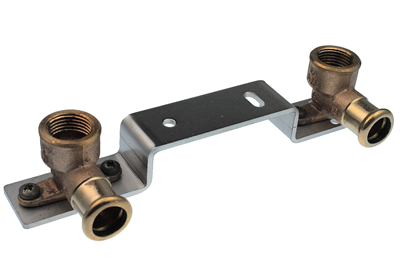

The VSH XPress 6490 is a gemini bracket with raised bracket, with press and female thread ends. By using VSH XPress in your piping installation you can install in a quick, easy and clean way. VSH XPress provides a complete piping system suitable for every conceivable application.
potable water
heating
cooling
compressed air
vacuum
residential
shipbuilding
industry
commercial building
QB (CSTBat)
DVGW Wasser
EMI
KIWA
SINTEF
WRAS
ÖVGW Wasser
RISE
ÜA
item number
size
dimensions
weight
packaging
gtin
item number
size
12xRp3/8"
dimensions
170x72x45 mm
weight
0.37 kg
packaging
bag (5 pce)
gtin
08711985208337
item number
size
15xRp1/2"
dimensions
203x53x39 mm
weight
0.36 kg
packaging
bag (5 pce)
gtin
08711985208351
code
size
d1
DN1
l1
z1
d2
DN2
l2
z2
d3
DN3
l3
z3
d4
DN4
l4
z4
item number
size
12xRp3/8"
d1
12.0
DN1
DN10
l1
63
z1
46
d2
12.0
DN2
DN10
l2
63
z2
46
d3
17.2
DN3
3/8" (DN10)
l3
31
z3
10
d4
17.2
DN4
3/8" (DN10)
l4
31
z4
10
item number
size
15xRp1/2"
d1
15.0
DN1
DN10
l1
42
z1
22
d2
15.0
DN2
DN10
l2
42
z2
22
d3
21.3
DN3
3/8" (DN10)
l3
20
z3
9
d4
21.3
DN4
3/8" (DN10)
l4
20
z4
9
item
VSH XPress Copper wall plates with bracket (2 x press x female thread)
item number with gtin
6490
manufacturer
Aalberts integrated piping systems B.V. (VSH)
weight
0.36 kg
dimensions
203x53x39 mm
color
copper
materials
bronze (EN CC499K)
finishing
none
shape
Wall plate, 90º
connection type
press (M), Rp - female thread cylindrical (BSPT) (M), Rp - female thread cylindrical (BSPT)
pressure rating (PN)
PN 16
sealing
EPDM
max operating pressure liquid
16 bar
min. medium temperature
-20 °C
max medium temperature
110 °C
peak medium temperature
135 °C
product group
fittings
ETIM class
EC010162 Wall plate on bracketHS code
74122000
brand
VSH
series
XPress Copper
type
6490
SCIP
966cd6bc-74ae-47a8-951b-016935a13ff8
label
value
label
etim-class
label
Model
value
Double bridge
label
System specific
value
Yes
label
Surface protection
value
Untreated
label
Nominal diameter connection
value
DN 10
label
Connection
value
Press sleeve
label
Thread size tap connection
value
3/8 inch
label
Wall thickness, connection 1
value
1.3mm
label
Wall thickness, connection 1 (imperial)
value
0.05"
label
Wall thickness, connection 2
value
1.3mm
label
Wall thickness, connection 2 (imperial)
value
0.05"
label
Max. operating pressure at 20 °C
value
16bar
label
Max. operating pressure at 20 °C (imperial)
value
232.06psi
label
Contour code
value
M
label
With connection indicator
value
No
label
With protective cap
value
No
label
With thermal insulation
value
No
label
Medium temperature (continuous)
value
-20°C - 110°C
label
Medium temperature (continuous) (imperial)
value
-4°F - 230°F
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
Yes
label
KOMO certified
value
No
item number
carbon footprint (A1-A3) cradle-to-gate
carbon footprint (A-C) embodied carbon
carbon footprint (A-D) cradle-to-cradle
data source
item number
carbon footprint (A1-A3) cradle-to-gate
1.1kgCO2e
carbon footprint (A-C) embodied carbon
1.26kgCO2e
carbon footprint (A-D) cradle-to-cradle
0.65kgCO2e
data source
EPD
item number
carbon footprint (A1-A3) cradle-to-gate
1.07kgCO2e
carbon footprint (A-C) embodied carbon
1.22kgCO2e
carbon footprint (A-D) cradle-to-cradle
0.63kgCO2e
data source
EPD
4805207
