group: 6472L
The VSH XPress 6472L is a gunmetal 90° wallplate with a long press and a female thread end. By using VSH XPress in your piping installation you can install in a quick, easy and clean way. VSH XPress provides a complete piping system suitable for every conceivable application.
potable water
heating
cooling
compressed air
vacuum
residential
shipbuilding
industry
commercial building
QB (CSTBat)
WRAS
ÖVGW Wasser
RISE
ÜA
BSI Kitemark
KIWA
code
size
dimensions
weight
packaging
gtin
code
size
15xRp1/2"
dimensions
53x60x60 mm
weight
0.17 kg
packaging
bag (5 pce)
gtin
05022050205353
code
size
d1
DN1
l1
z1
d2
DN2
l2
z2
slw0
radius
angle
code
size
15xRp1/2"
d1
15.0
DN1
DN12
l1
47
z1
27
d2
21.3
DN2
1/2" (DN15)
l2
48
z2
8
slw0
18
radius
17
angle
180
item

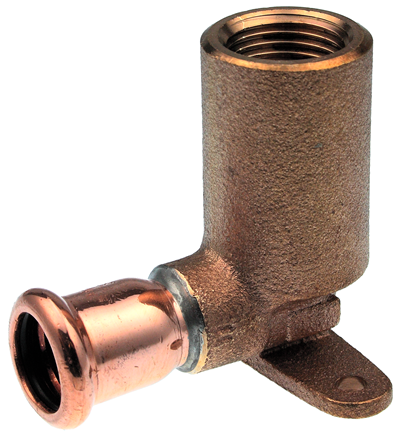

VSH XPress Copper wall plate long 90° (press x female thread)
item number with gtin
6472L (05022050205353)
manufacturer
Aalberts integrated piping systems B.V. (VSH)
size
15xRp1/2"
weight
0.17 kg
dimensions
53x60x60 mm
color
copper
materials
bronze (EN CC499K)
finishing
none
shape
Wall plate, 180º
connection type
press (M), Rp - female thread cylindrical (BSPT)
pressure rating (PN)
PN 16
sealing
EPDM
max operating pressure liquid
16 bar
min. medium temperature
-20 °C
max medium temperature
110 °C
peak medium temperature
135 °C
product group
fittingen
ETIM class
EC003099 Wall plateHS code
74122000
brand
VSH
series
XPress Copper
type
6472L
SCIP
966cd6bc-74ae-47a8-951b-016935a13ff8
label
value
label
etim-class
value
EC003099 Wall platelabel
Housing material
value
Bronze
label
Material quality
value
Bronze (Rg 5)
label
Surface protection
value
Untreated
label
System specific
value
Yes
label
Nominal diameter connection 1
value
DN 12
label
Outer pipe diameter connection 1
value
15mm
label
Outer pipe diameter connection 1 (imperial)
value
0.59"
label
Nominal diameter connection 2
value
1/2 inch (15)
label
Outer pipe diameter connection 2
value
21.3mm
label
Outer pipe diameter connection 2 (imperial)
value
0.84"
label
Connection
value
Press sleeve
label
Thread size tap connection
value
1/2 inch
label
Length of connection 1
value
47mm
label
Length of connection 1 (imperial)
value
1.85"
label
Working length connection 1
value
27mm
label
Working length connection 1 (imperial)
value
1.06"
label
Wall thickness, connection 1
value
1.3mm
label
Wall thickness, connection 1 (imperial)
value
0.05"
label
Length of connection 2
value
48mm
label
Length of connection 2 (imperial)
value
1.89"
label
Working length connection 2
value
8mm
label
Working length connection 2 (imperial)
value
0.31"
label
Length from wall plate
value
60mm
label
Length from wall plate (imperial)
value
2.36"
label
Medium temperature (continuous)
value
-20°C - 110°C
label
Medium temperature (continuous) (imperial)
value
-4°F - 230°F
label
Max. operating pressure at 20 °C
value
16bar
label
Max. operating pressure at 20 °C (imperial)
value
232.06psi
label
Contour code
value
M
label
With connection indicator
value
No
label
With protective cap
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
KIWA certified
value
Yes
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
code
carbon footprint (A1-A3) cradle-to-gate
carbon footprint (A-C) embodied carbon
carbon footprint (A-D) cradle-to-cradle
data source
code
carbon footprint (A1-A3) cradle-to-gate
0.5kgCO2e
carbon footprint (A-C) embodied carbon
0.57kgCO2e
carbon footprint (A-D) cradle-to-cradle
0.3kgCO2e
data source
EPD
6115912
4805218
6115912
