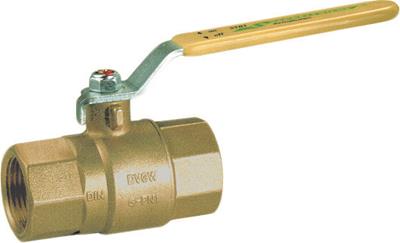

SEPP Gas ball valve

SEPP Gas ball valve

5101

applications

natural gas

solutions

building installations industry

approvals

DVGW Gas
item number size weight dimensions packaging gtin
0003960 Rp1/2" (DN15) 0.29 kg 61x31x131 mm carton (1 pce) 04018422012613
0003961 Rp3/4" (DN20) 0.42 kg 67x38x134 mm carton (1 pce) 04018422012620
0003962 Rp1" (DN25) 0.77 kg 85x47x138 mm carton (1 pce) 04018422012637
0003963 Rp1 1/4" (DN32) 1.25 kg 94x58x193 mm carton (1 pce) 04018422012644
0003964 Rp1 1/2" (DN40) 1.86 kg 123x72x242 mm carton (1 pce) 04018422012651
0003965 Rp2" (DN50) 3.12 kg 137x88x252 mm carton (1 pce) 04018422012668

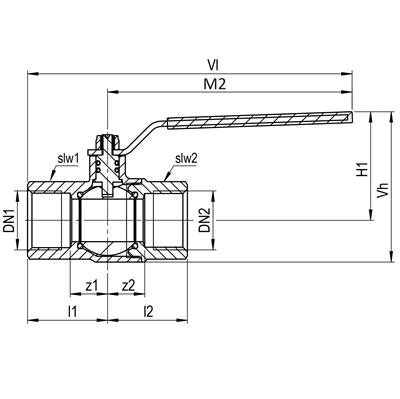

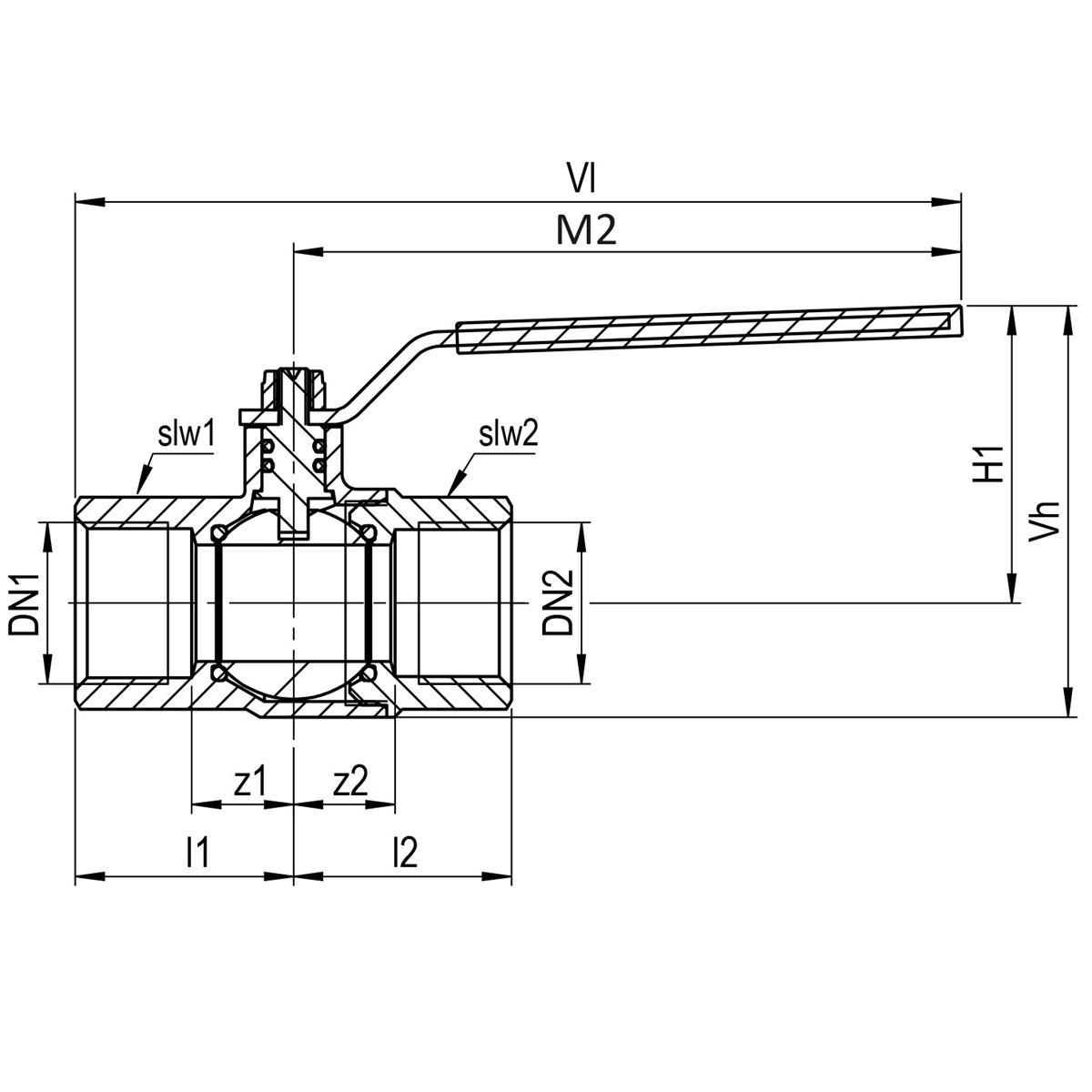

item number size DN1 l1 z1 l2 z2
0003960 Rp1/2" (DN15) 1/2" (DN15) 38 15 38 15
0003961 Rp3/4" (DN20) 3/4" (DN20) 40 17 40 17
0003962 Rp1" (DN25) 1" (DN25) 45 21 45 21
0003963 Rp1 1/4" (DN32) 1 1/4" (DN32) 55 26 55 31
0003964 Rp1 1/2" (DN40) 1 1/2" (DN40) 60 31 61 32
0003965 Rp2" (DN50) 2" (DN50) 70 37 70 37
see above for the diagram related to these dimensions
color brass
materials brass
finishing none
manufacturer Seppelfricke
connection type G - female thread gas cylindrical (BSPP)
pressure rating (PN) PN 5
sealing NBR (Nitrile)
product group valves (ball valves, de-aeration valve)
ETIM class EC011015 Gas valve
HS code 84818081
brand Seppelfricke
series SEPP Gas
type 5101
SCIP 27e1d8ab-0950-4905-b717-9c1fcdd55836
label value
ETIM class EC011015 Gas valve
Surface protection housing Untreated
Connection 1 Internal thread cylindrical BSPP-G (ISO 228-1)
Approved according to EN 331 No
DVGW quality mark for gas Yes
Gastec QA mark No
