group: 108A
heating
commercial building
industry
no approvals available
item number
size
dimensions
weight
packaging
gtin
item number
size
15xRp1/2"
dimensions
-
weight
0.09 kg
packaging
bag (10 pce)
gtin
08711985132717
item number
size
22xRp1/2"
dimensions
-
weight
0.12 kg
packaging
bag (10 pce)
gtin
08711985134230
item number
size
22xRp3/4"
dimensions
-
weight
0.15 kg
packaging
bag (10 pce)
gtin
08711985134254
item number
size
28xRp1"
dimensions
-
weight
0.21 kg
packaging
bag (10 pce)
gtin
08711985132731

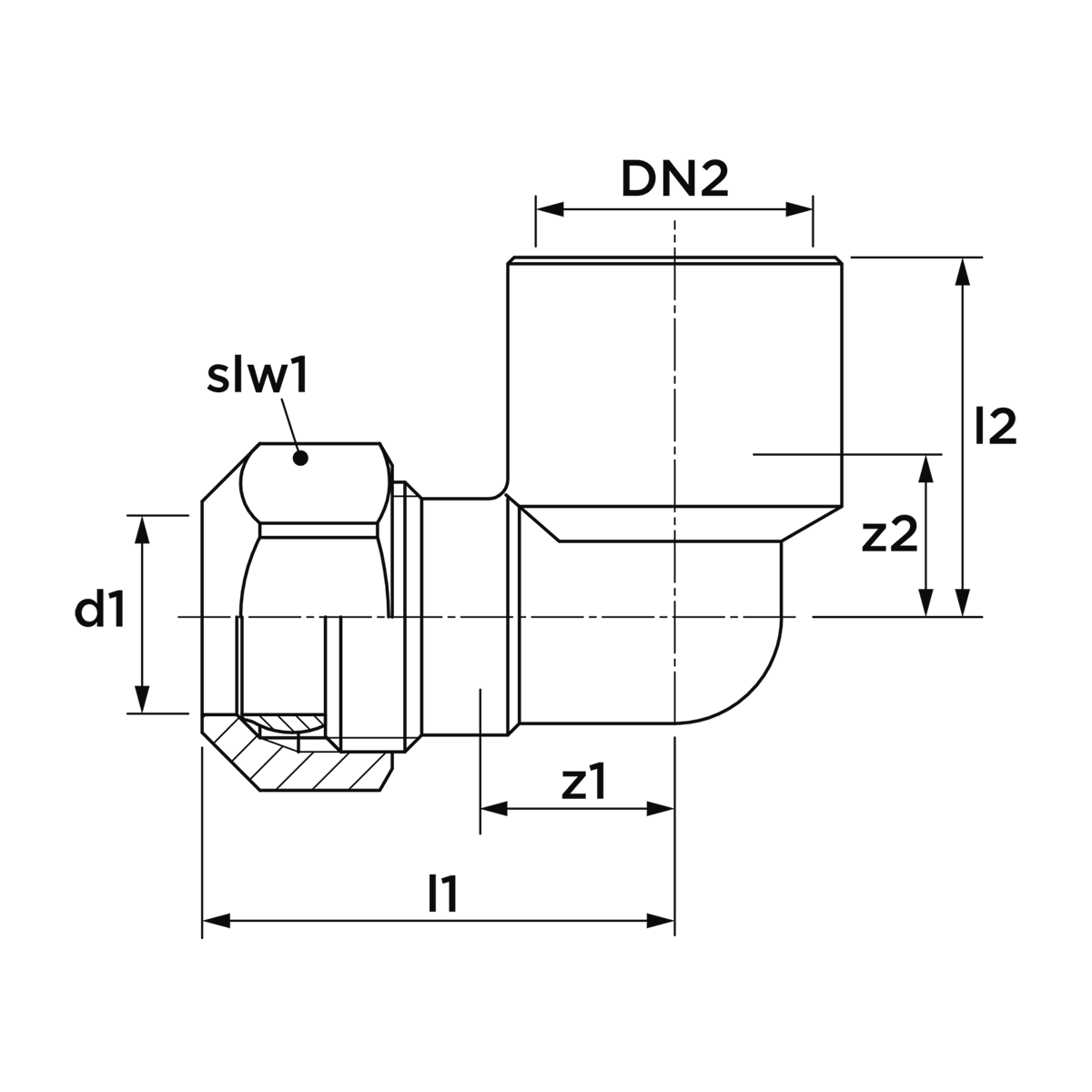

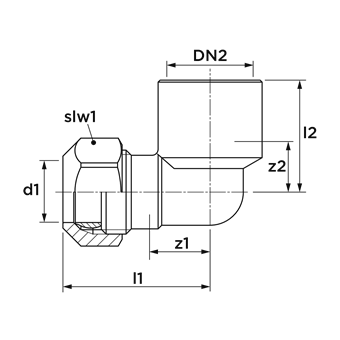

item number
size
d1
DN1
l1
z1
slw1
d2
DN2
l2
z2
item number
6321953size
15xRp1/2"
d1
15.0
DN1
DN12
l1
37
z1
15
slw1
24
d2
21.3
DN2
1/2" (DN15)
l2
28
z2
13
item number
6321986size
22xRp1/2"
d1
22.0
DN1
DN20
l1
38
z1
15
slw1
32
d2
21.3
DN2
1/2" (DN15)
l2
26
z2
11
item number
6322019size
22xRp3/4"
d1
22.0
DN1
DN20
l1
41
z1
18
slw1
32
d2
26.9
DN2
3/4" (DN20)
l2
32
z2
16
item number
6321997size
28xRp1"
d1
28.0
DN1
DN25
l1
45
z1
21
slw1
39
d2
33.7
DN2
1" (DN25)
l2
37
z2
18
color
silver
materials
brass (CW617N)
finishing
galvanised
shape
Elbow (90º)
connection type
clamp, Rp - female thread cylindrical (BSPT)
sealing
Plastic sealing
product group
fittings (demountable)
ETIM class
EC003024 Fitting with 2 connections
HS code
74122000
brand
VSH
series
Clamp
type
108A
UNSPS
40172801
SCIP
98ab3390-1a8e-4560-943d-8a0d9c101b3e
max operating pressure liquid
6 bar
max medium temperature
90 °C
peak medium temperature
120 °C
label
value
label
ETIM class
label
Material connection 1
value
Brass
label
Material quality connection 1
value
CuZn40Pb2 (CW617N)
label
Surface protection connection 1
value
Galvanic/electrolytic zinc plated
label
Material connection 2
value
Brass
label
Material quality connection 2
value
CuZn40Pb2 (CW617N)
label
Surface protection connection 2
value
Galvanic/electrolytic zinc plated
label
Shape
value
Bend
label
Model
value
3-part
label
Bend angle
value
90°
label
Reducing
value
No
label
Eccentric
value
No
label
System specific
value
Yes
label
Connection 1
value
Clamp connection
label
Connection 2
value
Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1)
label
Main colour fitting
value
Grey
label
Flange compression class (PN)
value
PN 10
label
With buffer stud
value
No
label
High tensile strength
value
Yes
label
Medium temperature (continuous)
value
0°C - 90°C
label
Medium temperature (continuous) (imperial)
value
32°F - 194°F
label
Max. operating pressure at 20 °C
value
6bar
label
Max. operating pressure at 20 °C (imperial)
value
87.02psi
label
With thermal insulation
value
No
label
With sealing rings/gaskets
value
No
label
Capped
value
No
label
With connection indicator
value
No
label
With drain valve
value
No
label
With de-aerator
value
No
label
FM quality mark
value
No
label
LPCB quality mark
value
No
label
ULC quality mark
value
No
label
UL quality mark
value
No
label
DIN-CERTCO certificate
value
No
label
VdS quality mark
value
No
label
With approval for TÜV
value
No
label
DVGW quality mark for gas
value
No
label
DVGW quality mark for water
value
No
label
Certified according to NF 545
value
No
label
KIWA certified
value
No
label
Gastec QA mark
value
No
label
KOMO certified
value
No
label
Gastec QA - AR 214 (H2)
value
No
label
Type approval according to BBR/EKS
value
No
item number
