group: 105SP

The VSH Clamp 105SP is a galvanized brass 90° elbow, with 2 clamp ends. This fitting is provided with an air vent. Easy installation and high quality are the top priorities of the VSH Clamp product range.

simple installation with standard tools
quick connection technology allowing reassembly

read more

read less

if the download did not start automatically, click here

PDF generation failed, please try again later

heating

show all

show less

industry

commercial building

show all

show less

no approvals available

code

size

dimensions

weight

packaging

gtin

code

size

15

dimensions

53x46x46 mm

weight

0.1 kg

packaging

bag (10 pce)

gtin

08711985132915

code

size

22

dimensions

63x36x54 mm

weight

0.17 kg

packaging

bag (10 pce)

gtin

08711985132939

code

size

d1

DN1

l1

z1

slw1

d2

DN2

l2

z2

slw2

slw0

code

size

15

d1

15.0

DN1

DN12

l1

33

z1

11

slw1

24

d2

15.0

DN2

DN12

l2

33

z2

11

slw2

24

slw0

17

code

size

22

d1

22.0

DN1

DN20

l1

38

z1

15

slw1

32

d2

22.0

DN2

DN20

l2

38

z2

15

slw2

32

slw0

24

product info

item

VSH Clamp elbow 90° with air vent (2 x clamp)

item number with gtin

105SP

manufacturer

Aalberts integrated piping systems B.V. (VSH)

weight

0.17 kg

dimensions

63x36x54 mm

characteristics

color

silver

materials

brass (CW617N)

finishing

galvanised

shape

Elbow, 90º

connection type

clamp

pressure rating (PN)

PN 10

sealing

Plastic sealing

technical

max operating pressure liquid

6 bar

max medium temperature

90 °C

peak medium temperature

120 °C

general

product group

fittingen (demountable)

ETIM class

EC003024 Fitting with 2 connections

HS code

74122000

brand

VSH

series

Clamp

type

105SP

UNSPS

40172801

SCIP

98ab3390-1a8e-4560-943d-8a0d9c101b3e

image for 105SP

image | png

105SP

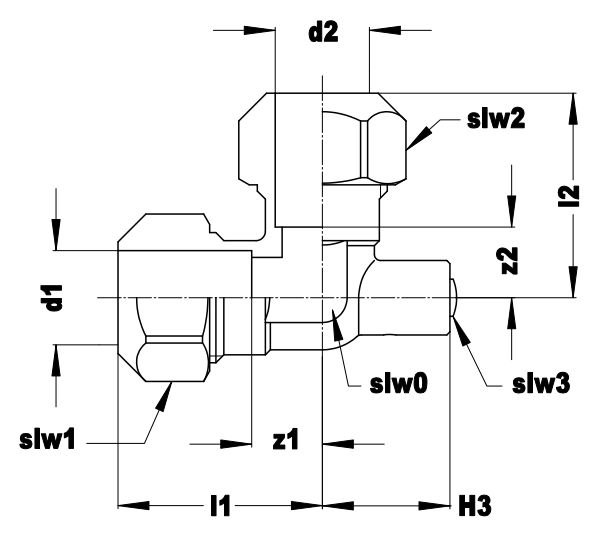

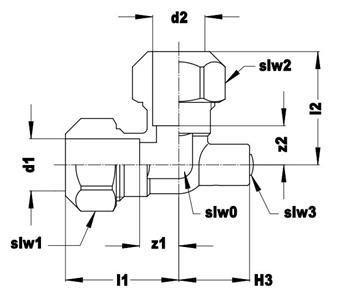

image for Diagram
