SP4471GV

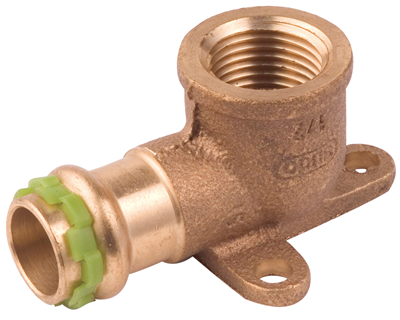

The VSH SudoPress SP4471GV is a 90° wall plate bracket with a press and a female thread end. By using VSH SudoPress in your piping installation you can install in a quick, easy and clean way. VSH SudoPress provides a piping system that can be used in the most diverse situations.
applications
solutions
approvals
| item number | size | weight | dimensions | packaging | gtin |
|---|---|---|---|---|---|
| 6672600 | 12xRp1/2" | 0.11 kg | 66x50x35 mm | bag (5 pce) | 03430651360906 |
| 6672602 | 14xRp1/2 | 0.1 kg | 66x45x35 mm | bag (5 pce) | 03430651360913 |
| 6672611 | 15xRp1/2" | 0.1 kg | 71x50x35 mm | bag (5 pce) | 03430651360937 |
| 6672613 | 16xRp1/2 | 0.1 kg | 66x45x35 mm | bag (5 pce) | 03430651360944 |
| 6672622 | 18xRp1/2" | 0.13 kg | 69x50x39 mm | bag (5 pce) | 03430651360968 |
| 6672633 | 22xRp3/4" | 0.15 kg | 76x57x44 mm | bag (5 pce) | 03430651360975 |
| item number | size | d1 | DN1 | l1 | z1 | d2 | DN2 | l2 | z2 | radius | angle |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 6672600 | 12xRp1/2" | 12.0 | DN10 | 41 | 23 | 21.3 | 1/2" (DN15) | 23 | 9 | 20 | 120 |
| 6672602 | 14xRp1/2 | 14.0 | DN12 | 44 | 20 | 21.3 | 1/2" (DN15) | 22 | 9 | 18 | 90 |
| 6672611 | 15xRp1/2" | 15.0 | DN12 | 46 | 24 | 21.3 | 1/2" (DN15) | 22 | 9 | 20 | 90 |
| 6672613 | 16xRp1/2 | 16.0 | DN12 | 44 | 20 | 21.3 | 1/2" (DN15) | 22 | 9 | 18 | 90 |
| 6672622 | 18xRp1/2" | 18.0 | DN15 | 44 | 22 | 21.3 | 1/2" (DN15) | 24 | 10 | 20 | 120 |
| 6672633 | 22xRp3/4" | 22.0 | DN20 | 47 | 24 | 26.9 | 3/4" (DN20) | 27 | 14 | 23 | 90 |
| color | bronze |
|---|---|
| materials | bronze (EN CC499K) |
| finishing | none |
| manufacturer | Aalberts integrated piping systems B.V. (VSH) |
| shape | Wall plate |
| connection type | press (V), Rp - female thread cylindrical (BSPT) |
| sealing | EPDM |
| product group | fittings |
|---|---|
| ETIM class | EC003099 Wall plate |
| HS code | 74122000 |
| brand | VSH |
| series | SudoPress Copper |
| type | SP4471GV |
| UNSPS | 40172812 |
| SCIP | 9c667905-838e-436f-9f23-94980e0c8c97 |
SDS-VSH_SudoPress_Copper_gunmetal link to sheet |
download | |
 SP4471GV image |
png | download |
SudoPress Copper DVGW Water certifications |
download | |
SudoPress Copper WRAS certifications |
download | |
SudoPress Koper KIWA certifications |
download | |
VSH SudoPress Copper 15-54mm RISE ENG certifications |
download | |
VSH SudoPress Copper Avis Technique certifications |
download | |
VSH SudoPress Copper-ACS certifications |
download | |
VSH SudoPress TSU certifications |
download | |
VSHSudoPressRVS-RG_SVGW_W15-54D certifications |
download | |
 Diagram diagram |
png | download |
VSH SudoPress Copper 15-54mm RISE SE certifications |
download | |
VSH SudoPress RVS-bronze SVGW Water 15-54mm (FR) certifications |
download | |
VSH SudoPress instructions installation- & maintenance document |
download |
| label | value |
|---|---|
| ETIM class | EC003099 Wall plate |
| Housing material | Bronze |
| Material quality | Bronze (Rg 5) |
| Surface protection | Untreated |
| Shape | Right-angled |
| System specific | Yes |
| Connection | Press sleeve |
| Medium temperature (continuous) | -20°C - 110°C |
| Medium temperature (continuous) (imperial) | -4°F - 230°F |
| Max. operating pressure at 20 °C | 16bar |
| Max. operating pressure at 20 °C (imperial) | 232.06psi |
| Contour code | V |
| With connection indicator | Yes |
| With protective cap | No |
| DVGW quality mark for gas | No |
| Gastec QA mark | No |
| KOMO certified | No |
| item number | description | |
|---|---|---|
 |
6558508 | VSH SudoPress O-ring FPM LBP 12 |
 |
6569805 | VSH SudoPress O-ring EPDM LBP 12 |
 |
6211898 | Deburrer for carbon and stainless steel tube 12-54 |
 |
6580002 | Novopress jaw PB1 V12 |
 |
6580068 | Novopress jaw PB2 V12 |
|
6558519 | VSH SudoPress O-ring FPM LBP 15 |
|
6569816 | VSH SudoPress O-ring EPDM LBP 15 |
|
6580013 | Novopress jaw PB1 V15 |
|
6580079 | Novopress jaw PB2 V15 |
|
6558521 | VSH SudoPress O-ring FPM LBP 18 |
|
6569827 | VSH SudoPress O-ring EPDM LBP 18 |
|
6580024 | Novopress jaw PB1 V18 |
|
6580081 | Novopress jaw PB2 V18 |
|
6558530 | VSH SudoPress O-ring FPM LBP 22 |
|
6569838 | VSH SudoPress O-ring EPDM LBP 22 |
|
6580035 | Novopress jaw PB1 V22 |
|
6580090 | Novopress jaw PB2 V22 |
|
6674969 | VSH SudoPress Copper O-ring FPM LBP 14 |
|
6673431 | VSH SudoPress Copper O-ring EPDM LBP 14 |
|
6580266 | Novopress jaw PB1 V14 |
|
6580288 | Novopress jaw PB2 V14 |
|
6674973 | VSH SudoPress Copper O-ring FPM LBP 16 |
|
6673435 | VSH SudoPress Copper O-ring EPDM LBP 16 |
|
6580277 | Novopress jaw PB1 V16 |
|
6580299 | Novopress jaw PB2 V16 |
| item number | description | ||
|---|---|---|---|
|
6569805 | VSH SudoPress O-ring EPDM LBP 12 | 1 |
|
6673431 | VSH SudoPress Copper O-ring EPDM LBP 14 | 1 |
|
6569816 | VSH SudoPress O-ring EPDM LBP 15 | 1 |
|
6673435 | VSH SudoPress Copper O-ring EPDM LBP 16 | 1 |
|
6569827 | VSH SudoPress O-ring EPDM LBP 18 | 1 |
|
6569838 | VSH SudoPress O-ring EPDM LBP 22 | 1 |
