VSH XPress Stainless Gas flange adapter PN16 (press x flange)

VSH XPress Stainless Gas flange adapter PN16 (press x flange)

R2726G

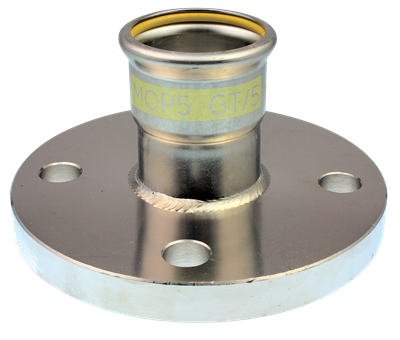

The VSH XPress R2726G is a stainless steel PN16 flange adapter with a press end and a DIN flange connection, applicable for Gas. Ideal for applications where high levels of hydrogen sulphide make copper an unsuitable material choice. The yellow O-ring and prominent marking on the exterior of this fitting ensure a clear identification of the system.

  • Safer installation due to no naked flames or heat required
  • insert stop: stop edge for pipe end
  • provided with all relevant approvals
  • clear identification on fitting of material and dimension

applications

natural gas compressed air

solutions

building installations industry

approvals

ARGB-KVBG BSI DVGW Gas ÖVGW Gas SVGW Gas
item number size weight dimensions packaging gtin
6211601 22xDN20 PN16 0.78 kg 59x105x105 mm bag (1 pce) 08711985210774
6211612 28xDN25 PN16 1.09 kg 65x115x115 mm bag (1 pce) 08711985210330
6211623 35xDN32 PN16 1.72 kg 70x140x140 mm bag (1 pce) 08711985210767
6211634 42xDN40 PN16 2.09 kg 77x150x150 mm bag (1 pce) 08711985210750
6211645 54xDN50 PN16 2.83 kg 86x165x165 mm bag (1 pce) 08711985210743
6212613 76.1xDN65 PN16 3.55 kg 126x185x185 mm bag (1 pce) 08711985280661
6212624 88.9xDN80 PN16 4.34 kg 147x200x200 mm bag (1 pce) 08711985280678
6212635 108xDN100 PN16 5.25 kg 167x220x220 mm bag (1 pce) 08711985280685
item number size d1 l1 z1 DN1 n2 k2 b2 d2-2 D2 d2 l2 DN2
6211601 22xDN20 PN16 22 (DN20) 47 27 DN20 4 75 12 14 105 (DN20) 12 DN20
6211612 28xDN25 PN16 28 (DN25) 51 33 DN25 4 85 14 14 115 (DN25) 14 DN25
6211623 35xDN32 PN16 35 (DN32) 55 37 DN32 4 100 15 18 140 (DN32) 15 DN32
6211634 42xDN40 PN16 42 (DN40) 61 43 DN40 4 110 16 18 150 (DN40) 16 DN40
6211645 54xDN50 PN16 54 (DN50) 68 57 DN50 4 125 18 18 165 (DN50) 18 DN50
6212613 76.1xDN65 PN16 76.1 (DN65) 108 53 DN65 4 145 18 18 185 (DN65) 18 DN65
6212624 88.9xDN80 PN16 88.9 (DN80) 127 64 DN80 8 160 20 18 200 (DN80) 20 DN80
6212635 108xDN100 PN16 108 (DN100) 147 70 DN100 8 180 20 18 220 (DN100) 20 DN100
see above for the diagram related to these dimensions
color silver
materials stainless steel (Stainless steel 316L (1.4404))
finishing none
manufacturer 8711985000009
shape straight
connection type press (M)
sealing HNBR
product group fittings
ETIM class EC003024 Fitting with 2 connections
HS code 73072980
country of origin Netherlands
brand VSH
series XPress Stainless Gas
type R2726G
label value
ETIM class EC003024 Fitting with 2 connections
Material connection 1 Stainless steel
Material quality connection 1 Stainless steel 316 L (1.4404)
Surface protection connection 1 Untreated
Surface treatment connection 1 Untreated
Material connection 2 Stainless steel
Material quality connection 2 Stainless steel 316 L (1.4404)
Surface protection connection 2 Untreated
Surface treatment connection 2 Untreated
Shape Straight
Model 1-part
Reducing No
Eccentric No
System-specific Yes
Connection 1 Press sleeve
Contour code connection 1 M
Material sealing Hydrogenated acrylonitrile butadiene rubber (HNBR)
Main colour fitting Grey
Medium temperature (continuous) -20°C - 70°C
Medium temperature (continuous) (imperial) -4°F - 158°F
With sealing rings/gaskets No
With thermal insulation No
With buffer stud Yes
Capped No
With drain No
With de-aerator No
Connection indicator No
FM quality mark No
LPCB quality mark No
ULC quality mark No
UL quality mark No
DIN-CERTCO certificate No
VdS quality mark No
With approval for TÜV No
DVGW quality mark for gas Yes
DVGW quality mark for water No
KIWA certified No
Gastec QA mark No
KOMO certified No
Type approval according to BBR/EKS No
