VSH XPress Stainless Gas elbow 90° (2 x press)

R2708G

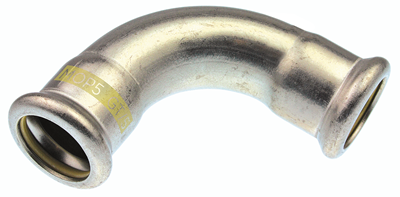

The VSH XPress R2708G is a stainless steel 90º bend with 2 press ends, applicable for Gas. Ideal for applications where high levels of hydrogen sulphide make copper an unsuitable material choice. The yellow O-ring and prominent marking on the exterior of this fitting ensure a clear identification of the system.

safer installation due to no naked flames or heat required
insert stop: stop edge for pipe end
provided with all relevant approvals
clear identification on fitting of material and dimension

applications

solutions

approvals

assortment

item number	size	weight	dimensions	packaging	gtin
6210171	15	0.06 kg	60x60x23 mm	bag (10 pce)	08711985224702
6210182	18	0.07 kg	66x66x27 mm	bag (10 pce)	08711985224719
6210193	22	0.1 kg	76x76x32 mm	bag (10 pce)	08711985164404
6210204	28	0.14 kg	90x90x38 mm	bag (5 pce)	08711985163889
6210215	35	0.2 kg	109x109x45 mm	bag (5 pce)	08711985151657
6210226	42	0.34 kg	142x142x54 mm	bag (2 pce)	08711985211016
6210237	54	0.53 kg	175x175x65 mm	bag (2 pce)	08711985224726
6212162	76.1	1.07 kg	197x197x94 mm	bag (1 pce)	08711985332667
6212173	88.9	1.43 kg	229x229x109 mm	bag (1 pce)	08711985332674
6212184	108	2.17 kg	281x281x133 mm	bag (1 pce)	08711985332681

dimensions

item number	size	d1	DN1	l1	z1	d2	DN2	l2	z2	radius	angle
6210171	15	15.0	DN12	48	27	15.0	DN12	48	27	23	90
6210182	18	18.0	DN15	53	32	18.0	DN15	53	32	27	90
6210193	22	22.0	DN20	60	37	22.0	DN20	60	37	33	90
6210204	28	28.0	DN25	71	47	28.0	DN25	71	47	42	90
6210215	35	35.0	DN32	87	60	35.0	DN32	87	60	53	90
6210226	42	42.0	DN40	115	83	42.0	DN40	115	83	63	90
6210237	54	54.0	DN50	142	105	54.0	DN50	142	105	81	90
6212162	76.1	76.1	DN65	150	95	76.1	DN65	150	95	91	90
6212173	88.9	88.9	DN80	174	111	88.9	DN80	174	111	107	90
6212184	108	108.0	DN100	215	138	108.0	DN100	215	138	130	90

see above for the diagram related to these dimensions

characteristics

characteristics

color	silver
materials	stainless steel (Stainless steel 316L (1.4404))
finishing	none
manufacturer	Aalberts integrated piping systems B.V. (VSH)
shape	Bend (90º)
connection type	press (M)
sealing	HNBR

general

general

product group	fittings
ETIM class	EC003024 Fitting with 2 connections
HS code	73072980
brand	VSH
series	XPress Stainless Gas
type	R2708G

downloads

R2708G image	png	download
VSH XPress Stainless Gas ARGB-KVBG certifications	pdf	download
VSH XPress Stainless Gas BSI certifications	pdf	download
VSH XPress stainless DVGW Gas certifications	pdf	download
VSH XPress stainless SVGW Gas certifications	pdf	download
VSH_XPress_RVS_OVGW_Gas certifications	pdf	download
Diagram diagram	png	download
VSH XPress installation instructions installation- & maintenance document	pdf	download

ETIM

label	value
ETIM class	EC003024 Fitting with 2 connections
Material connection 1	Stainless steel
Material quality connection 1	Stainless steel 316 L (1.4404)
Surface protection connection 1	Untreated
Surface treatment connection 1	Untreated
Material connection 2	Stainless steel
Material quality connection 2	Stainless steel 316 L (1.4404)
Surface protection connection 2	Untreated
Surface treatment connection 2	Untreated
Shape	Bend
Model	1-part
Bend angle	90°
Reducing	No
Eccentric	No
System specific	Yes
Connection 1	Press sleeve
Contour code connection 1	M
Connection 2	Press sleeve
Contour code connection 2	M
Main colour fitting	Grey
Material sealing	Hydrogenated acrylonitrile butadiene rubber (HNBR)
With buffer stud	Yes
Medium temperature (continuous)	-20°C - 70°C
Medium temperature (continuous) (imperial)	-4°F - 158°F
With thermal insulation	No
With sealing rings/gaskets	No
Capped	No
With connection indicator	No
With drain valve	No
With de-aerator	No
FM quality mark	No
LPCB quality mark	No
ULC quality mark	No
UL quality mark	No
DIN-CERTCO certificate	No
VdS quality mark	No
With approval for TÜV	No
DVGW quality mark for gas	Yes
DVGW quality mark for water	No
Certified according to NF 545	No
KIWA certified	No
Gastec QA mark	No
KOMO certified	No
Type approval according to BBR/EKS	No
