group: C1006
The VSH End Feed Brass C1006 is a straight connector with a solder and female thread end. VSH End Feed Brass provides an assortment of fittings for every soft-solder application. High quality and great dimensional accuracy are the top priorities of the VSH End Feed Brass product range.
potable water
natural gas
heating
cooling
compressed air
solar energy
vacuum
hydrogen (H2)
non-potable water
commercial building
industry
GASTEC
Gastec-H2-ready
KIWA
item number
size
dimensions
weight
packaging
gtin
item number
size
12xG1/2"
dimensions
23x30x30 mm
weight
0.04 kg
packaging
bag (10 pce)
gtin
08711985000597
item number
size
15xG3/8"
dimensions
23x25x25 mm
weight
0.03 kg
packaging
bag (10 pce)
gtin
08711985000573
item number
size
15xRp1/2"
dimensions
31x31x31 mm
weight
0.06 kg
packaging
bag (10 pce)
gtin
08711985000757
item number
size
15xG3/4"
dimensions
25x36x36 mm
weight
0.06 kg
packaging
bag (5 pce)
gtin
08711985000658
item number
size
22xG1/2"
dimensions
30x31x31 mm
weight
0.05 kg
packaging
bag (5 pce)
gtin
08711985000634
item number
size
22xRp3/4"
dimensions
37x36x36 mm
weight
0.08 kg
packaging
bag (5 pce)
gtin
08711985000771
item number
size
28xRp1"
dimensions
44x43x43 mm
weight
0.13 kg
packaging
bag (2 pce)
gtin
08711985000795
item number
size
35xRp1 1/4"
dimensions
50x55x55 mm
weight
0.24 kg
packaging
bag (1 pce)
gtin
-
item number
size
42xRp1 1/2"
dimensions
54x61x61 mm
weight
0.3 kg
packaging
bag (1 pce)
gtin
08711985070477
item number
size
d1
DN1
l1
z1
d2
DN2
l2
z2
slw2
item number
0403425size
12xG1/2"
d1
12.0
DN1
DN10
l1
11
z1
2
d2
21.3
DN2
1/2" (DN15)
l2
13
z2
2
slw2
27
item number
0403337size
15xG3/8"
d1
15.0
DN1
DN12
l1
13
z1
2
d2
114.3
DN2
3/8" (DN10)
l2
10
z2
2
slw2
22
item number
0606078size
15xRp1/2"
d1
15.0
DN1
DN12
l1
13
z1
2
d2
21.3
DN2
1/2" (DN15)
l2
18
z2
3
slw2
27
item number
0403535size
15xG3/4"
d1
15.0
DN1
DN12
l1
13
z1
3
d2
26.9
DN2
3/4" (DN20)
l2
13
z2
4
slw2
32
item number
0403458size
22xG1/2"
d1
22.0
DN1
DN20
l1
17
z1
1
d2
21.3
DN2
1/2" (DN15)
l2
13
z2
4
slw2
27
item number
0606100size
22xRp3/4"
d1
22.0
DN1
DN20
l1
18
z1
2
d2
26.9
DN2
3/4" (DN20)
l2
20
z2
4
slw2
32
item number
0606133size
28xRp1"
d1
28.0
DN1
DN25
l1
20
z1
2
d2
33.7
DN2
1" (DN25)
l2
23
z2
4
slw2
41
item number
0606166size
35xRp1 1/4"
d1
35.0
DN1
DN32
l1
25
z1
2
d2
42.4
DN2
1 1/4" (DN32)
l2
25
z2
4
slw2
50
item number
0606199size
42xRp1 1/2"
d1
42.0
DN1
DN40
l1
29
z1
2
d2
48.3
DN2
1 1/2" (DN40)
l2
25
z2
4
slw2
55
color
brass
materials
brass (CW617N)
finishing
none
manufacturer
Aalberts integrated piping systems B.V. (VSH)
shape
straight, reducer
connection type
solder
sealing
Metal sealing
product group
fittings
ETIM class
EC003024 Fitting with 2 connections
HS code
74122000
brand
VSH
series
End Feed
type
C1006
UNSPS
40172501
SCIP
9096d92f-2905-489e-9245-022c48ad808b

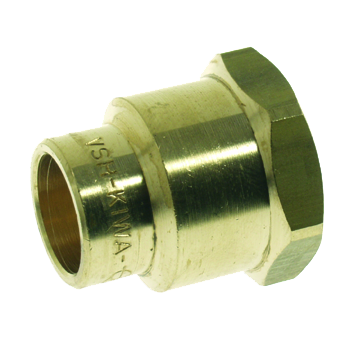

image | png
C1006

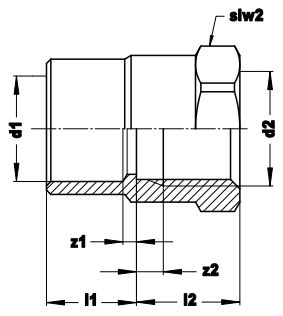

diagram | jpg
Diagram
installation- & maintenance document | pdf
VSH End Feed Brass installation instructions
installation- & maintenance document | pdf
VSH End Feed Gas instructions
link to sheet | pdf
VSH End Feed MSDS
certifications | pdf
VSH Soldeer GASTEC
certifications | pdf
VSH Soldeer KIWA
certifications | pdf
VSH Solder fittings Gastec H2
