6131G
The VSH XPress 6131G is a gunmetal multi-port coupling with 2 press ends. This fitting is ideal when working in small spaces. By using VSH XPress in your piping installation you can install in a quick, easy and clean way. VSH XPress provides a complete piping system suitable for every conceivable application.
applications
solutions
approvals
item number | size | weight | dimensions | packaging | gtin |
---|---|---|---|---|---|
4803051 | 66.7xRp1/2 | 1.03 kg | 85x90x132 mm | bag (1 pce) | 05022050228383 |
4803062 | 76.1xRp1/2 | 1.23 kg | 95x100x130 mm | bag (1 pce) | 05022050227959 |
4803073 | 88.9xRp3/4 | 1.77 kg | 110x110x160 mm | bag (1 pce) | 05022050227430 |
4803084 | 108xRp3/4 | 2.25 kg | 133x133x170 mm | bag (1 pce) | 05022050226624 |
item number | size | d1 | DN1 | l1 | z1 | d2 | DN2 | l2 | z2 | DN3 | DN4 | DN5 | DN6 |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
4803051 | 66.7xRp1/2 | 66.7 | DN65 | 65 | 15 | 66.7 | DN65 | 65 | 15 | 1/2" (DN15) | 1/2" (DN15) | ||
4803062 | 76.1xRp1/2 | 76.1 | DN65 | 65 | 14 | 76.1 | DN65 | 65 | 14 | 1/2" (DN15) | 1/2" (DN15) | ||
4803073 | 88.9xRp3/4 | 88.9 | DN80 | 80 | 18 | 88.9 | DN80 | 80 | 18 | 3/4" (DN20) | 3/4" (DN20) | 3/4" (DN20) | |
4803084 | 108xRp3/4 | 108.0 | DN100 | 85 | 18 | 108.0 | DN100 | 85 | 18 | 3/4" (DN20) | 3/4" (DN20) | 3/4" (DN20) | 3/4" (DN20) |
color | copper |
---|---|
materials | bronze (EN CC499K) |
finishing | none |
manufacturer | Aalberts integrated piping systems B.V. (VSH) |
shape | straight, reducer |
connection type | press (M), Rp - female thread cylindrical (BSPT) |
sealing | EPDM |
product group | fittings |
---|---|
ETIM class | EC003026 Fitting with 4 connections |
HS code | 74122000 |
brand | VSH |
series | XPress Copper |
type | 6131G |
SCIP | 966cd6bc-74ae-47a8-951b-016935a13ff8 |

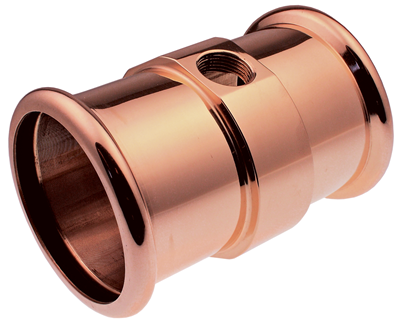

6131G image |
png | download |
MSDS_VSH_XPress_Copper link to sheet |
download | |
XPress Copper BSI certifications |
download | |
XPress Copper DVGW Water certifications |
download | |
XPress_Copper_ATG certifications |
download | |
XPress_Copper_QB certifications |
download | |
XPress_Copper_SINTEF certifications |
download | |
XPress_Copper_Water_OVGW certifications |
download | |
XPress_DNV certifications |
download | |

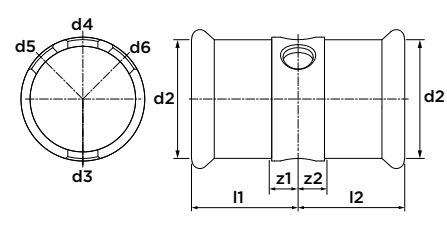

Diagram diagram |
png | download |
VSH XPress installation instructions installation- & maintenance document |
download |
label | value |
---|---|
ETIM class | EC003026 Fitting with 4 connections |
Material | Bronze |
Material quality | Bronze (Rg 5) |
Surface protection | Untreated |
Surface treatment | Untreated |
Swept entry type (with inner radius) | No |
Reducing | Yes |
Multi-part | No |
System specific | Yes |
Connection 1 | Press sleeve |
Connection 2 | Press sleeve |
Connection 3 | Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1) |
Connection 4 | Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1) |
Contour code | M |
Flange compression class | PN 16 |
Material sealing | Ethylene-propylene diene monomer rubber (EPDM) |
Medium temperature (continuous) | -20°C - 110°C |
Medium temperature (continuous) (imperial) | -4°F - 230°F |
Max. operating pressure at 20 °C | 16bar |
Max. operating pressure at 20 °C (imperial) | 232.06psi |
With thermal insulation | No |
With sealing rings/gaskets | No |
With buffer stud | Yes |
Capped | No |
FM quality mark | No |
LPCB quality mark | No |
ULC quality mark | No |
UL quality mark | No |
VdS quality mark | No |
DVGW quality mark for gas | No |
DVGW quality mark for water | Yes |
KIWA certified | No |
Gastec QA mark | No |
KOMO certified | No |
