SEPP Easy I assembly unit

SEPP Easy I assembly unit

5590101

applications

natural gas

solutions

building installations industry

approvals

DVGW Gas SVGW Gas
item number size weight dimensions packaging gtin
0049073 Rp1" (DN25) 3.18 kg 290x150x118 mm carton (1 pce) 04018422283693

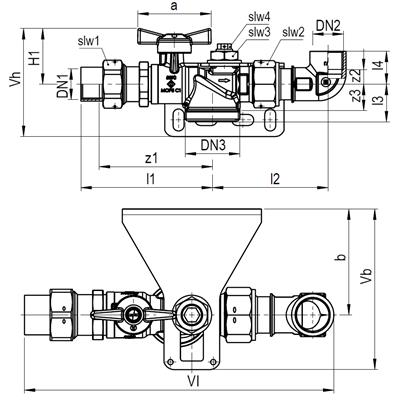

item number size d1 l1 z1 DN1 d2 l2 z2 DN2 a
0049073 Rp1" (DN25) (1" (DN25)) 144 124 1" (DN25) (1" (DN25)) 126 16 1" (DN25) 80
see above for the diagram related to these dimensions
color brass
materials brass
finishing none
manufacturer 4018422000009
connection type G - female thread gas cylindrical (BSPP)
pressure rating (PN) PN 5
sealing HNBR
product group valves (accessories (valves), ball valves)
ETIM class EC011015 Gas valve
HS code 84818081
country of origin United Kingdom
brand Seppelfricke
series SEPP Easy®
type 5590101
SCIP 00338641-a733-4e80-bbfb-ab3f43f72cc9
label value
ETIM class EC011015 Gas valve
Surface protection housing Untreated
Nominal diameter connection 1 1 inch (25)
Connection 1 Internal thread cylindrical BSPP-G (ISO 228-1)
Nominal diameter connection 2 1 inch (25)
Connection 2 Internal thread cylindrical BSPP-G (ISO 228-1)
Approved according to EN 331 No
Length of connection 1 144mm
Length of connection 1 (imperial) 5.67"
Working length connection 1 124mm
Working length connection 1 (imperial) 4.88"
Length of connection 2 126mm
Length of connection 2 (imperial) 4.96"
Working length connection 2 16mm
Working length connection 2 (imperial) 0.63"
DVGW quality mark for gas Yes
Gastec QA mark No

accessories

item number description
0200641 SEPP Easy I replacement-mounting bracket DN25
0049481 SF Gas half screw connection bronze DN25 22 x G1 3/8
0048074 SF Gas half screw connection bronze DN25 28 x G1 3/8
0034504 SEPP Easy I replacement-connection DN25 Rp1 x G13/8
0034507 SEPP Easy I replacement-angle connection DN25 Rp1 x G13/8
0047396 SEPP Easy I replacement-ball valve DN25 G13/8
