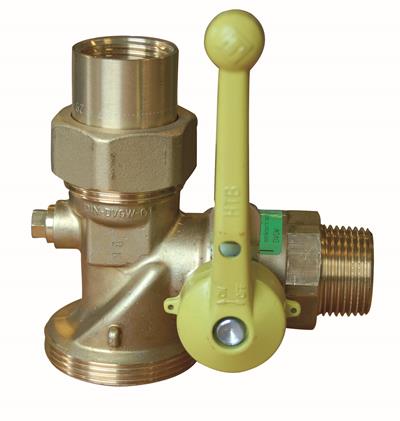

542360.25
applications
solutions
approvals
| item number | size | weight | dimensions | packaging | gtin |
|---|---|---|---|---|---|
| 0210352 | R1" x Rp1" (DN25) | 1.5 kg | 117x100x155 mm | carton (1 pce) | 04018422301212 |
| item number | size | DN1 |
|---|---|---|
| 0210352 | R1" x Rp1" (DN25) | 1" (DN25) |
| color | brass |
|---|---|
| materials | brass |
| finishing | none |
| manufacturer | Seppelfricke |
| connection type | G - female thread gas cylindrical (BSPP) |
| pressure rating (PN) | PN 5 |
| sealing | NBR (Nitrile) |
| product group | valves (ball valves, angle valve, de-aeration valve) |
|---|---|
| ETIM class | EC011015 Gas valve |
| HS code | 84818081 |
| brand | Seppelfricke |
| series | SEPP Gas |
| type | 542360.25 |
| SCIP | 27e1d8ab-0950-4905-b717-9c1fcdd55836 |
| label | value |
|---|---|
| ETIM class | EC011015 Gas valve |
| Surface protection housing | Untreated |
| Nominal diameter connection 1 | 1 inch (25) |
| Connection 1 | Internal thread cylindrical BSPP-G (ISO 228-1) |
| Approved according to EN 331 | No |
| DVGW quality mark for gas | Yes |
| Gastec QA mark | No |
| item number | description | |
|---|---|---|
 |
0049481 | Seppelfricke SEPP Gas half screw connection d22 x G1 3/8" (DN25) |
