5290112
applications
solutions
approvals
| item number | size | weight | dimensions | packaging | gtin |
|---|---|---|---|---|---|
| 0200180 | DN25 | 2.56 kg | 167x171x181 mm | carton (1 pce) | 04018422293258 |

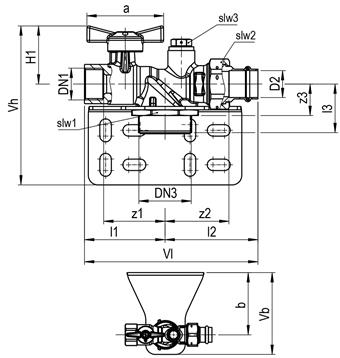

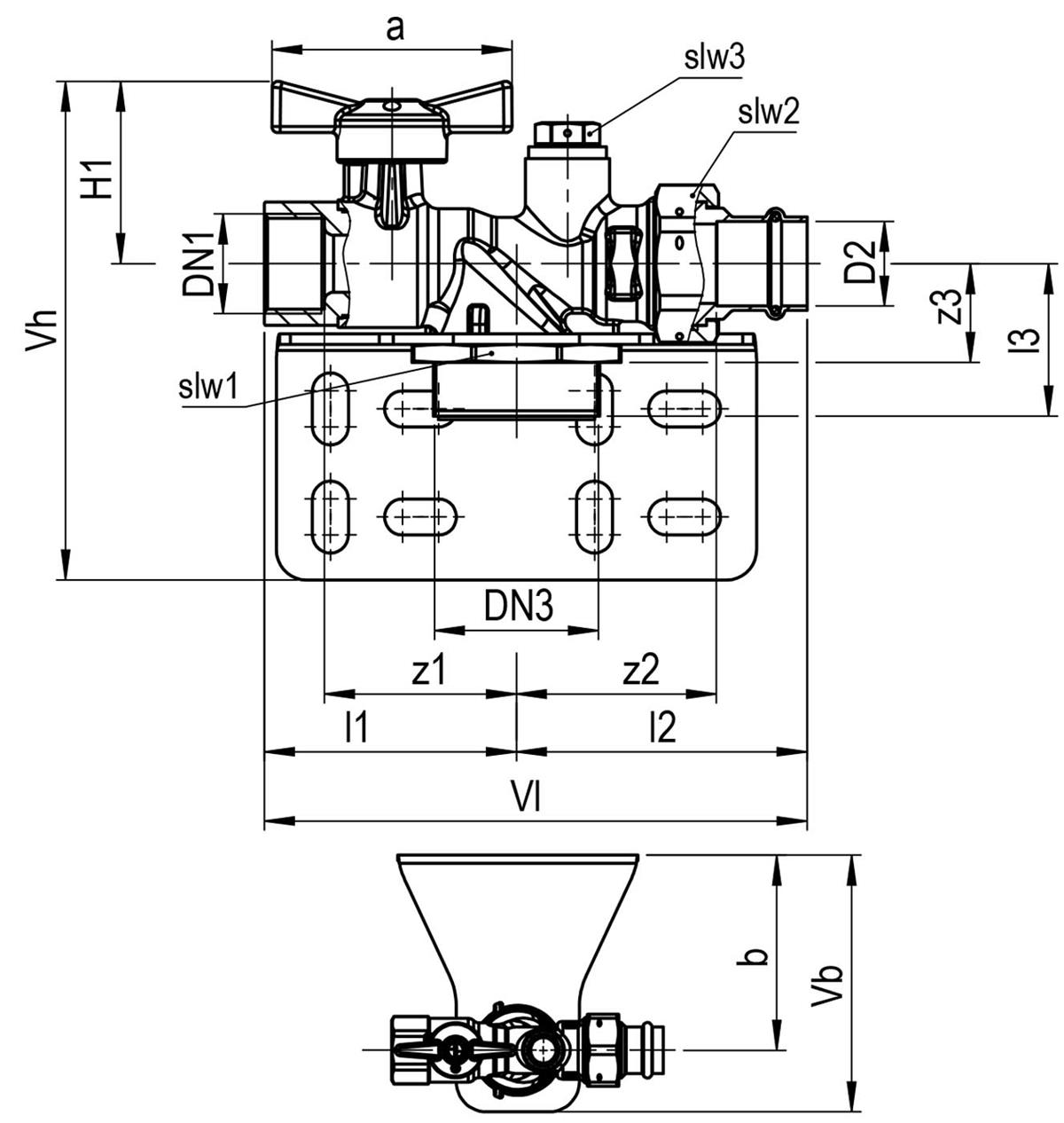

| item number | size | DN1 | l1 | z1 | l2 | z2 | D1 | a |
|---|---|---|---|---|---|---|---|---|
| 0200180 | DN25 | 1" (DN25) | 84 | 64 | 94 | 67 | 28 | 80 |
| color | brass |
|---|---|
| materials | brass |
| finishing | none |
| manufacturer | Seppelfricke |
| connection type | G - female thread gas cylindrical (BSPP) |
| pressure rating (PN) | PN 5 |
| sealing | HNBR |
| product group | valves (accessories (valves), ball valves) |
|---|---|
| ETIM class | EC011015 Gas valve |
| HS code | 84818081 |
| brand | Seppelfricke |
| series | SEPP Easy® |
| type | 5290112 |
| label | value |
|---|---|
| ETIM class | EC011015 Gas valve |
| Surface protection housing | Untreated |
| Nominal diameter connection 1 | 1 inch (25) |
| Connection 1 | Internal thread cylindrical BSPP-G (ISO 228-1) |
| Approved according to EN 331 | No |
| Length of connection 1 | 84mm |
| Length of connection 1 (imperial) | 3.31" |
| Working length connection 1 | 64mm |
| Working length connection 1 (imperial) | 2.52" |
| Length of connection 2 | 94mm |
| Length of connection 2 (imperial) | 3.7" |
| Working length connection 2 | 67mm |
| Working length connection 2 (imperial) | 2.64" |
| DVGW quality mark for gas | Yes |
| Gastec QA mark | No |
| item number | description | |
|---|---|---|
 |
0200641 | Seppelfricke SEPP Easy® I replacement-mounting bracket 1" (DN25) |
 |
0049481 | Seppelfricke SEPP Gas half screw connection d22 x G1 3/8" (DN25) |
|
0048074 | Seppelfricke SEPP Gas half screw connection d28 x G1 3/8" (DN25) |
 |
0034504 | Seppelfricke SEPP Easy® I replacement-connection FM Rp1"xG1 3/8" (DN25) |
 |
0034507 | Seppelfricke SEPP Easy® I replacement-angle connection FM Rp1"xG1 3/8" (DN25) |
 |
0030139 | Seppelfricke SEPP Easy® I replacement-ball valve MM G1 3/8" (DN25) |
