SEPP Easy I assembly unit

SEPP Easy I assembly unit

5290102

applications

natural gas

solutions

building installations industry

approvals

DVGW Gas
item number size weight dimensions packaging gtin
0049854 22 (DN25) 2.88 kg 167x171x222 mm carton (1 pce) 04018422291155
0048688 28 (DN25) 2.8 kg 167x171x221 mm carton (1 pce) 04018422268973
item number size DN1 l1 z1 l2 z2 D1 a
0049854 22 (DN25) 1" (DN25) 125 95 98 68 22 80
0048688 28 (DN25) 1" (DN25) 124 94 97 67 28 80

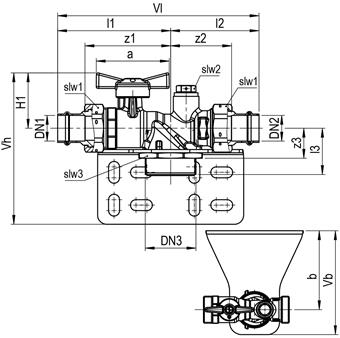

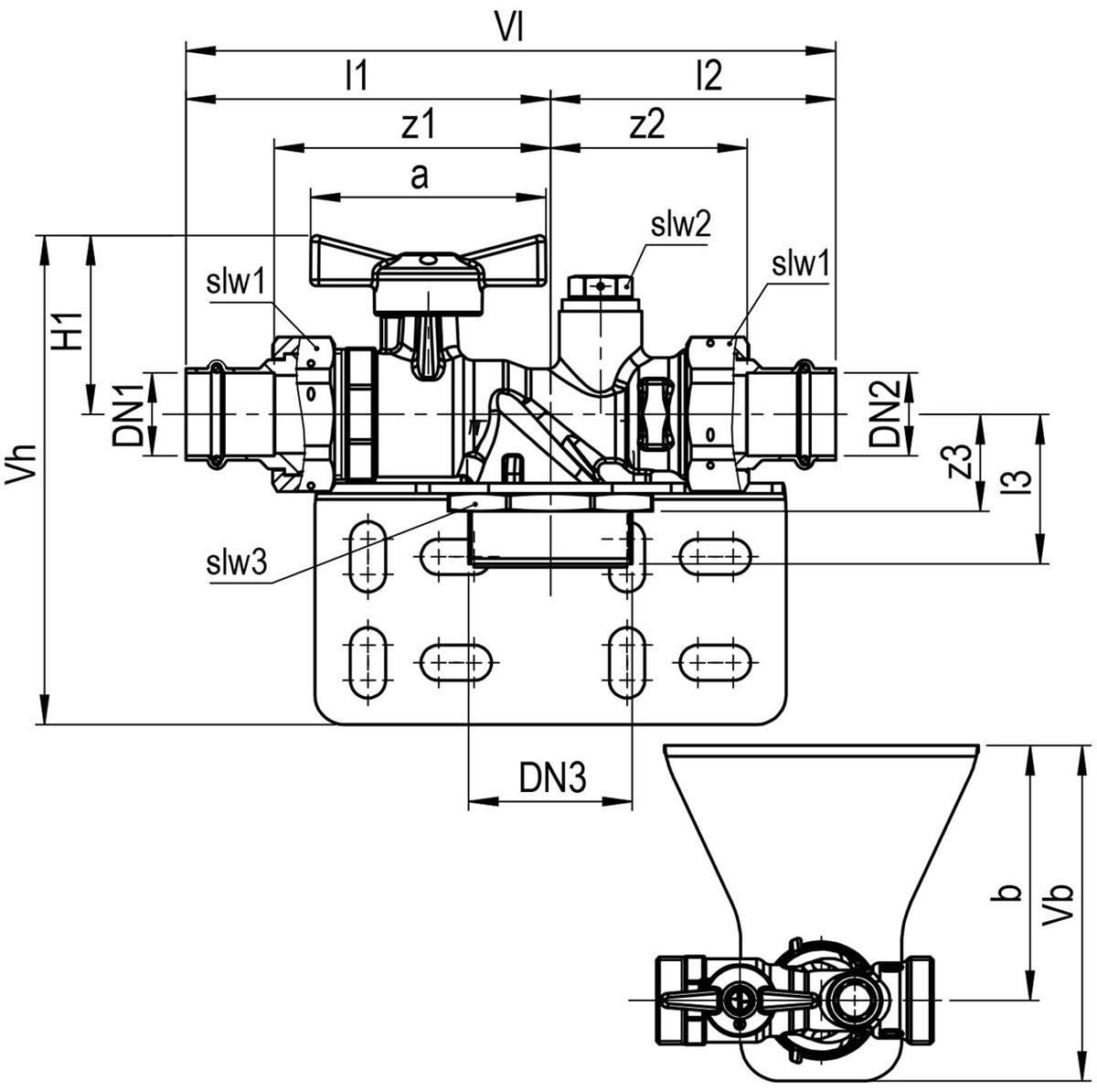

see above for the diagram related to these dimensions
color brass
materials brass
finishing none
manufacturer Seppelfricke
connection type press
pressure rating (PN) PN 5
sealing HNBR
product group valves (accessories (valves), ball valves)
ETIM class EC011015 Gas valve
HS code 84818081
country of origin United Kingdom
brand Seppelfricke
series SEPP Easy®
type 5290102
SCIP 00338641-a733-4e80-bbfb-ab3f43f72cc9
label value
ETIM class EC011015 Gas valve
Surface protection housing Untreated
Nominal diameter connection 1 1 inch (25)
Connection 1 Press sleeve
Approved according to EN 331 No
DVGW quality mark for gas Yes
Gastec QA mark No

accessories

item number description
0200641 Seppelfricke SEPP Easy® I replacement-mounting bracket 1" (DN25)
0049481 Seppelfricke SEPP Gas half screw connection d22 x G1 3/8" (DN25)
0048074 Seppelfricke SEPP Gas half screw connection d28 x G1 3/8" (DN25)
0034504 Seppelfricke SEPP Easy® I replacement-connection FM Rp1"xG1 3/8" (DN25)
0034507 Seppelfricke SEPP Easy® I replacement-angle connection FM Rp1"xG1 3/8" (DN25)
0030139 Seppelfricke SEPP Easy® I replacement-ball valve MM G1 3/8" (DN25)
