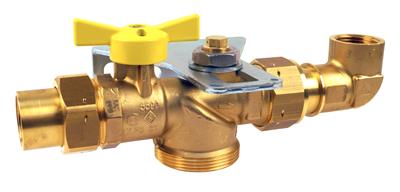

SEPP Easy I assembly unit

SEPP Easy I assembly unit

5290101

applications

natural gas

solutions

building installations industry

approvals

DVGW Gas ÖVGW Gas
item number size weight dimensions packaging gtin
0048687 Rp1" (DN25) 3.1 kg 118x150x264 mm carton (1 pce) 04018422268966
item number size DN1 l1 z1 DN2 l2 z2 DN3 l3 z3 a
0048687 Rp1" (DN25) 1" (DN25) 119 99 1" (DN25) 36 16 2" (DN50) 41 29 80

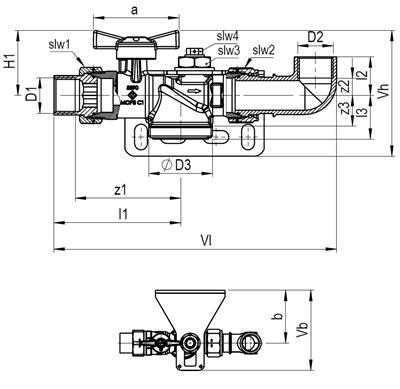

see above for the diagram related to these dimensions
color brass, silver
materials brass
finishing none
manufacturer Seppelfricke
connection type G - female thread gas cylindrical (BSPP)
sealing HNBR
product group valves (accessories (valves), ball valves)
ETIM class EC011015 Gas valve
HS code 84818081
country of origin United Kingdom
brand Seppelfricke
series SEPP Easy®
type 5290101
SCIP 00338641-a733-4e80-bbfb-ab3f43f72cc9
label value
ETIM class EC011015 Gas valve
Surface protection housing Untreated
Nominal diameter connection 1 1 inch (25)
Connection 1 Internal thread cylindrical BSPP-G (ISO 228-1)
Nominal diameter connection 2 1 inch (25)
Connection 2 Internal thread cylindrical BSPP-G (ISO 228-1)
Approved according to EN 331 No
Length of connection 1 118.5mm
Length of connection 1 (imperial) 4.67"
Working length connection 1 98.5mm
Working length connection 1 (imperial) 3.88"
Length of connection 2 36mm
Length of connection 2 (imperial) 1.42"
Working length connection 2 16mm
Working length connection 2 (imperial) 0.63"
DVGW quality mark for gas Yes
Gastec QA mark No

accessories

item number description
0200641 Seppelfricke SEPP Easy® I replacement-mounting bracket 1" (DN25)
0049481 Seppelfricke SEPP Gas half screw connection d22 x G1 3/8" (DN25)
0048074 Seppelfricke SEPP Gas half screw connection d28 x G1 3/8" (DN25)
0034504 Seppelfricke SEPP Easy® I replacement-connection FM Rp1"xG1 3/8" (DN25)
0034507 Seppelfricke SEPP Easy® I replacement-angle connection FM Rp1"xG1 3/8" (DN25)
0030139 Seppelfricke SEPP Easy® I replacement-ball valve MM G1 3/8" (DN25)
