item number | size | weight | dimensions | packaging | gtin |
---|---|---|---|---|---|
0049963 | G1 3/8" (DN25) | 2.34 kg | 167x171x164 mm | carton (1 pce) | 04018422291858 |

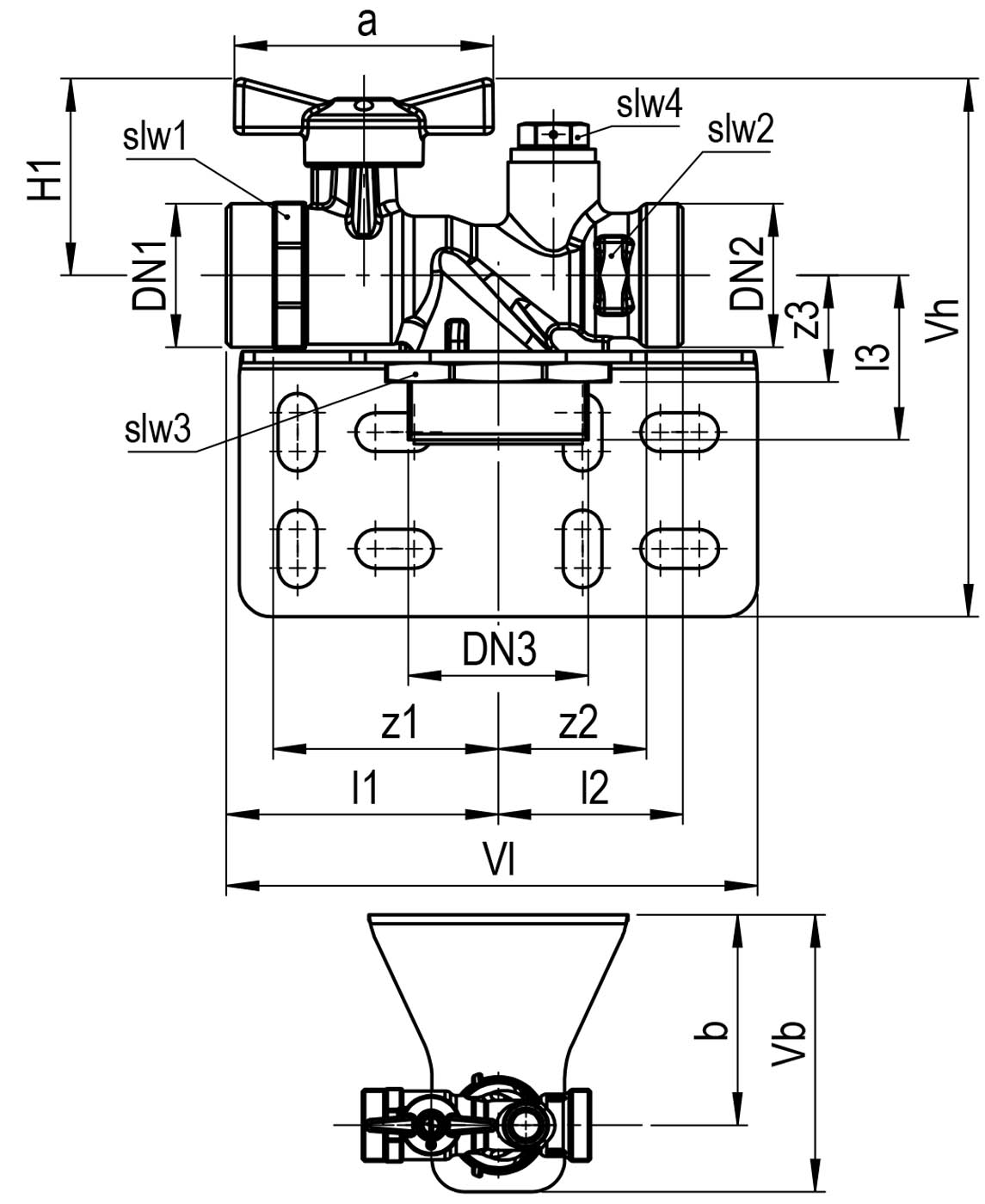

item number | size | DN1 | l1 | z1 | l2 | z2 | a |
---|---|---|---|---|---|---|---|
0049963 | G1 3/8" (DN25) | 1" (DN25) | 84 | 70 | 56 | 46 | 80 |
color | brass |
---|---|
materials | brass |
finishing | none |
manufacturer | Seppelfricke |
connection type | G - male thread gas cylindrical (BSPP) |
pressure rating (PN) | PN 5 |
sealing | HNBR |
product group | valves (accessories (valves), ball valves) |
---|---|
ETIM class | EC011015 Gas valve |
HS code | 84818081 |
brand | Seppelfricke |
series | SEPP EasyĀ® |
type | 5290100 |
SCIP | 00338641-a733-4e80-bbfb-ab3f43f72cc9 |
label | value |
---|---|
ETIM class | EC011015 Gas valve |
Surface protection housing | Untreated |
Nominal diameter connection 1 | 1 inch (25) |
Connection 1 | External thread cylindrical BSPP-G (ISO 228-1) |
Approved according to EN 331 | No |
Length of connection 1 | 84mm |
Length of connection 1 (imperial) | 3.31" |
Working length connection 1 | 70mm |
Working length connection 1 (imperial) | 2.76" |
Length of connection 2 | 56mm |
Length of connection 2 (imperial) | 2.2" |
Working length connection 2 | 46mm |
Working length connection 2 (imperial) | 1.81" |
DVGW quality mark for gas | No |
Gastec QA mark | No |
item number | description | |
---|---|---|
0200641 | Seppelfricke SEPP EasyĀ® I replacement-mounting bracket 1" (DN25) | |
0049481 | Seppelfricke SEPP Gas half screw connection d22 x G1 3/8" (DN25) | |
0048074 | Seppelfricke SEPP Gas half screw connection d28 x G1 3/8" (DN25) | |
0034504 | Seppelfricke SEPP EasyĀ® I replacement-connection FM Rp1"xG1 3/8" (DN25) | |
0034507 | Seppelfricke SEPP EasyĀ® I replacement-angle connection FM Rp1"xG1 3/8" (DN25) | |
0030139 | Seppelfricke SEPP EasyĀ® I replacement-ball valve MM G1 3/8" (DN25) |
