VSH Clamp clamp ring

code

size

dimensions

weight

packaging

gtin

code

6323746

size

15

dimensions

17x17x8 mm

weight

0 kg

packaging

bag (50 pce)

gtin

08711985133417

code

6323878

size

22

dimensions

25x25x9 mm

weight

0 kg

packaging

bag (50 pce)

gtin

08711985133431

code

6323891

size

28

dimensions

30x30x10 mm

weight

0 kg

packaging

bag (50 pce)

gtin

08711985133455

code

6323911

size

35

dimensions

37x37x10 mm

weight

0 kg

packaging

bag (50 pce)

gtin

08711985133479

code

6323922

size

42

dimensions

45x45x12 mm

weight

0.01 kg

packaging

bag (5 pce)

gtin

08711985133493

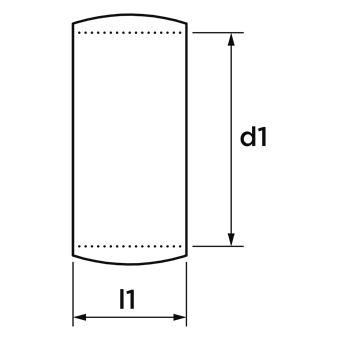

code

size

d1

DN1

l1

code

6323746

size

15

d1

15.0

DN1

DN12

l1

17

code

6323878

size

22

d1

22.0

DN1

DN20

l1

25

code

6323891

size

28

d1

28.0

DN1

DN25

l1

30

code

6323911

size

35

d1

35.0

DN1

DN32

l1

37

code

6323922

size

42

d1

42.0

DN1

DN40

l1

45

product info

item

VSH Clamp clamp ring

item number with gtin

206

manufacturer

Aalberts integrated piping systems B.V. (VSH)

weight

0.01 kg

dimensions

45x45x12 mm

characteristics

color

black

materials

plastic (PA 6.6 (Nylon 6.6))

finishing

none

shape

round

connection type

clamp

technical

max operating pressure liquid

6 bar

max medium temperature

90 °C

peak medium temperature

120 °C

general

product group

fittingen (accessories (fittings))

ETIM class

EC011041 Compression ring

HS code

74122000

brand

VSH

series

Clamp

type

206

image | png

206

diagram | png

Diagram

certifications | pdf

TM65 Embodied Carbon Declaration

label

value

label

etim-class

value

EC011041 Compression ring

label

Material

value

Plastic

label

Suitable for copper tube

value

Yes

label

Suitable for stainless steel tube

value

No

label

Suitable for aluminium tube

value

No

label

Suitable for plastic tube

value

No

label

Suitable for plastic multi-layer pipes

value

No

label

System specific

value

Yes
