VSH Clamp union nut

item number

size

dimensions

weight

packaging

gtin

item number

6323570

size

15

dimensions

28x28x15 mm

weight

0.02 kg

packaging

bag (50 pce)

gtin

08711985133752

item number

6323669

size

22

dimensions

38x38x16 mm

weight

0.04 kg

packaging

bag (50 pce)

gtin

08711985133776

item number

6323680

size

28

dimensions

44x44x17 mm

weight

0.06 kg

packaging

bag (50 pce)

gtin

08711985133790

item number

size

d1

DN1

slw1

item number

6323570

size

15

d1

15.0

DN1

DN12

slw1

24

item number

6323669

size

22

d1

22.0

DN1

DN20

slw1

32

item number

6323680

size

28

d1

28.0

DN1

DN25

slw1

39

characteristics

color

silver

materials

brass (CW617N)

finishing

galvanised

manufacturer

Aalberts integrated piping systems B.V. (VSH)

shape

Nut

connection type

clamp

general

product group

fittings (accessories (fittings))

ETIM class

EC010592 Coupling nut

HS code

74122000

brand

VSH

series

Clamp

type

205

SCIP

98ab3390-1a8e-4560-943d-8a0d9c101b3e

image | png

205

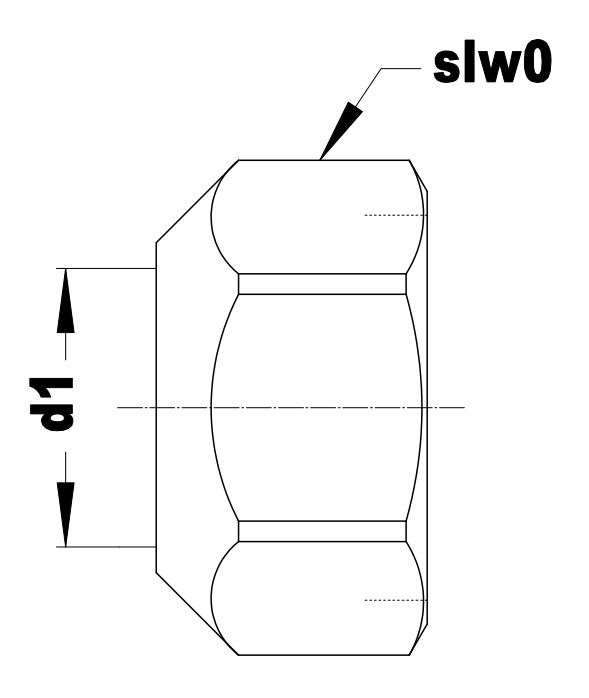

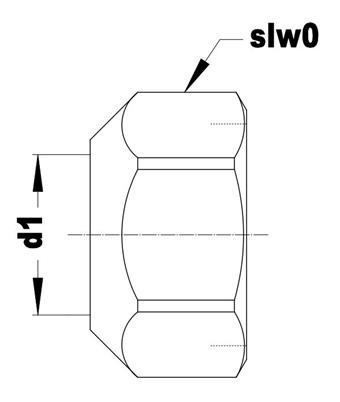

diagram | jpg

Diagram

link to sheet | pdf

MSDS_VSH_Klem

label

value

label

ETIM class

value

EC010592 Coupling nut

label

Material

value

Brass

label

Material quality

value

CuZn40Pb2 (CW617N)
