VSH Clamp blanking plug with air vent

group: 204

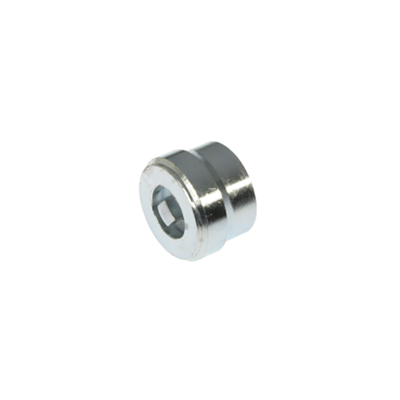

The VSH Clamp 204 is a brass blanking plug with air vent, with a clamp and male thread end. Easy installation and high quality are the top priorities of the VSH Clamp product range.
  • simple installation with standard tools
  • quick connection technology allowing reassembly
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

heating

heating

segments

commercial building

commercial building

industry

industry

approvals

no approvals available

item number

size

d1

DN1

l1

slw1

item number

6323548

size

15

d1

15.0

DN1

DN12

l1

16

slw1

5

item number

6323559

size

22

d1

22.0

DN1

DN20

l1

16

slw1

5

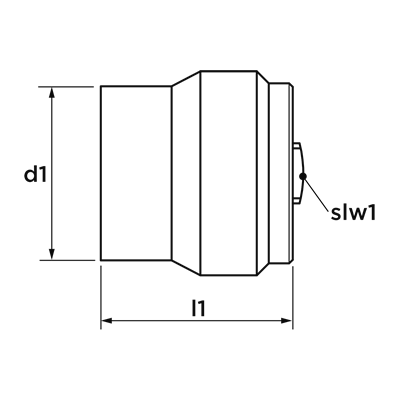

technical drawing for product

characteristics

color

silver

materials

brass (CW617N)

finishing

galvanised

manufacturer

Aalberts integrated piping systems B.V. (VSH)

shape

straight

connection type

clamp

general

product group

fittings (demountable)

ETIM class

EC003023 Fitting with 1 connection

HS code

74122000

brand

VSH

series

Clamp

type

204

UNSPS

40172401

SCIP

98ab3390-1a8e-4560-943d-8a0d9c101b3e

label

value

label

Material connection 1

value

Brass

label

Material quality connection 1

value

CuZn40Pb2 (CW617N)

label

Surface protection connection 1

value

Galvanic/electrolytic zinc plated

label

System specific

value

Yes

label

Connection 1

value

Clamp connection

label

Max. operating pressure at 20 °C

value

6bar

label

Max. operating pressure at 20 °C (imperial)

value

87.02psi

label

Main colour fitting

value

Grey

label

Length of connection 1

value

16mm

label

Length of connection 1 (imperial)

value

0.63"

label

Wrench width

value

5mm

label

Wrench width (imperial)

value

0.2"

label

Medium temperature (continuous)

value

0°C - 90°C

label

Medium temperature (continuous) (imperial)

value

32°F - 194°F

label

With sealing rings/gaskets

value

No

label

With drain valve

value

No

label

With de-aerator

value

Yes

label

Capped

value

No

label

With connection indicator

value

No

label

FM quality mark

value

No

label

UL quality mark

value

No

label

ULC quality mark

value

No

label

LPCB quality mark

value

No

label

DIN-CERTCO certificate

value

No

label

VdS quality mark

value

No

label

With approval for TÜV

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No

label

Type approval according to BBR/EKS

value

No
