VSH Clamp elbow 90° (clamp x male)

VSH Clamp elbow 90° (clamp x male)

group: 103SP

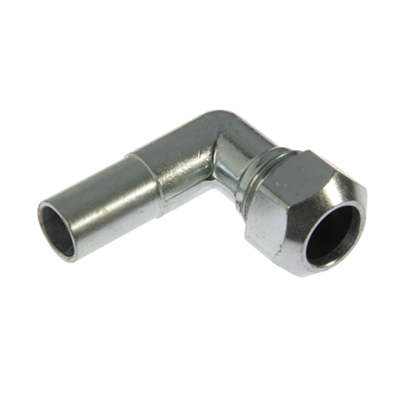

The VSH Clamp 103SP is a 90° galvanized brass radiator coupling, with a clamp and male end. Easy installation and high quality are the top priorities of the VSH Clamp product range.

  • simple installation with standard tools
  • quick connection technology allowing reassembly

applications

heating

heating

show all
show less

solutions

building installations

building installations

industry

industry

show all
show less

approvals

no approvals available

item number size weight dimensions packaging gtin
6320864 15xØ15 0.08 kg 59x28x24 mm bag (10 pce) 08711985134278
6320875 22xØ22 0.11 kg 60x32x37 mm bag (10 pce) 08711985132892
item number size d1 DN1 l1 z1 slw1 d2 DN2 l2 z2
6320864 15xØ15 15.0 DN12 40 18 24 15.0 DN12 45 23
6320875 22xØ22 22.0 DN20 36 13 32 22.0 DN20 41 16

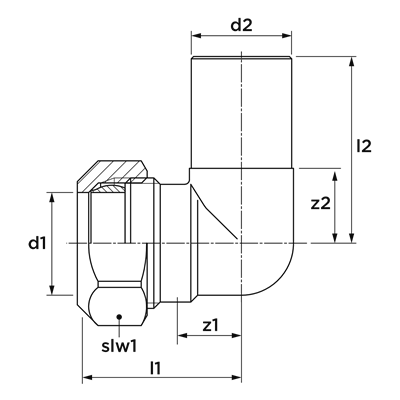

drawing for product
color silver
materials brass (CW617N)
finishing galvanised
manufacturer Aalberts integrated piping systems B.V. (VSH)
shape Elbow (90º)
connection type clamp, tube end
sealing Plastic sealing
product group fittings (demountable)
ETIM class EC003024 Fitting with 2 connections
HS code 74122000
brand VSH
series Clamp
type 103SP
UNSPS 40171701
SCIP 98ab3390-1a8e-4560-943d-8a0d9c101b3e
label value
ETIM class EC003024 Fitting with 2 connections
Material connection 1 Brass
Material quality connection 1 CuZn40Pb2 (CW617N)
Surface protection connection 1 Galvanic/electrolytic zinc plated
Material connection 2 Brass
Material quality connection 2 CuZn40Pb2 (CW617N)
Surface protection connection 2 Galvanic/electrolytic zinc plated
Shape Bend
Model 3-part
Bend angle 90°
Reducing No
Eccentric No
System specific Yes
Connection 1 Clamp connection
Connection 2 Spigot/tube end
Main colour fitting Grey
With buffer stud No
High tensile strength Yes
Medium temperature (continuous) 0°C - 90°C
Medium temperature (continuous) (imperial) 32°F - 194°F
Max. operating pressure at 20 °C 6bar
Max. operating pressure at 20 °C (imperial) 87.02psi
With thermal insulation No
With sealing rings/gaskets No
Capped No
With connection indicator No
With drain valve No
With de-aerator No
FM quality mark No
LPCB quality mark No
ULC quality mark No
UL quality mark No
DIN-CERTCO certificate No
VdS quality mark No
With approval for TÜV No
DVGW quality mark for gas No
DVGW quality mark for water No
Certified according to NF 545 No
KIWA certified No
Gastec QA mark No
KOMO certified No
Gastec QA - AR 214 (H2) No
Type approval according to BBR/EKS No

accessories

item number description
6323251 VSH Clamp one piece reducer MF 15x12
6323451 VSH Clamp blanking plug M 15
6323548 VSH Clamp blanking plug & air release M 15
6323746 VSH Clamp ring 15
6323570 VSH Clamp nut F 15

contains

item number description
6323570 VSH Clamp nut F 15 1
6323669 VSH Clamp nut F 22 1
6323746 VSH Clamp ring 15 1
6323878 VSH Clamp ring 22 1
