group: 103

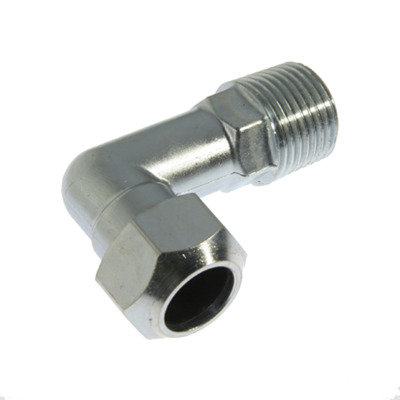

The VSH Clamp 103 is a 90° galvanized brass radiator coupling, with a clamp and male thread end. Easy installation and high quality are the top priorities of the VSH Clamp product range.
heating
building installations
industry
no approvals available
| item number | size | weight | dimensions | packaging | gtin |
|---|---|---|---|---|---|
| 6320831 | 15xR1/2" | 0.09 kg | 61x24x43 mm | bag (10 pce) | 08711985135909 |

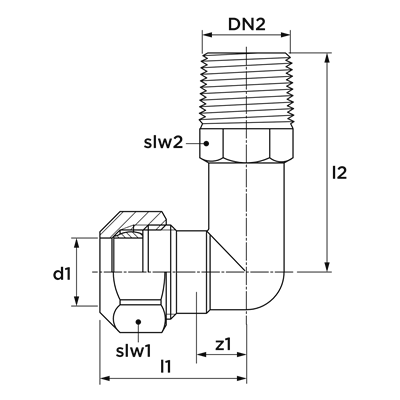

| item number | size | d1 | DN1 | l1 | z1 | slw1 | d2 | DN2 | l2 | slw2 |
|---|---|---|---|---|---|---|---|---|---|---|
| 6320831 | 15xR1/2" | 15.0 | DN12 | 33 | 11 | 24 | 21.3 | 1/2" (DN15) | 49 | 18 |
| color | silver |
|---|---|
| materials | brass (CW617N) |
| finishing | galvanised |
| manufacturer | Aalberts integrated piping systems B.V. (VSH) |
| shape | Perpendicular |
| connection type | clamp, R - male thread gas conical (BSPT) |
| sealing | Plastic sealing |
| product group | fittings (demountable) |
|---|---|
| ETIM class | EC011010 Radiator coupling |
| HS code | 74122000 |
| brand | VSH |
| series | Clamp |
| type | 103 |
| UNSPS | 40171701 |
| SCIP | 98ab3390-1a8e-4560-943d-8a0d9c101b3e |
| label | value |
|---|---|
| ETIM class | EC011010 Radiator coupling |
| Material | Brass |
| Left-handed thread | No |
| Outer pipe diameter | 15mm |
| Outer pipe diameter (imperial) | 0.59" |
| With compression set | No |
| Length of connection 1 | 33mm |
| Length of connection 1 (imperial) | 1.3" |
| Working length connection 1 | 11mm |
| Working length connection 1 (imperial) | 0.43" |
| Length of connection 2 | 49mm |
| Length of connection 2 (imperial) | 1.93" |
| KOMO certified | No |
| item number | description | |
|---|---|---|
 |
6323251 | VSH Clamp one piece reducer MF 15x12 |
 |
6323451 | VSH Clamp blanking plug M 15 |
 |
6323548 | VSH Clamp blanking plug & air release M 15 |
 |
6323746 | VSH Clamp ring 15 |
 |
6323570 | VSH Clamp nut F 15 |
| item number | description | ||
|---|---|---|---|
|
6323570 | VSH Clamp nut F 15 | 1 |
|
6323746 | VSH Clamp ring 15 | 1 |
