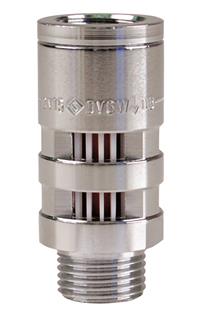

Seppelfricke SEPP Safe pipe interrupter DB, form A2 class 1+2+3+4 FM G1/2" (DN15) Cr

group: 8222

item: 0026176

The SEPP Safe 8222 vacuum braker type DB has an elastic membrane that closes the air gaps when water flows. When the waterflow is cut, or when there is underpressure, the air gaps open to allow air to enter the pipe section.
  • a DP vacuum braker protects against suction at underpressure, not against counterpressure
  • downstream,only free flow (pipe/hose) is alowed
  • it is not alowed to place a valve downstream from the vacuum breaker
  • the vacuum braker must have at least the same size (DN) as the upstream pipe
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

segments

commercial building

commercial building

industry

industry

approvals

no approvals available

characteristics

color

chrome

materials

brass

finishing

chromed

manufacturer

Seppelfricke

shape

straight

connection type

G - female thread gas cylindrical (BSPP), G - male thread gas cylindrical (BSPP)

pressure rating (PN)

PN 10

sealing

EPDM

general

product group

safety valves (safety valves)

ETIM class

EC010131 Aerator (pressureless system)

HS code

84818019

brand

Seppelfricke

series

SEPP Safe

type

8222

UNSPS

40141604

product info

item

Seppelfricke SEPP Safe pipe interrupter DB, form A2 class 1+2+3+4 FM G1/2" (DN15) Cr

item number with gtin

0026176 (04018422192308)

product number with gtin

0026176 (04018422020687)

item group

8222 - SEPP Safe vacuum braker DB, form A2 (female x male thread)

size

G1/2" (DN15)

weight

0.16 kg

dimensions

60x29x29 mm

packaging

carton (1 pce)

technical

max operating pressure liquid

10 bar

max medium temperature

90 °C

peak medium temperature

90 °C

label

value

label

DN1

value

1/2" (DN15)

label

DN2

value

1/2" (DN15)

drawing for product

label

value

label

Housing material

value

Brass

label

Nominal diameter

value

1/2 inch (15)

label

Connection 1

value

Internal thread cylindrical BSPP-G (ISO 228-1)

label

Max. operating pressure at 20 °C

value

10bar

label

Max. operating pressure at 20 °C (imperial)

value

145.04psi

label

Max. medium temperature (continuous)

value

90°C

label

Max. medium temperature (continuous) (imperial)

value

194°F

label

Surface protection

value

Chromium-plated

label

Height

value

29mm
