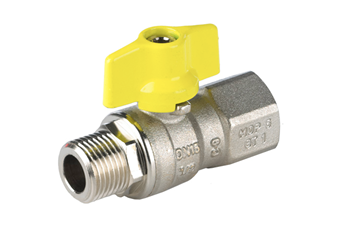

VSH gas ball valve DIN (male thread x female thread)

group: V2801

The VSH V2801 is a gas ball valve DIN with a male- and female thread end.a
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

natural gas

natural gas

segments

residential

residential

commercial building

commercial building

industry

industry

shipbuilding

shipbuilding

approvals

ARGB-KVBG

ARGB-KVBG

characteristics

color

brass

materials

brass

manufacturer

Aalberts integrated piping systems B.V. (VSH)

shape

straight

connection type

Rp - female thread cylindrical (BSPT), R - male thread gas conical (BSPT)

general

product group

valves (ball valves, gas valves)

ETIM class

EC011015 Gas valve

HS code

84818081

brand

VSH

type

V2801

UNSPS

40141607

SCIP

4164f411-1503-4f1c-9573-17d1ce0b4799

label

value

label

ETIM class

label

Nominal diameter connection 1

value

1/2 inch (15)

label

Outer pipe diameter connection 1

value

21.3mm

label

Outer pipe diameter connection 1 (imperial)

value

0.84"

label

Connection 1

value

Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1)

label

With coupling connection 1

value

No

label

Nominal diameter connection 2

value

1/2 inch (15)

label

Connection 2

value

External thread conical BSPT-R (ISO 7-1 / EN 10226-1)

label

With coupling connection 2

value

No

label

Approved according to EN 331

value

No

label

Operation

value

Lever handle

label

DVGW quality mark for gas

value

No

label

Gastec QA mark

value

No
