VSH SudoPress continuous parallel wall plate elbow (2xpress x female thread)

group: SP4978GV

The VSH SudoPress SP4978GV is a flow-through wall plate with parallel connections. The use of a flow-through wall plate ensures constant water quality through connected tap points and prevents stagnation in “dead” tube-ends.By using VSH SudoPress in your installation you can install it in a fast, easy and clean way. VSH SudoPress supplies a piping system that can be used in the most diverse situations.
  • constant water quality due to running taps connected; prevents stagnation in “dead” tube-ends
  • stable mounting and compact design
  • double safety through Visu-Control® and Leak Before Pressed function
  • provided with all relevant approvals
  • clear recognition of material and size
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

heating

heating

cooling

cooling

compressed air

compressed air

solar energy

solar energy

vacuum

vacuum

segments

commercial building

commercial building

industry

industry

shipbuilding

shipbuilding

approvals

ACS

ACS

Bureau Veritas

Bureau Veritas

DVGW Wasser

DVGW Wasser

KIWA

KIWA

QB (CSTBat)

QB (CSTBat)

RISE

RISE

TSU

TSU

WRAS

WRAS

item number

size

d1

DN1

l1

z1

d2

DN2

l2

z2

DN3

l3

z3

slw3

item number

123459704

size

15xRp1/2

d1

15.0

DN1

DN12

l1

53

z1

30

d2

15.0

DN2

DN12

l2

53

z2

30

DN3

1/2" (DN15)

l3

20

z3

11

slw3

26

item number

123459705

size

22xRp1/2

d1

22.0

DN1

DN20

l1

58

z1

34

d2

22.0

DN2

DN20

l2

58

z2

34

DN3

1/2" (DN15)

l3

24

z3

14

slw3

26

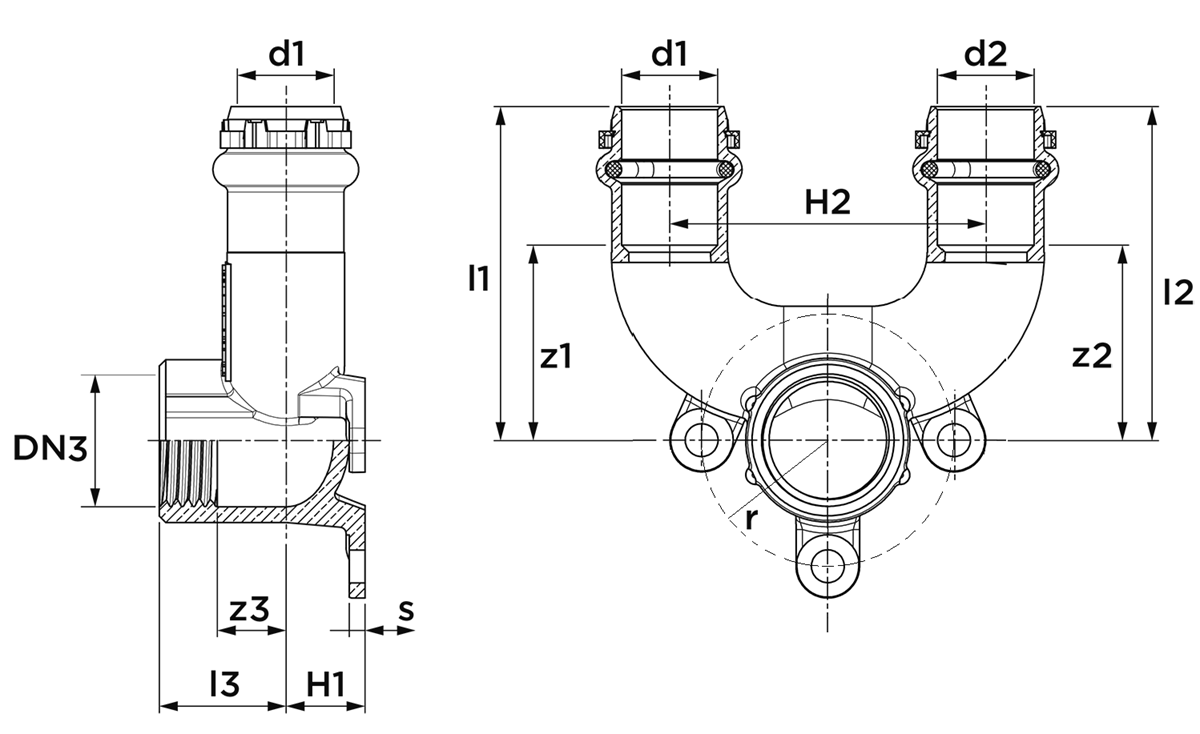

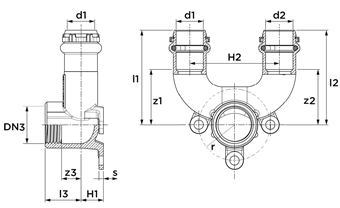

technical drawing for product

characteristics

color

copper

materials

bronze (EN CC499K)

finishing

none

shape

Wall plate (90º)

connection type

press (V), Rp - female thread cylindrical (BSPT)

sealing

EPDM

general

product group

fittings

ETIM class

EC003099 Wall plate

HS code

74122000

brand

VSH

series

SudoPress Copper

type

SP4978GV

UNSPS

40172612

SCIP

9c667905-838e-436f-9f23-94980e0c8c97

technical

max operating pressure liquid

16 bar

min. medium temperature

-20 °C

max medium temperature

110 °C

peak medium temperature

130 °C

image for SP4978GV

image | png

SP4978GV

image for Diagram

diagram | png

Diagram

certifications | pdf

VSH SudoPress Copper 15-54mm RISE ENG

certifications | pdf

VSH SudoPress Copper-ACS

certifications | pdf

VSH SudoPress Copper 15-54mm RISE SE

label

value

label

ETIM class

label

Housing material

value

Bronze

label

Material quality

value

Bronze (Rg 5)

label

Surface protection

value

Untreated

label

Shape

value

Continuous parallel

label

System specific

value

Yes

label

Connection

value

Press sleeve

label

Medium temperature (continuous)

value

-20°C - 110°C

label

Medium temperature (continuous) (imperial)

value

-4°F - 230°F

label

Max. operating pressure at 20 °C

value

16bar

label

Max. operating pressure at 20 °C (imperial)

value

232.06psi

label

Contour code

value

V

label

With connection indicator

value

Yes

label

With protective cap

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

Yes

label

KIWA certified

value

Yes

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No
