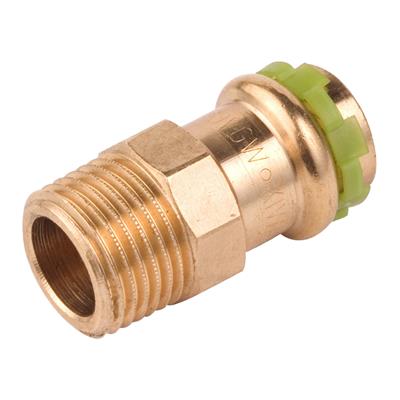

SP4243GV
The VSH SudoPress SP4243GV is a straight connector with a press and a male thread end. By using VSH SudoPress in your piping installation you can install in a quick, easy and clean way. VSH SudoPress provides a piping system that can be used in the most diverse situations.
applications
solutions
approvals
| item number | size | weight | dimensions | packaging | gtin |
|---|---|---|---|---|---|
| 6671907 | 12xR3/8" | 0.03 kg | 36x24x24 mm | bag (5 pce) | 03430651359559 |
| 6671918 | 12xR1/2" | 0.05 kg | 41x24x24 mm | bag (5 pce) | 03430651359542 |
| 6671913 | 14xR3/8" | 0.04 kg | 40x22x22 mm | bag (5 pce) | 03430651359597 |
| 6671911 | 14xR3/4 | 0.08 kg | 49x28x28 mm | bag (5 pce) | 03430651359580 |
| 6671909 | 14xR1/2" | 0.05 kg | 45x22x22 mm | bag (5 pce) | 03430651359566 |
| 6671929 | 15xR3/8" | 0.04 kg | 40x24x24 mm | bag (5 pce) | 03430651359634 |
| 6671931 | 15xR1/2" | 0.05 kg | 45x24x24 mm | bag (5 pce) | 03430651359610 |
| 6671940 | 15xR3/4" | 0.06 kg | 47x27x27 mm | bag (5 pce) | 03430651359627 |
| 6671932 | 16xR1/2 | 0.05 kg | 45x22x24 mm | bag (5 pce) | 03430651359641 |
| 6671934 | 16xR3/4 | 0.08 kg | 49x28x28 mm | bag (5 pce) | 03430651359665 |
| 6671951 | 18xR1/2" | 0.05 kg | 44x27x27 mm | bag (5 pce) | 03430651359689 |
| 6671962 | 18xR3/4" | 0.06 kg | 47x27x27 mm | bag (5 pce) | 03430651359696 |
| 6671973 | 22xR1/2" | 0.06 kg | 46x32x32 mm | bag (5 pce) | 03430651359719 |
| 6671984 | 22xR3/4" | 0.07 kg | 48x32x32 mm | bag (5 pce) | 03430651359733 |
| 6671995 | 22xR1" | 0.09 kg | 51x34x34 mm | bag (5 pce) | 03430651359702 |
| 6672006 | 28xR3/4" | 0.09 kg | 49x38x38 mm | bag (5 pce) | 03430651359771 |
| 6672017 | 28xR1" | 0.11 kg | 51x38x38 mm | bag (5 pce) | 03430651359757 |
| 6672028 | 28xR1 1/4" | 0.19 kg | 53x43x43 mm | bag (5 pce) | 03430651359764 |
| 6672039 | 35xR1" | 0.13 kg | 53x25x44 mm | bag (5 pce) | 03430651359788 |
| 6672041 | 35xR1 1/4" | 0.18 kg | 55x25x44 mm | bag (1 pce) | 03430650359802 |
| 6672050 | 35xR1 1/2" | 0.2 kg | 54x49x49 mm | bag (1 pce) | 03430650359796 |
| 6672061 | 42xR1 1/4" | 0.22 kg | 63x36x54 mm | bag (1 pce) | 03430650359826 |
| 6672072 | 42xR1 1/2" | 0.21 kg | 62x36x54 mm | bag (1 pce) | 03430650359819 |
| 6672083 | 54xR1 1/2" | 0.28 kg | 68x41x66 mm | bag (1 pce) | 03430650359833 |
| 6672094 | 54xR2" | 0.42 kg | 74x68x68 mm | bag (1 pce) | 03430650359840 |
| item number | size | d1 | DN1 | l1 | z1 | d2 | DN2 | l2 | slw2 |
|---|---|---|---|---|---|---|---|---|---|
| 6671907 | 12xR3/8" | 12.0 | DN10 | 25 | 7 | 17.2 | 3/8" (DN10) | 11 | 22 |
| 6671918 | 12xR1/2" | 12.0 | DN10 | 26 | 8 | 21.3 | 1/2" (DN15) | 15 | 22 |
| 6671913 | 14xR3/8" | 14.0 | DN12 | 27 | 3 | 17.2 | 3/8" (DN10) | 11 | 20 |
| 6671911 | 14xR3/4 | 14.0 | DN12 | 27 | 3 | 26.9 | 3/4" (DN20) | 16 | 26 |
| 6671909 | 14xR1/2" | 14.0 | DN12 | 27 | 3 | 21.3 | 1/2" (DN15) | 15 | 22 |
| 6671929 | 15xR3/8" | 15.0 | DN12 | 29 | 7 | 17.2 | 3/8" (DN10) | 11 | 22 |
| 6671931 | 15xR1/2" | 15.0 | DN12 | 30 | 8 | 21.3 | 1/2" (DN15) | 15 | 22 |
| 6671940 | 15xR3/4" | 15.0 | DN12 | 30 | 8 | 26.9 | 3/4" (DN20) | 16 | 24 |
| 6671932 | 16xR1/2 | 16.0 | DN12 | 27 | 3 | 21.3 | 1/2" (DN15) | 15 | 22 |
| 6671934 | 16xR3/4 | 16.0 | DN12 | 27 | 3 | 26.9 | 3/4" (DN20) | 16 | 26 |
| 6671951 | 18xR1/2" | 18.0 | DN15 | 29 | 7 | 21.3 | 1/2" (DN15) | 15 | 24 |
| 6671962 | 18xR3/4" | 18.0 | DN15 | 30 | 8 | 26.9 | 3/4" (DN20) | 16 | 24 |
| 6671973 | 22xR1/2" | 22.0 | DN20 | 30 | 7 | 21.3 | 1/2" (DN15) | 15 | 29 |
| 6671984 | 22xR3/4" | 22.0 | DN20 | 31 | 8 | 26.9 | 3/4" (DN20) | 16 | 29 |
| 6671995 | 22xR1" | 22.0 | DN20 | 31 | 8 | 33.7 | 1" (DN25) | 20 | 30 |
| 6672006 | 28xR3/4" | 28.0 | DN25 | 32 | 8 | 26.9 | 3/4" (DN20) | 16 | 34 |
| 6672017 | 28xR1" | 28.0 | DN25 | 32 | 8 | 33.7 | 1" (DN25) | 19 | 34 |
| 6672028 | 28xR1 1/4" | 28.0 | DN25 | 31 | 7 | 42.4 | 1 1/4" (DN32) | 22 | 38 |
| 6672039 | 35xR1" | 35.0 | DN32 | 33 | 8 | 33.7 | 1" (DN25) | 19 | 35 |
| 6672041 | 35xR1 1/4" | 35.0 | DN32 | 33 | 8 | 42.4 | 1 1/4" (DN32) | 21 | 38 |
| 6672050 | 35xR1 1/2" | 35.0 | DN32 | 33 | 8 | 48.3 | 1 1/2" (DN40) | 21 | 43 |
| 6672061 | 42xR1 1/4" | 42.0 | DN40 | 41 | 5 | 42.4 | 1 1/4" (DN32) | 21 | 42 |
| 6672072 | 42xR1 1/2" | 42.0 | DN40 | 41 | 5 | 48.3 | 1 1/2" (DN40) | 21 | 43 |
| 6672083 | 54xR1 1/2" | 54.0 | DN50 | 47 | 6 | 48.3 | 1 1/2" (DN40) | 21 | 53 |
| 6672094 | 54xR2" | 54.0 | DN50 | 48 | 7 | 60.3 | 2" (DN50) | 26 | 60 |
| color | brass, bronze |
|---|---|
| materials | bronze, brass (CW617N, EN CC499K) |
| finishing | none |
| manufacturer | Aalberts integrated piping systems B.V. (VSH) |
| shape | straight, reducer |
| connection type | press (V), R - male thread gas conical (BSPT) |
| sealing | EPDM |
| product group | fittings |
|---|---|
| ETIM class | EC003024 Fitting with 2 connections |
| HS code | 74122000 |
| brand | VSH |
| series | SudoPress Copper |
| type | SP4243GV |
| UNSPS | 40172507 |
SDS-VSH_SudoPress_Copper_brass link to sheet |
download | |
SDS-VSH_SudoPress_Copper_gunmetal link to sheet |
download | |
 SP4243GV image |
jpg | download |
SudoPress Copper DVGW Water certifications |
download | |
SudoPress Copper WRAS certifications |
download | |
SudoPress Koper KIWA certifications |
download | |
VSH SudoPress Copper 15-54mm RISE ENG certifications |
download | |
VSH SudoPress Copper Avis Technique certifications |
download | |
VSH SudoPress Copper-ACS certifications |
download | |
VSH SudoPress TSU certifications |
download | |
VSHSudoPressRVS-RG_SVGW_W15-54D certifications |
download | |
 Diagram diagram |
png | download |
VSH SudoPress Copper 15-54mm RISE SE certifications |
download | |
VSH SudoPress RVS-bronze SVGW Water 15-54mm (FR) certifications |
download | |
VSH SudoPress instructions installation- & maintenance document |
download |
| label | value |
|---|---|
| ETIM class | EC003024 Fitting with 2 connections |
| Surface protection connection 1 | Untreated |
| Surface treatment connection 1 | Untreated |
| Surface protection connection 2 | Untreated |
| Surface treatment connection 2 | Untreated |
| Shape | Straight |
| Model | 1-part |
| Eccentric | No |
| System specific | Yes |
| Connection 1 | Press sleeve |
| Contour code connection 1 | V |
| Connection 2 | External thread conical BSPT-R (ISO 7-1 / EN 10226-1) |
| Flange compression class | PN 16 |
| Material sealing | Ethylene-propylene diene monomer rubber (EPDM) |
| With buffer stud | Yes |
| High tensile strength | Yes |
| Medium temperature (continuous) | -20°C - 110°C |
| Medium temperature (continuous) (imperial) | -4°F - 230°F |
| Max. operating pressure at 20 °C | 16bar |
| Max. operating pressure at 20 °C (imperial) | 232.06psi |
| With sealing rings/gaskets | No |
| Capped | No |
| With connection indicator | Yes |
| With drain valve | No |
| With de-aerator | No |
| FM quality mark | No |
| LPCB quality mark | No |
| ULC quality mark | No |
| UL quality mark | No |
| VdS quality mark | No |
| DVGW quality mark for gas | No |
| Certified according to NF 545 | No |
| Gastec QA mark | No |
| KOMO certified | No |
| item number | description | |
|---|---|---|
 |
