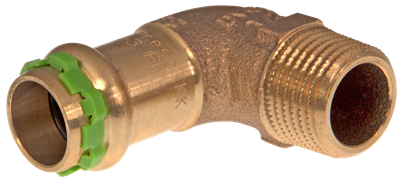

VSH SudoPress Copper angle adapter 90° (press x male thread)

group: SP4092GV

The VSH SudoPress SP4092GV is a 90° elbow with a press and a male thread end. By using VSH SudoPress in your piping installation you can install in a quick, easy and clean way. VSH SudoPress provides a piping system that can be used in the most diverse situations.

  • double safety through Visu-Control® and Leak Before Pressed function
  • provided with all relevant approvals
  • clear identification on fitting of material and dimension
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

potable water

potable water

heating

heating

cooling

cooling

compressed air

compressed air

solar energy

solar energy

vacuum

vacuum

segments

commercial building

commercial building

industry

industry

shipbuilding

shipbuilding

approvals

ACS

ACS

DVGW Wasser

DVGW Wasser

QB (CSTBat)

QB (CSTBat)

RISE

RISE

item number

size

d1

DN1

l1

z1

d2

DN2

l2

item number

6673293

size

15xR1/2"

d1

15.0

DN1

DN12

l1

43

z1

21

d2

21.3

DN2

1/2" (DN15)

l2

35

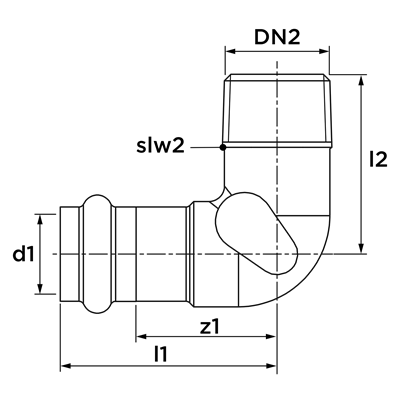

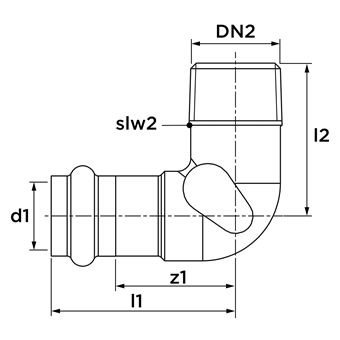

technical drawing for product

characteristics

color

bronze

materials

bronze (EN CC499K)

finishing

none

manufacturer

Aalberts integrated piping systems B.V. (VSH)

shape

Bend (90º)

connection type

press (V), R - male thread gas conical (BSPT)

sealing

EPDM

general

product group

fittings

ETIM class

EC003024 Fitting with 2 connections

HS code

74122000

brand

VSH

series

SudoPress Copper

type

SP4092GV

UNSPS

40172807

SCIP

9c667905-838e-436f-9f23-94980e0c8c97

label

value

label

Material connection 1

value

Bronze

label

Material quality connection 1

value

CuSn5Zn5Pb2

label

Surface protection connection 1

value

Untreated

label

Surface treatment connection 1

value

Untreated

label

Material connection 2

value

Bronze

label

Material quality connection 2

value

CuSn5Zn5Pb2

label

Surface protection connection 2

value

Untreated

label

Surface treatment connection 2

value

Untreated

label

Shape

value

Bend

label

Model

value

1-part

label

Bend angle

value

90°

label

Bend radius

value

19mm

label

Bend radius (imperial)

value

0.75"

label

Reducing

value

No

label

Eccentric

value

No

label

System specific

value

Yes

label

Nominal diameter connection 1

value

DN 12

label

Outer pipe diameter connection 1

value

15mm

label

Outer pipe diameter connection 1 (imperial)

value

0.59"

label

Wall thickness, connection 1

value

1.35mm

label

Connection 1

value

Press sleeve

label

Contour code connection 1

value

V

label

Nominal diameter connection 2

value

1/2 inch (15)

label

Outer pipe diameter connection 2

value

21.3mm

label

Outer pipe diameter connection 2 (imperial)

value

0.84"

label

Connection 2

value

External thread conical BSPT-R (ISO 7-1 / EN 10226-1)

label

Main colour fitting

value

Bronze

label

Flange compression class (PN)

value

PN 16

label

Material sealing

value

Ethylene-propylene diene monomer rubber (EPDM)

label

With buffer stud

value

Yes

label

High tensile strength

value

Yes

label

Length

value

54mm

label

Length of connection 1

value

43mm

label

Length of connection 1 (imperial)

value

1.69"

label

Working length connection 1

value

21mm

label

Working length connection 1 (imperial)

value

0.83"

label

Length of connection 2

value

35mm

label

Length of connection 2 (imperial)

value

1.38"

label

Medium temperature (continuous)

value

-20°C - 110°C

label

Medium temperature (continuous) (imperial)

value

-4°F - 230°F

label

Max. operating pressure at 20 °C

value

16bar

label

Max. operating pressure at 20 °C (imperial)

value

232.06psi

label

With sealing rings/gaskets

value

No

label

Capped

value

No

label

With connection indicator

value

Yes

label

With drain valve

value

No

label

With de-aerator

value

No

label

FM quality mark

value

No

label

LPCB quality mark

value

No

label

ULC quality mark

value

No

label

UL quality mark

value

No

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

Yes

label

Certified according to NF 545

value

No

label

KIWA certified

value

No

label

Gastec QA mark

value

No

label

KOMO certified

value

No

label

Gastec QA - AR 214 (H2)

value

No
