VSH SmartPress FullFlow ball valve HNBR (2 x press)

code

size

dimensions

weight

packaging

gtin

code

123460281

size

1/2"

dimensions

132x34x88 mm

weight

0.3 kg

packaging

bag (1 pce)

gtin

08711985530827

code

123460282

size

3/4"

dimensions

138x40x94 mm

weight

0.41 kg

packaging

bag (1 pce)

gtin

08711985530834

code

123460283

size

1"

dimensions

169x49x113 mm

weight

0.77 kg

packaging

bag (1 pce)

gtin

08711985530841

code

123460284

size

1 1/2"

dimensions

261x70x134 mm

weight

1.71 kg

packaging

bag (1 pce)

gtin

08711985530858

code

123460285

size

2"

dimensions

286x89x152 mm

weight

2.65 kg

packaging

bag (1 pce)

gtin

08711985530865

code

size

d1

DN1

l1

z1

d2

DN2

l2

z2

code

123460281

size

1/2"

d1

21.3

DN1

1/2" (DN15)

l1

57

z1

31

d2

21.3

DN2

1/2" (DN15)

l2

57

z2

31

code

123460282

size

3/4"

d1

26.9

DN1

3/4" (DN20)

l1

64

z1

37

d2

26.9

DN2

3/4" (DN20)

l2

64

z2

37

code

123460283

size

1"

d1

33.7

DN1

1" (DN25)

l1

75

z1

45

d2

33.7

DN2

1" (DN25)

l2

75

z2

45

code

123460284

size

1 1/2"

d1

48.3

DN1

1 1/2" (DN40)

l1

103

z1

69

d2

48.3

DN2

1 1/2" (DN40)

l2

103

z2

69

code

123460285

size

2"

d1

60.3

DN1

2" (DN50)

l1

119

z1

79

d2

60.3

DN2

2" (DN50)

l2

119

z2

79

product info

item

VSH SmartPress FullFlow ball valve HNBR (2 x press)

item number with gtin

SM500H-VSH

manufacturer

BROEN

weight

2.65 kg

dimensions

286x89x152 mm

characteristics

color

silver

materials

stainless steel (Stainless steel 316L (1.4404))

finishing

none

shape

straight

connection type

press (V)

sealing

HNBR

technical

max operating pressure liquid

20.68 bar

min. medium temperature

-30 °C

max medium temperature

100 °C

peak medium temperature

110 °C

general

product group

afsluiters (ball valves)

ETIM class

EC011343 Ball valve

HS code

84818081

brand

VSH

series

SmartPress

type

SM500H

UNSPS

40141607

installation- & maintenance document | pdf

VSH SmartPress installation instructions

certifications | pdf

Certificate Apollo SmartPress CRN Ontario Valves

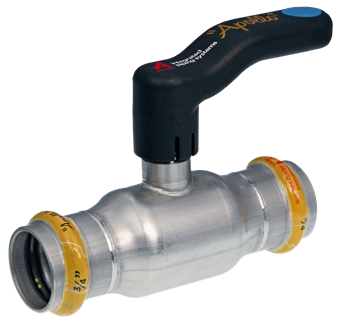

image | png

SM500H

diagram | png

Diagram

label

value

label

etim-class

value

EC011343 Ball valve

label

Surface protection housing

value

None

label

Connection 1

value

Press sleeve

label

With coupling connection 1

value

No

label

Contour code connection 1

value

V

label

Connection 2

value

Press sleeve

label

With coupling connection 2

value

No

label

Contour code connection 2

value

V

label

With drain valve

value

No

label

With drain possibility (connection)

value

No

label

With non-return valve

value

No

label

With filter

value

No

label

With thermometer

value

No

label

Model

value

Straight

label

With insulation shell

value

No

label

FM quality mark

value

No

label

UL quality mark

value

No

label

ULC quality mark

value

No

label

LPCB quality mark

value

No

label

Medium temperature (continuous)

value

-30°C - 100°C

label

Medium temperature (continuous) (imperial)

value

-22°F - 212°F

label

Medically clean

value

No

label

Grease-free

value

No

label

Housing construction

value

1-part

label

Angle of the valve

value

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

KIWA certified

value

No
