VSH SmartPress FullFlow ball valve FPM (2 x press)

group: SM500F-VSH

VSH SmartPress is an innovative press connection system designed for joining 1/2"-2" IPS ASTM A312 schedule 5/10s stainless steel pipe (approved for use with both AISI type 304/304L and 316/316L stainless). The VSH SmartPress product range consists of V-profile (type ASP) press fittings and valves produced from AISI 316L stainless steel alloy that are fitted with patented sealing elements for a guaranteed safe, leak-tight and lasting connection. The VSH SmartPress system offers end-users a complete solution with maximum coverage of commercial and industrial applications requiring HNBR, EPDM, or FPM sealing elements.
  • complete range of AISI 316 fittings and valves
  • 500 psi operating pressure
  • color-coded Visu-control® foil for material/dimensions identification and visual press indication
  • patented sealing element design with Leak Before Pressed technology for added safety and optimized installation
  • clear identification of sealing element and dimensions
  • quick installation thanks to pre-marked insertion depth
read more
read less
if the download did not start automatically, click here

PDF generation failed, please try again later

applications

heating

heating

cooling

cooling

compressed air

compressed air

segments

commercial building

commercial building

industry

industry

approvals

CRN

CRN

item number

size

d1

DN1

l1

z1

d2

DN2

l2

z2

item number

123460291

size

1/2"

d1

21.3

DN1

1/2" (DN15)

l1

57

z1

31

d2

21.3

DN2

1/2" (DN15)

l2

57

z2

31

item number

123460292

size

3/4"

d1

26.9

DN1

3/4" (DN20)

l1

64

z1

37

d2

26.9

DN2

3/4" (DN20)

l2

64

z2

37

item number

123460293

size

1"

d1

33.7

DN1

1" (DN25)

l1

75

z1

45

d2

33.7

DN2

1" (DN25)

l2

75

z2

45

item number

123460294

size

1 1/2"

d1

48.3

DN1

1 1/2" (DN40)

l1

103

z1

69

d2

48.3

DN2

1 1/2" (DN40)

l2

103

z2

69

item number

123460295

size

2"

d1

60.3

DN1

2" (DN50)

l1

119

z1

79

d2

60.3

DN2

2" (DN50)

l2

119

z2

79

technical drawing for product

characteristics

color

silver

materials

stainless steel (Stainless steel 316L (1.4404))

finishing

none

shape

straight (0º)

connection type

press (V)

sealing

FPM

general

product group

valves (ball valves)

ETIM class

EC011343 Ball valve

HS code

84818081

brand

VSH

series

SmartPress

type

SM500F

UNSPS

40141607

technical

max operating pressure liquid

20.68 bar

min. medium temperature

-20 °C

max medium temperature

200 °C

peak medium temperature

230 °C

Kvs-value

value depends on the item view items

installation- & maintenance document | pdf

VSH SmartPress installation instructions

certifications | pdf

Certificate Apollo SmartPress CRN Ontario Valves

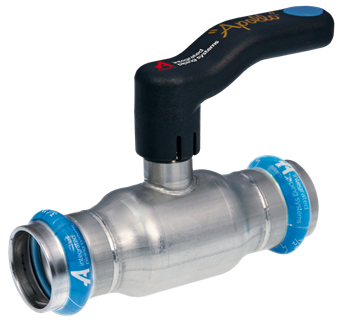

image for SM500F

image | png

SM500F

image for Diagram

diagram | png

Diagram

label

value

label

ETIM class

label

Surface protection housing

value

None

label

Connection 1

value

Press sleeve

label

With coupling connection 1

value

No

label

Contour code connection 1

value

V

label

Connection 2

value

Press sleeve

label

With coupling connection 2

value

No

label

Contour code connection 2

value

V

label

Sealing

value

Fluorelastomer rubber (FPM/FKM)

label

With drain valve

value

No

label

With drain possibility (connection)

value

No

label

With non-return valve

value

No

label

With filter

value

No

label

With thermometer

value

No

label

Model

value

Straight

label

With insulation shell

value

No

label

FM quality mark

value

No

label

UL quality mark

value

No

label

ULC quality mark

value

No

label

LPCB quality mark

value

No

label

Medium temperature (continuous)

value

-20°C - 200°C

label

Medium temperature (continuous) (imperial)

value

-4°F - 392°F

label

Medically clean

value

No

label

Grease-free

value

No

label

Housing construction

value

1-part

label

Angle of the valve

value

label

VdS quality mark

value

No

label

DVGW quality mark for gas

value

No

label

DVGW quality mark for water

value

No

label

KIWA certified

value

No
