VSH Shurjoint butterfly valve (gearbox) (2 x groove)

VSH Shurjoint butterfly valve (gearbox) (2 x groove)

group: SJ-300F

VSH Shurjoint grooved pipe systems consist of a wide range of groove couplings, fittings and valves for heating, compressed air and industry. VSH Shurjoint is less labor intensive, safer, cleaner and delivers consistent connection quality.

  • VSH Shurjoint can be perfectly combined with other VSH systems such as VSH XPress, VSH SudoPress and VSH PowerPress
  • the 'Aalberts integrated piping systems' range covers a fully integrated system from 6 mm to 104 ”

applications

heating

heating

cooling

cooling

compressed air

compressed air

show all
show less

solutions

building installations

building installations

industry

industry

show all
show less

approvals

no approvals available

item number size weight dimensions packaging gtin
1V30F0030001 88.9 (DN80) 8.6 kg 209x92x325 mm carton (2 pce) 04710574447489
1V30F0065001 168.3 (DN150) 13.7 kg 249x172x421 mm bag (1 pce) 08711985481433
item number size d1 DN1 d2 DN2
1V30F0030001 88.9 (DN80) 88.9 DN80 88.9 DN80
1V30F0065001 168.3 (DN150) 168.3 DN150 168.3 DN150

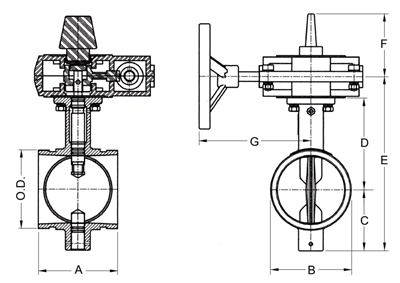

drawing for product
color black
materials cast iron (ASTM A536 65-45-12)
finishing varnished
manufacturer Shurjoint
shape straight
connection type groove (fitting)
product group valves (butterfly valve)
ETIM class EC010910 Butterfly valve
HS code 84818085
brand VSH
series Shurjoint
type SJ-300F
UNSPS 40141619
label value
ETIM class EC010910 Butterfly valve
Surface protection Coated
Connections Groove
Medium temperature (continuous) -34°C - 110°C
Medium temperature (continuous) (imperial) -29.2°F - 230°F
FM quality mark No
UL quality mark No
ULC quality mark No
LPCB quality mark No
VdS quality mark No
KIWA certified No
Gastec QA mark No
